Product Description

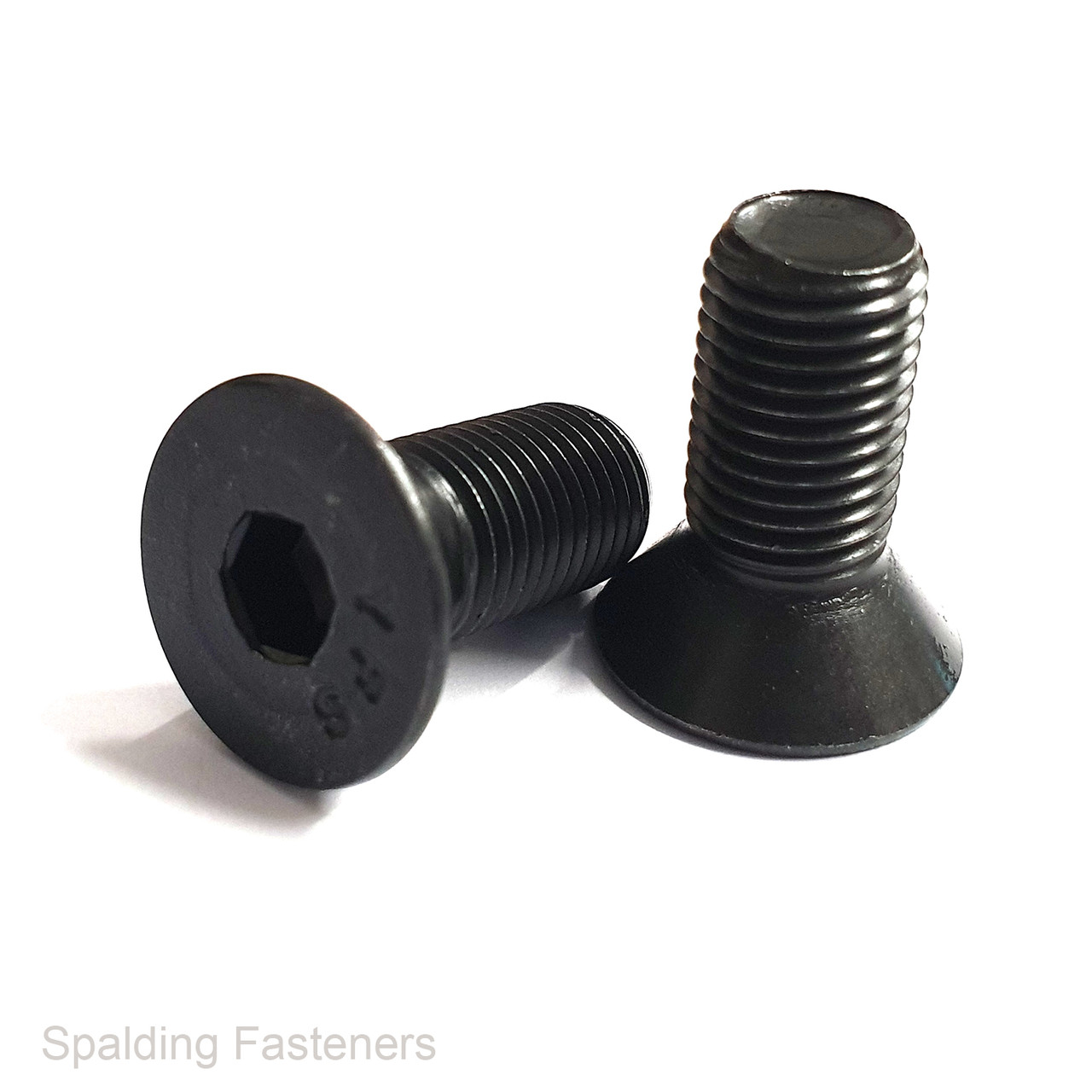

7/16″ UNC High Tensile Countersunk Socket Screws – Self Colour
7/16″-14 UNC countersunk socket screws manufactured from high tensile alloy steel with a self colour finish. The flat countersunk head provides a flush finish when installed in a correctly prepared matching countersink.
These imperial coarse-thread screws feature an internal hexagon drive for use with a 1/4″ Allen key or hex bit.
Specifications
| Product type | Countersunk socket screw / flat head socket screw |
|---|---|
| Nominal thread diameter | 7/16″ — 11.1125mm |
| Thread type | UNC — Unified National Coarse, right-hand |
| Threads per inch | 14 TPI |
| Material | High tensile alloy steel |
| Finish | Self colour |
| Head style | Flat countersunk |
| Nominal countersunk angle | 82° |
| Drive | Internal hexagon |
| Allen key size | 1/4″ |
| Length measurement | Overall length, including the head |
| Dimensional standard | ASME B18.3 |
| Material specification | ASTM F835 |
Key Features
- High tensile alloy steel construction.
- 7/16″ UNC thread with 14 threads per inch.
- Countersunk head for flush installation in a matching recess.
- 1/4″ internal hexagon drive.
- Self colour finish.
Typical Applications
Machinery, tooling, brackets, panels and engineering repairs requiring an imperial UNC socket screw with a flush countersunk head.
Measuring and Installation
Measure screw length from the top of the countersunk head to the tip. Match the 7/16″-14 UNC thread to the mating nut or tapped hole and check that the countersink suits the 82° head.
Fully engage the 1/4″ hex key or bit before tightening. Use the torque and thread engagement specified for the assembly.
Ordering
Select the required overall screw length and pack quantity from the available options before adding to your basket.
Standards
- ASME B18.3 — imperial hexagon socket screw dimensions.
- ASTM F835 — alloy steel socket button and flat countersunk head cap screws.
- ASME B1.1 — Unified inch thread reference.
