Product Description
Imperial HSS Hexagon Die Nut Sets – UNF, UNC, BSF or BSW

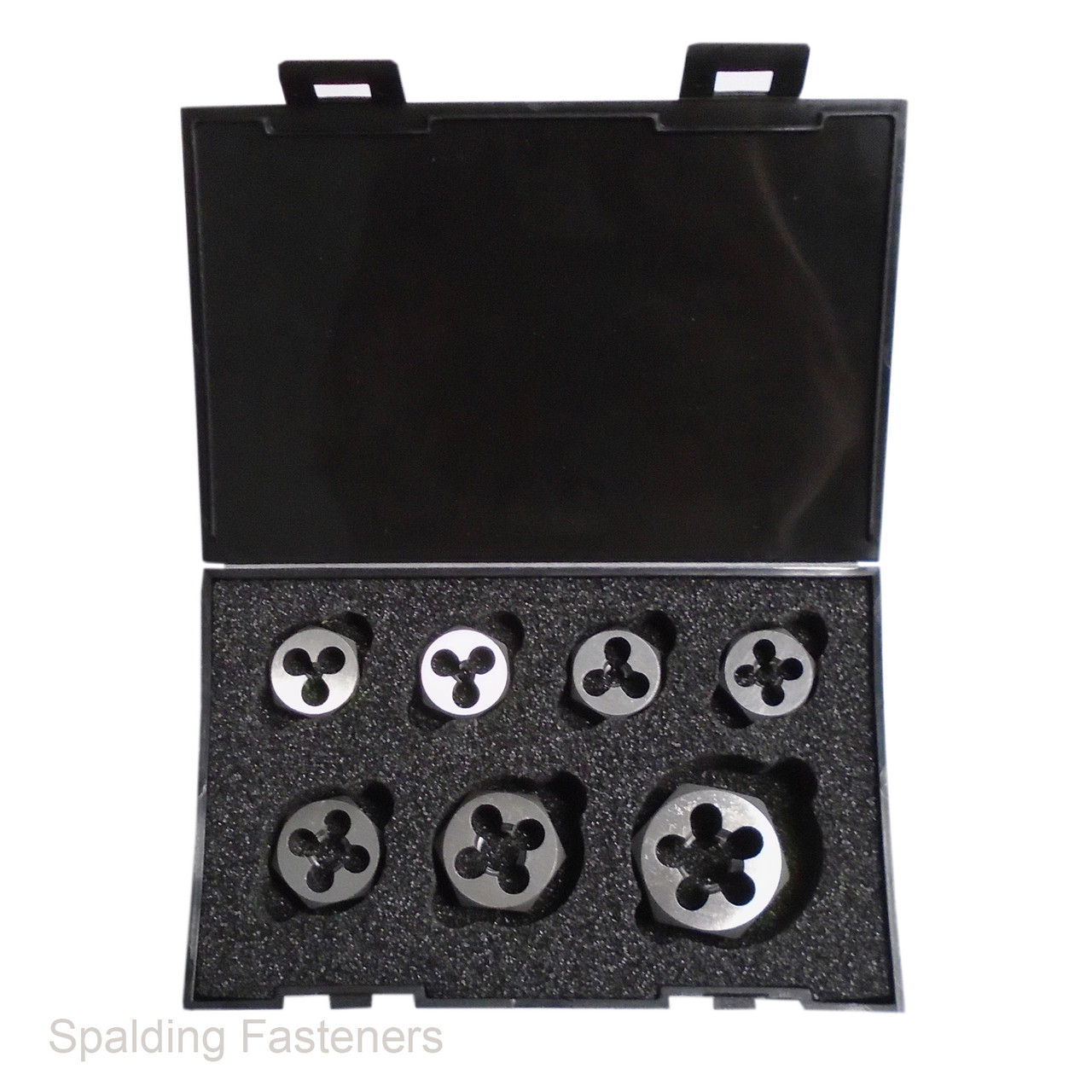

UK-made high speed steel hexagon die nuts supplied in a case, with a choice of UNF, UNC, BSF or BSW threads. Each set covers five nominal thread diameters: 1/4″, 5/16″, 3/8″, 7/16″ and 1/2″.
Each case contains one thread system only. Choose the required thread type from the product options; the case does not contain a mixture of UNF, UNC, BSF and BSW dies.
Specifications
| Product type | Imperial hexagon die nut set |
|---|---|
| Material | High speed steel — HSS |
| Country of manufacture | United Kingdom |
| Thread options | UNF, UNC, BSF or BSW |
| Sizes in each set | 1/4″, 5/16″, 3/8″, 7/16″ and 1/2″ |
| External shape | Hexagon |
| Packaging | Case |
Sizes and Thread Pitches
| Nominal Diameter | UNF TPI | UNC TPI | BSF TPI | BSW TPI |
|---|---|---|---|---|
| 1/4″ | 28 | 20 | 26 | 20 |
| 5/16″ | 24 | 18 | 22 | 18 |
| 3/8″ | 24 | 16 | 20 | 16 |
| 7/16″ | 20 | 14 | 18 | 14 |
| 1/2″ | 20 | 13 | 16 | 12 |
TPI means threads per inch. Read the column for your selected set. Matching diameter and TPI alone does not make different thread systems interchangeable; the thread profile must also match.
Thread Options Explained
- UNF — Unified National Fine.
- UNC — Unified National Coarse.
- BSF — British Standard Fine.
- BSW — British Standard Whitworth.
Key Features
- High speed steel construction.
- Manufactured in the UK.
- Five imperial diameters in each selected thread system.
- Hexagon bodies for use with a suitably fitting holder or spanner.
- Supplied in a case for convenient storage.
Typical Applications
External thread cutting and restoration work on compatible materials, including workshop maintenance, machinery repairs and restoration projects using imperial threads.
Use
Identify the thread system, diameter and pitch before selecting a die nut. Secure the workpiece, align the tool squarely and use an appropriate cutting lubricant. Turn steadily and clear chips regularly. Avoid forcing the tool onto an incorrectly sized or mismatched thread.
Ordering
Choose UNF, UNC, BSF or BSW. Each case contains the five listed diameters in your selected thread system.
Standards
No specific DIN, ISO or BS manufacturing standard has been verified for these die nut sets.
