Product Description

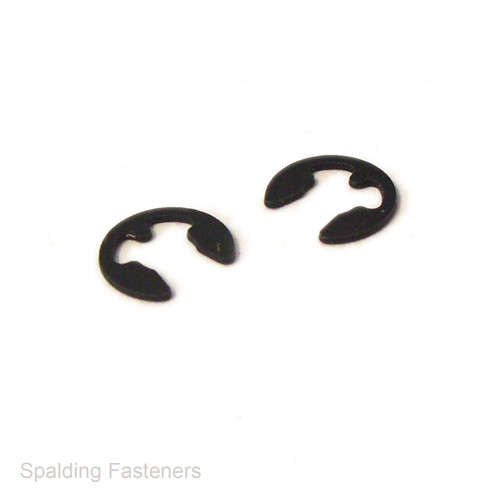

Imperial Steel E-Clips – Shaft Retaining Rings
Imperial steel E-clips for retaining bearings, gears, pulleys and other components on grooved shafts. The E-shaped profile allows radial installation from the side of the shaft.
Specifications
| Product type | E-clip / external shaft retaining ring |
|---|---|
| Material | Steel |
| Finishes | Self colour or zinc plated, depending on size |
| Size system | Imperial / inch |
| Size selection | Sold by the shaft size the clip fits |
| Installation | Radially into a shaft groove |
Available Sizes and Finishes
| Shaft Size | Finish |
|---|---|
| 1/8" | Self colour steel |
| 3/16" | Zinc plated steel |
| 7/32" | Zinc plated steel |
| 1/4" | Self colour steel |
| 5/16" | Zinc plated steel |
| 3/8" | Zinc plated steel |
| 7/16" | Self colour steel |
| 1/2" | Zinc plated steel |
| 5/8" | Zinc plated steel |
Selection and Installation
Select by shaft fit, rather than the clip's outside diameter. Check the shaft groove dimensions and ensure the clip seats fully without distortion.
Pack Sizes
Choose packs of 1, 5, 10, 20, 50 or 100 from the options above.
Standards
No specific DIN, BS, ISO or ASME manufacturing standard has been verified for this imperial range.
