Metric Grade 10.9 Zinc Plated Non-Serrated Flange Bolts DIN 6921

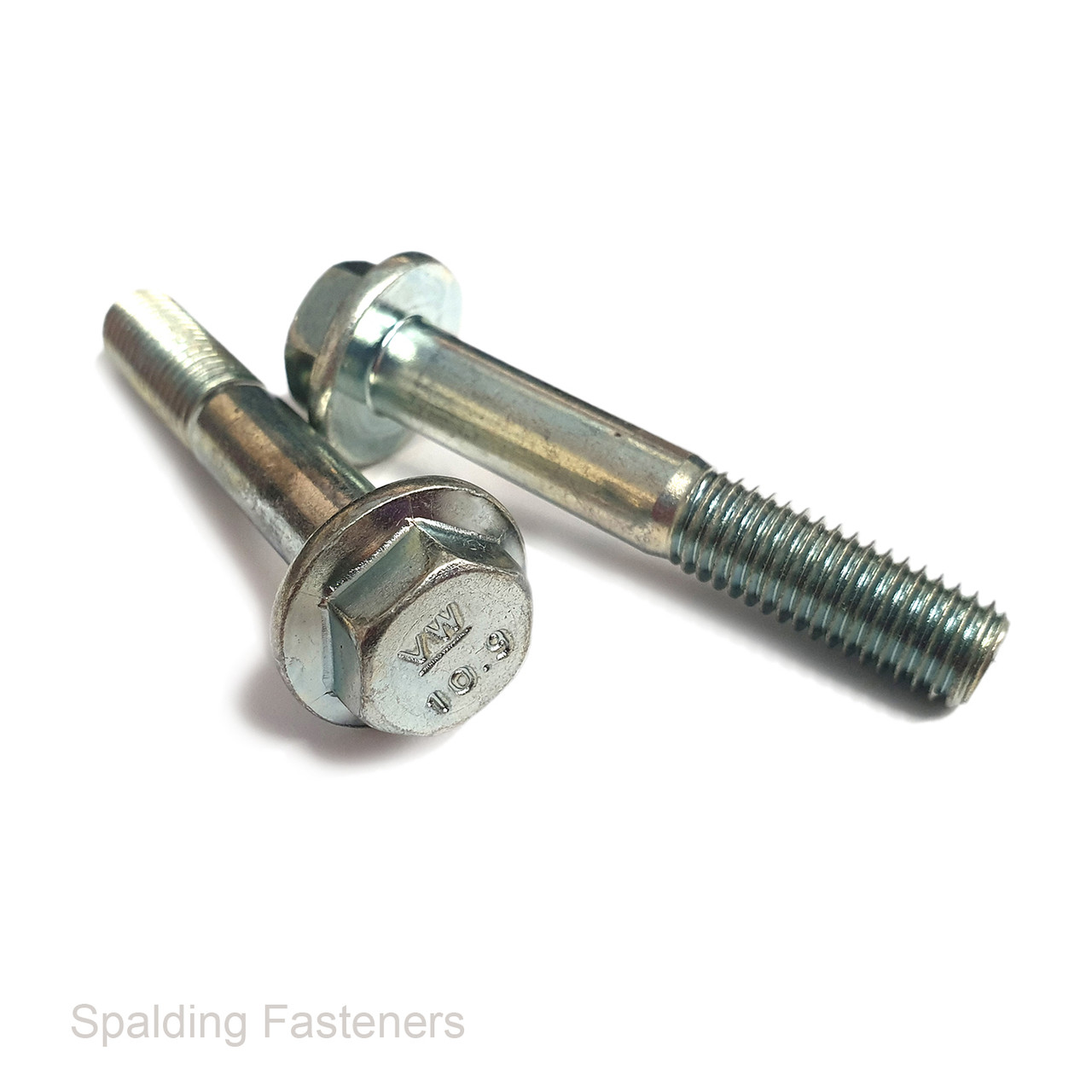

Grade 10.9 high tensile steel hexagon flange bolts with a zinc plated finish. These DIN 6921 bolts are partially threaded and feature an integral flange with a smooth, non-serrated bearing face.
The flange provides a wider bearing surface beneath the head, while the plain shank suits joints requiring a partially threaded bolt.
Specifications
| Material | High tensile steel |
|---|---|
| Property class | 10.9 |
| Finish | Zinc plated |
| Standard | DIN 6921 |
| Head style | Hexagon with integral flange |
| Flange underside | Smooth / non-serrated |
| Thread type | Metric coarse |
| Thread coverage | Partially threaded with plain shank |
Available Sizes and Lengths
| Thread Size | Pitch | Available Lengths |
|---|---|---|
| M6 | 1.0mm | 25 and 30mm |
| M8 | 1.25mm | 35 and 50mm |
| M10 | 1.5mm | 60mm |
| M12 | 1.75mm | 45, 50, 60, 70 and 80mm |
| M16 | 2.0mm | 70mm |
Length is measured from beneath the flange to the end of the bolt.
Head Dimensions
| Thread Size | Spanner Size | Flange Diameter | Head Height |
|---|---|---|---|
| M6 | 10mm | 14.2mm | 6.6mm |
| M8 | 13mm | 18mm | 8.1mm |
| M10 | 15mm | 22.3mm | 9.2mm |
| M12 | 16mm | 26.6mm | 11.5mm |
| M16 | 21mm | 35mm | 14.4mm |
Dimensions are guides. Check critical clearances before ordering.
Selection and Installation
Match the diameter, pitch, length and strength class to the assembly requirements. Check the plain shank and available thread engagement, and ensure the flange seats fully on the bearing surface. Tighten to the equipment manufacturer's specification.
Pack Sizes
Available individually or in packs of 5, 10, 20, 50 or 100. Select the required size and quantity from the options above.
Standards
DIN 6921 – hexagon flange bolts. Property class 10.9.

| A | B | C | D | E | F | G |
| M10 | 60mm | 26mm | 22.3mm | 9.2mm | 15mm | 1.5mm |
| M12 | 80mm | 30mm | 26.6mm | 11.5mm | 16mm | 1.75 |
| M12 | 45mm | 30mm | 26.6mm | 11.5mm | 16mm | 1.75 |
| M12 | 70mm | 30mm | 26.6mm | 11.5mm | 16mm | 1.75 |
| M12 | 50mm | 30mm | 26.6mm | 11.5mm | 16mm | 1.75 |
| M12 | 60mm | 30mm | 26.6mm | 11.5mm | 16mm | 1.75 |
| M16 | 70mm | 38mm | 35mm | 14.4mm | 21mm | 2mm |
| M6 | 25mm | 18mm | 14.2mm | 6.6mm | 10mm | 1mm |
| M6 | 30mm | 18mm | 14.2mm | 6.6mm | 10mm | 1mm |
| M8 | 50mm | 22mm | 18mm | 8.1mm | 13mm | 1.25 |
| M8 | 35mm | 22mm | 18mm | 8.1mm | 13mm | 1.25 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
