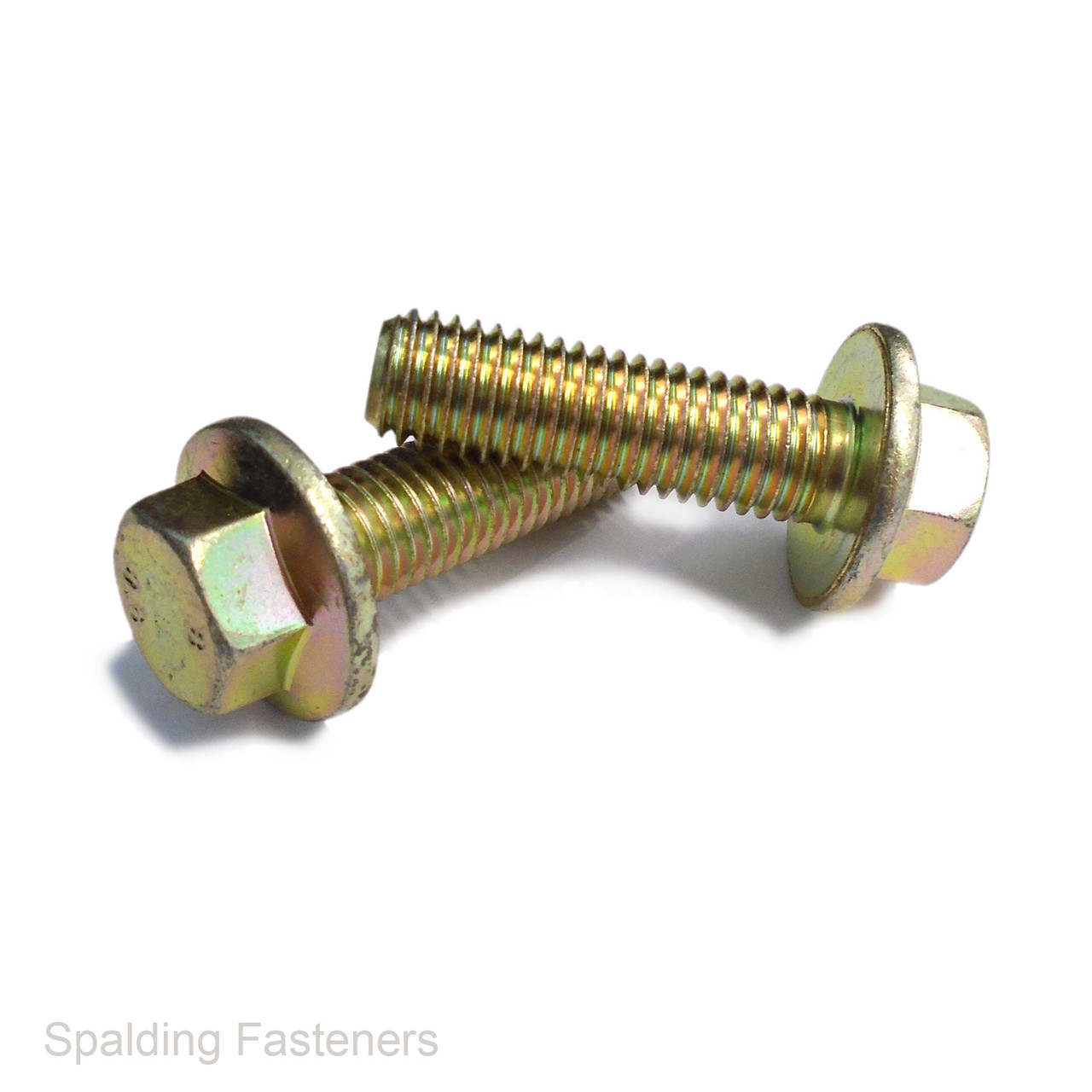

Metric 8.8 Non-Serrated Flange Set Screws – Yellow Zinc Plated DIN 6921
Grade 8.8 high tensile steel hexagon flange set screws with a yellow zinc plated finish. These fully threaded fixings feature an integral flange with a smooth, non-serrated underside, providing a wider bearing surface beneath the head.
Available in M6, M8, M10 and M12 metric coarse threads. Choose the required thread size, length and pack quantity from the available options.
Specifications
| Product type | Hexagon flange head set screw / fully threaded flange bolt |
|---|---|
| Material | High tensile steel |
| Property class | 8.8 |
| Finish | Zinc plated, yellow passivated |
| Head style | External hexagon with integral flange |
| Flange underside | Smooth, non-serrated |
| Thread type | Metric coarse, right-hand |
| Thread coverage | Fully threaded |
| Dimensional standard | DIN 6921 |
Thread Sizes and Head Dimensions
| Thread Size | Pitch (mm) | Spanner Size (mm) | Maximum Flange Diameter (mm) | Maximum Head Height (mm) |
|---|---|---|---|---|
| M6 | 1.00 | 10 | 14.2 | 6.6 |
| M8 | 1.25 | 13 | 18.0 | 8.1 |
| M10 | 1.50 | 15 | 22.3 | 9.2 |
| M12 | 1.75 | 16 | 26.6 | 11.5 |
All dimensions are in millimetres. Spanner size is measured across the hexagon flats. Screw length is measured from beneath the flange to the tip.
Key Features
- Grade 8.8 high tensile steel construction.
- Fully threaded for use with matching nuts or tapped holes.
- Integral flange spreads the clamping load over a wider area.
- Smooth flange underside without serrated teeth.
- Yellow zinc plated finish provides corrosion protection.
- External hexagon head for tightening with a spanner or socket.
Typical Applications
- Machinery and equipment assembly.
- Brackets, frames and general fabrication.
- Workshop maintenance and repairs.
- Assemblies requiring a fully threaded fixing with a broad bearing face.
Installation
Match the thread diameter and pitch to the mating nut or tapped hole. Check that the selected length provides suitable thread engagement and clearance. Tighten using the correct size spanner or socket and the torque specified for the assembly.
The non-serrated flange provides a smooth bearing face. Where the assembly requires resistance to loosening, use the locking method specified for the joint.
Ordering
Select the required thread size and length, then choose your pack quantity before adding to your basket.
Standards
- DIN 6921 – hexagon flange head dimensions.
- ISO 898-1 – mechanical property classification for Grade 8.8 steel fasteners.
