Product Description

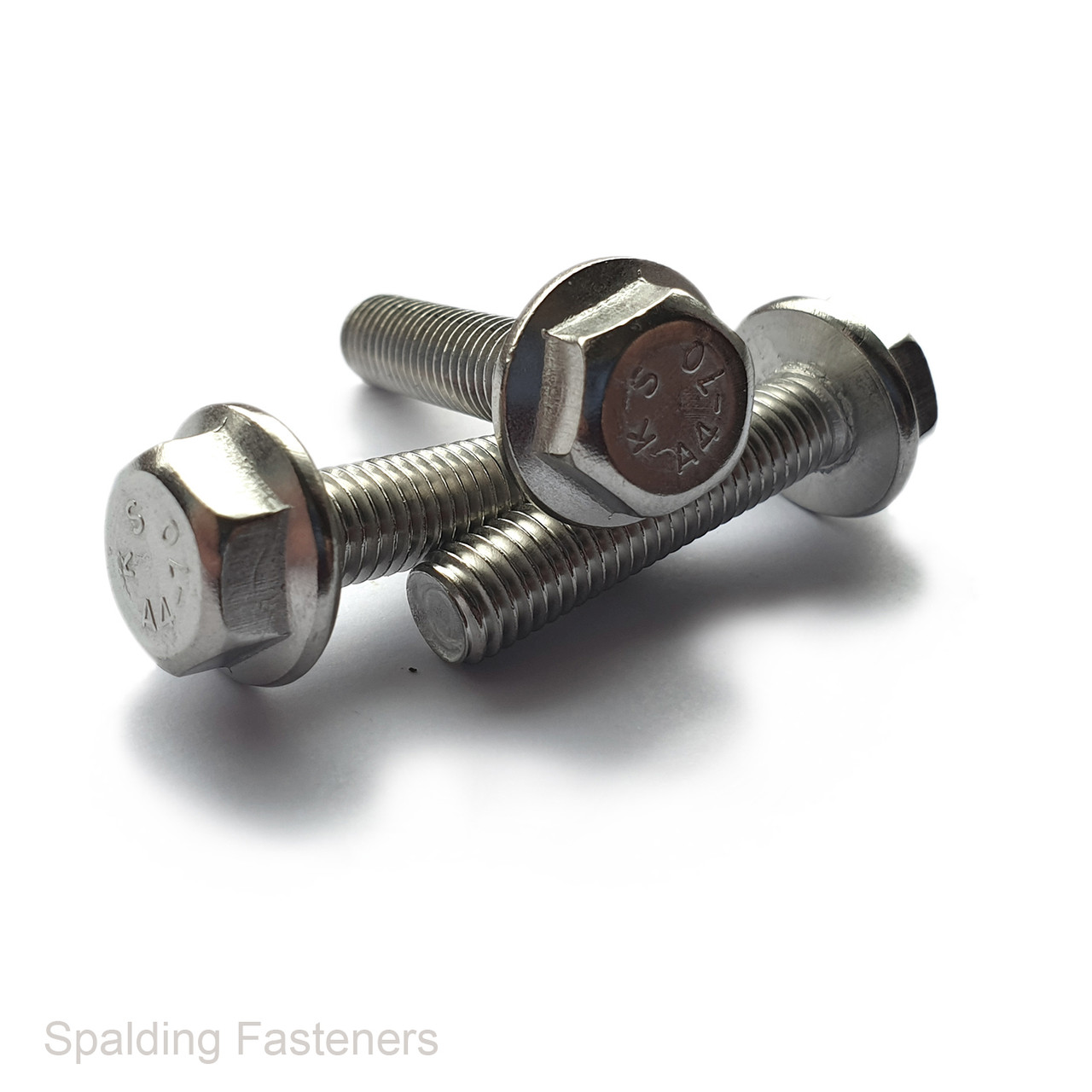

M10 A4-70 Stainless Steel Hexagon Flange Bolts – DIN 6921

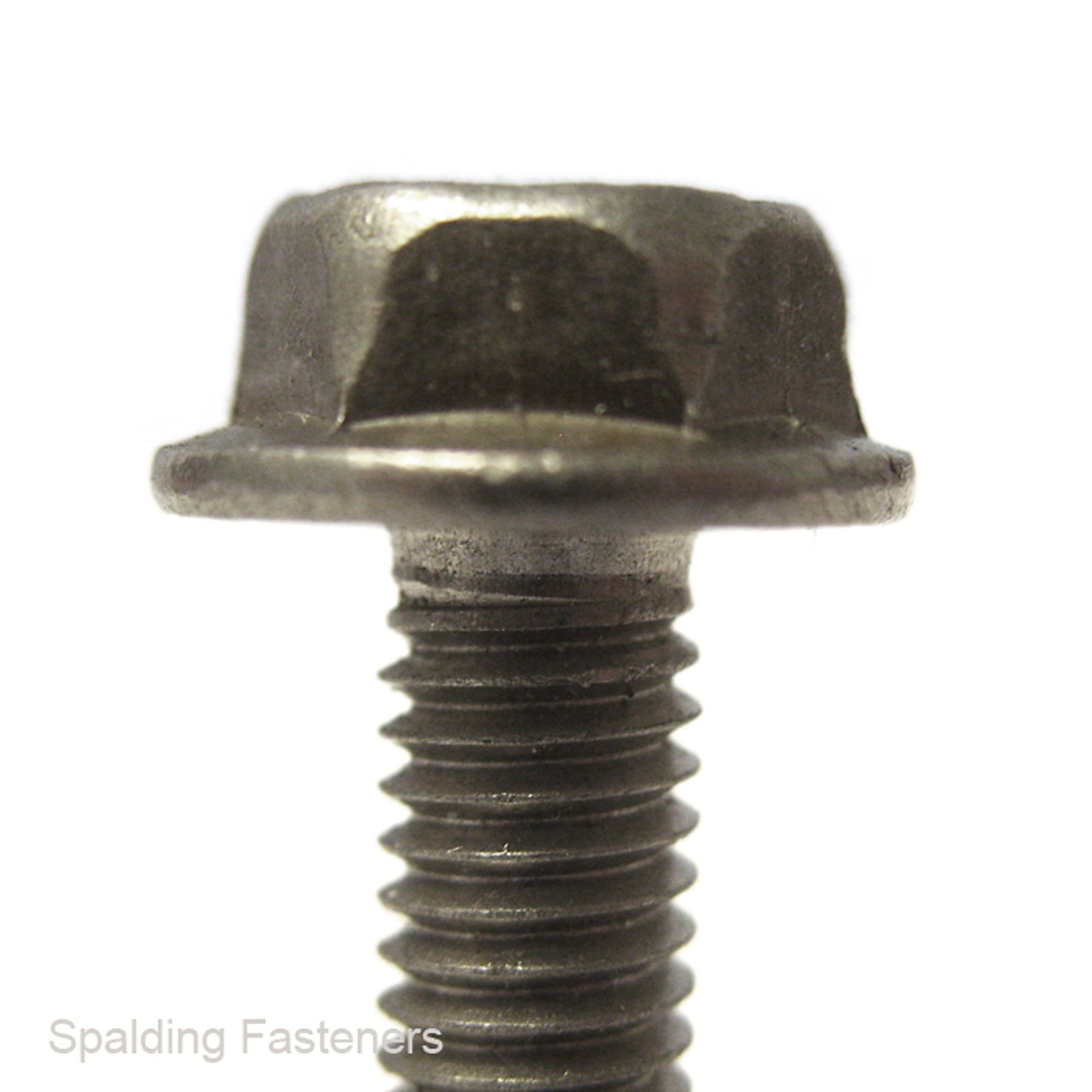

These M10 hexagon flange bolts are manufactured from A4-70 marine grade stainless steel for excellent corrosion resistance. They feature a standard M10 x 1.5mm metric coarse thread and a hexagon head with an integral non-serrated flange.
The smooth flange provides a broad bearing surface to distribute the clamping load. The hexagon head accepts a 15mm spanner or socket.
Product Specifications
- Thread size: M10
- Nominal thread diameter: 10mm
- Thread pitch: 1.5mm metric coarse
- Material: A4 marine grade stainless steel
- Property class: A4-70
- Head style: Hexagon head with integral flange
- Flange underside: Smooth, non-serrated
- Spanner size: 15mm
- Flange diameter: Approximately 22.3mm
- Overall head height: Approximately 9.2mm
- Length measurement: From beneath the flange to the tip
- Lengths and pack quantities: Choose from the available product options
Thread Coverage

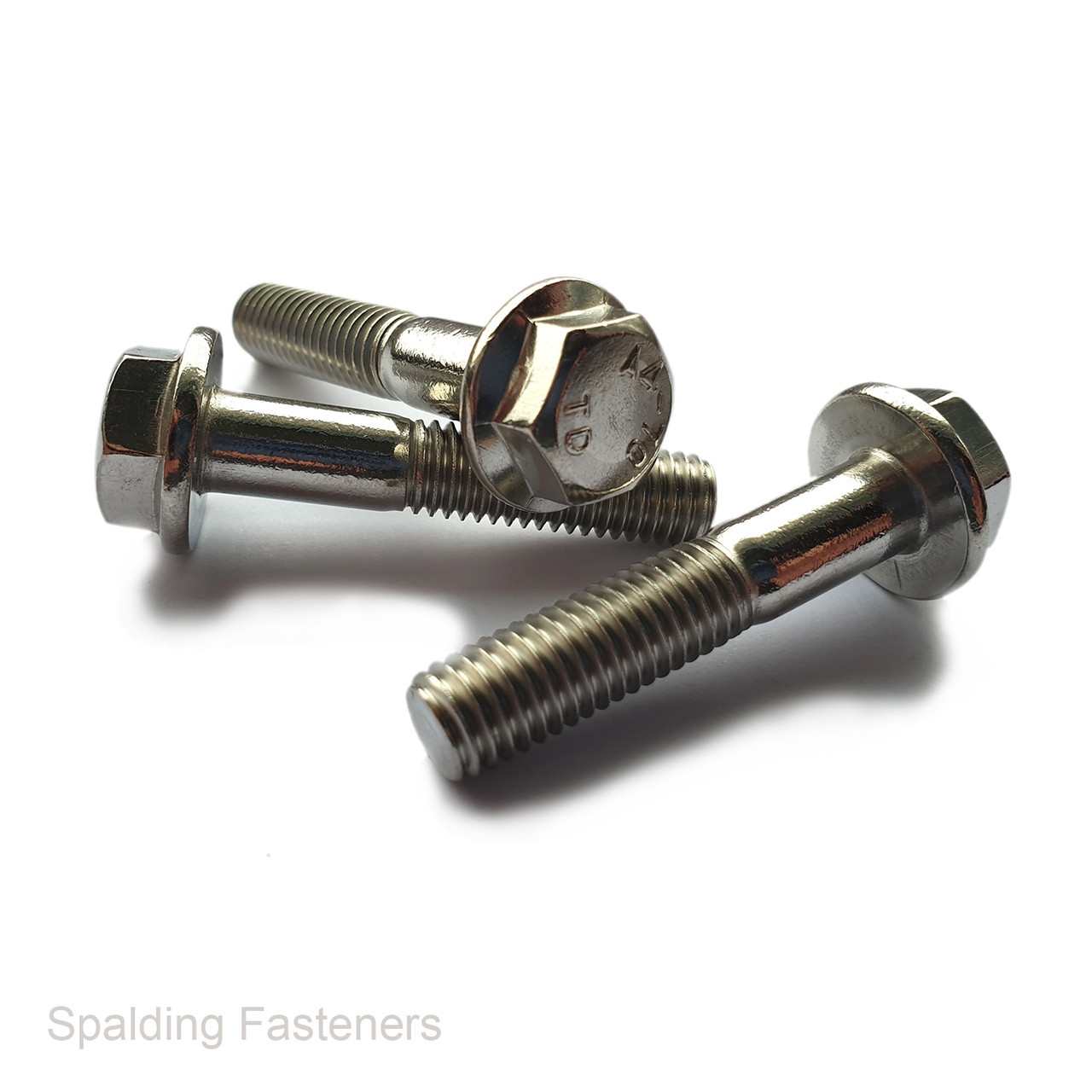

- 40mm, 45mm, 50mm and 60mm lengths: Part threaded, with an unthreaded shank beneath the head
- Other lengths in this listing: Fully threaded
Typical Applications
Suitable for brackets, equipment, machinery and general engineering assemblies requiring corrosion-resistant flange bolts. A4 stainless steel offers improved resistance to salt exposure compared with A2 stainless steel, making it useful for suitable coastal and marine applications.
Installation
Use with a matching M10 x 1.5mm nut or tapped hole. For part threaded lengths, check that the shank suits the components being joined and that sufficient thread engagement remains.
Tighten using a correctly fitting 15mm spanner or socket. Follow the assembly manufacturer's torque requirements and use a suitable stainless steel anti-seize lubricant where appropriate to help reduce thread galling.
Standards
- DIN 6921: Hexagon bolts with flange
