Product Description

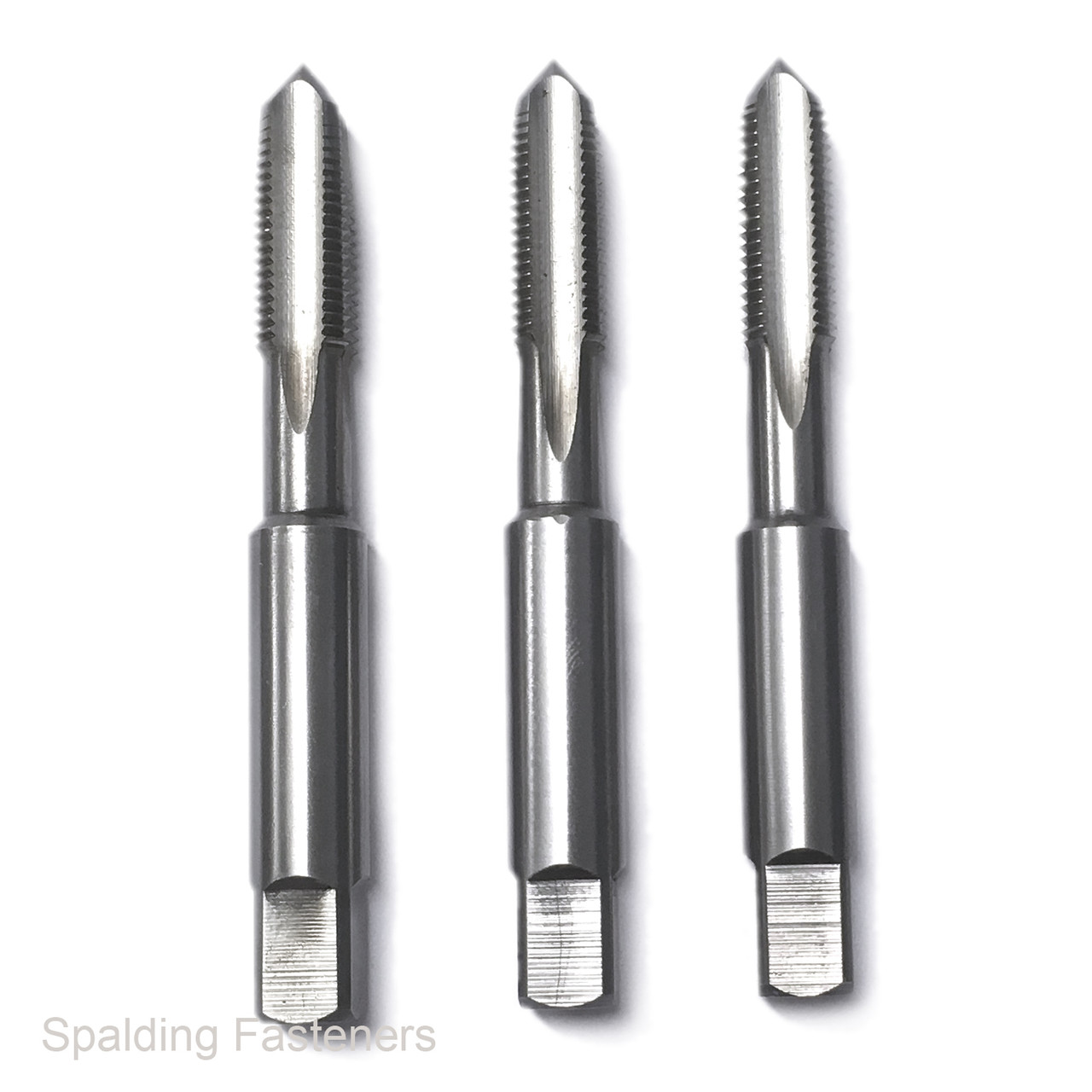

Metric fine high speed steel straight flute taps for creating internal fine pitch metric threads.
These high quality HSS taps are made in the UK and are suitable for engineering, automotive, machinery, workshop, maintenance and repair use. Straight flute taps are commonly used for hand tapping through holes and blind holes in suitable materials, with taper, intermediate and bottoming options available depending on the stage of the thread cutting process.
- Thread form: Metric fine pitch
- Material: High speed steel / HSS
- Flute type: Straight flute
- Use: Creating new internal threads
- Thread sizes available: M3 x 0.35 through to M24 x 2
- Pass options: 1st taper, 2nd intermediate, 3rd bottoming or set of all 3
- Made in the UK
- Complete sets supplied in a plastic case; singles packed in plastic bags
| Thread Size | Pitch | Thread Form | Tap Type | Pass Options |
|---|---|---|---|---|
| M3 x 0.35 | 0.35mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M4 x 0.5 | 0.5mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M5 x 0.5 | 0.5mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M6 x 0.75 | 0.75mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M7 x 0.75 | 0.75mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M8 x 1 | 1.0mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M9 x 1 | 1.0mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M10 x 1 | 1.0mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M10 x 1.25 | 1.25mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M12 x 1 | 1.0mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M12 x 1.25 | 1.25mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M12 x 1.5 | 1.5mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M14 x 1 | 1.0mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M14 x 1.25 | 1.25mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M14 x 1.5 | 1.5mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M16 x 1 | 1.0mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M16 x 1.5 | 1.5mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M18 x 1.5 | 1.5mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M20 x 1 | 1.0mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M20 x 1.5 | 1.5mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M20 x 2 | 2.0mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M22 x 1.5 | 1.5mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
| M24 x 2 | 2.0mm | Metric Fine | HSS Straight Flute Tap | 1st, 2nd, 3rd or Set |
Please note: Metric fine threads are specified by pitch in millimetres rather than threads per inch.
Please note: Specifications are intended as a guide only. If dimensions are critical to your project, please check with us before ordering.
