Product Description

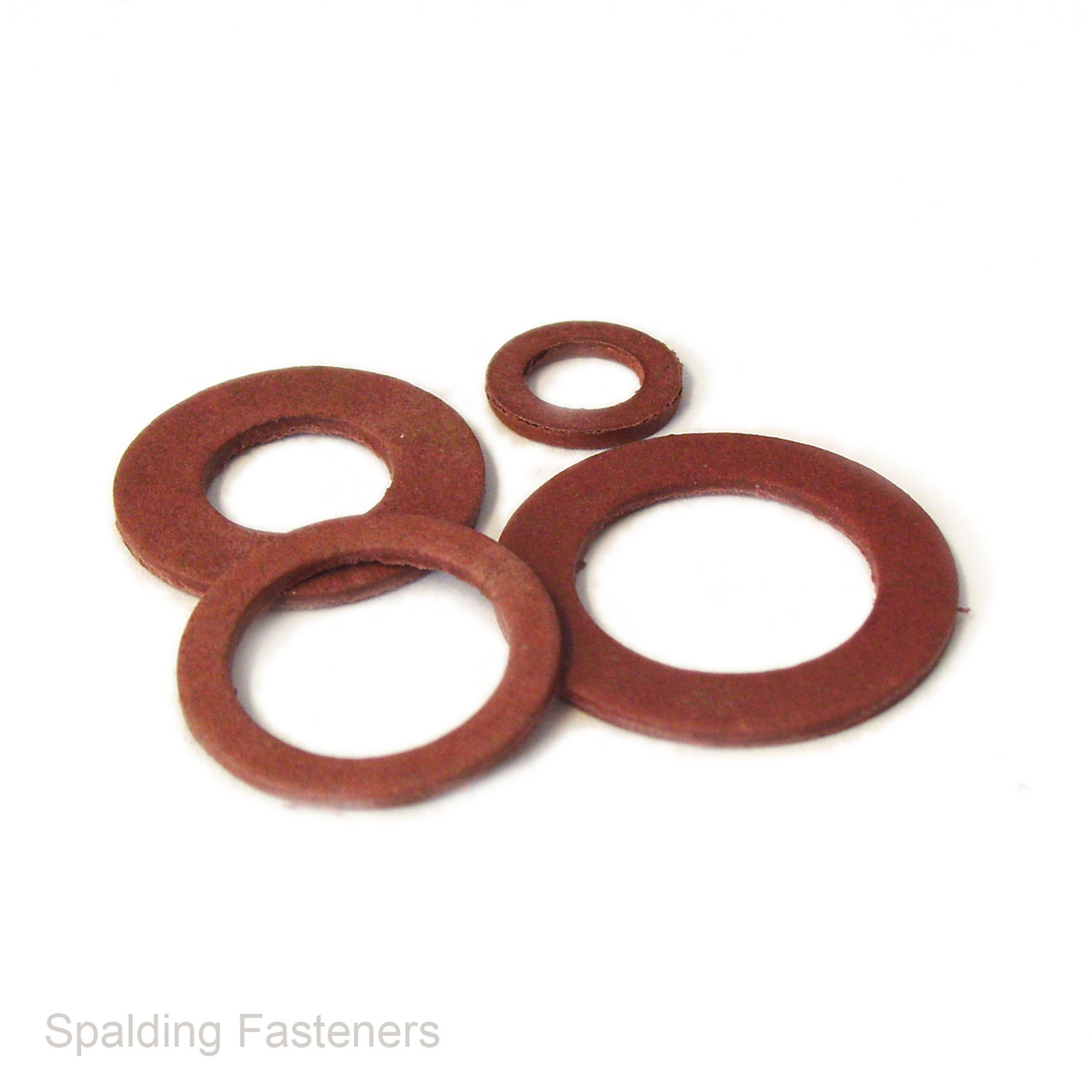

Metric Red Fibre Flat Sealing Washers
Red fibre flat sealing washers for assemblies requiring a compressible washer between mating surfaces. Available in a selection of metric dimensions for maintenance, repairs and general assembly work.
Select by the actual inside diameter, outside diameter and thickness required. Some bore sizes have several outside diameter or thickness options.
Product Specifications
- Material: Red fibre
- Type: Flat sealing washer
- Listed inside diameters: 3.5, 5, 6, 8, 10, 12, 14, 16, 18 and 20mm
- Listed thicknesses: 1, 1.5 and 2mm, depending on size
- Size format: Inside diameter x outside diameter x thickness
- Pack sizes: Choose from the available product options
Listed Dimensions
| Inside Diameter | Outside Diameter | Thickness |
|---|---|---|
| 3.5mm | 9.5mm | 1.5mm |
| 5mm | 9mm | 1mm |
| 6mm | 10mm | 1mm |
| 8mm | 17mm | 1.5mm |
| 10mm | 14mm | 1mm |
| 10mm | 16mm | 1mm |
| 12mm | 18mm | 1.5mm |
| 12mm | 24mm | 2mm |
| 14mm | 20mm | 1.5mm |
| 16mm | 22mm | 1.5mm |
| 18mm | 24mm | 1.5mm |
| 18mm | 29mm | 2mm |
| 18mm | 32mm | 1.5mm |
| 20mm | 24mm | 1.5mm |
| 20mm | 26mm | 1.5mm |
Installation
Check all three washer dimensions against the assembly requirements. Ensure the mating surfaces are clean and the washer sits flat, then tighten according to the equipment manufacturer's instructions.
Confirm material compatibility with the fluid, operating temperature and pressure before use. Colour alone does not identify the fibre grade or its service ratings.
Standards and Ratings
No specific DIN, BS or ISO standard, material grade, temperature limit or pressure rating has been verified for this listing.
