Product Description

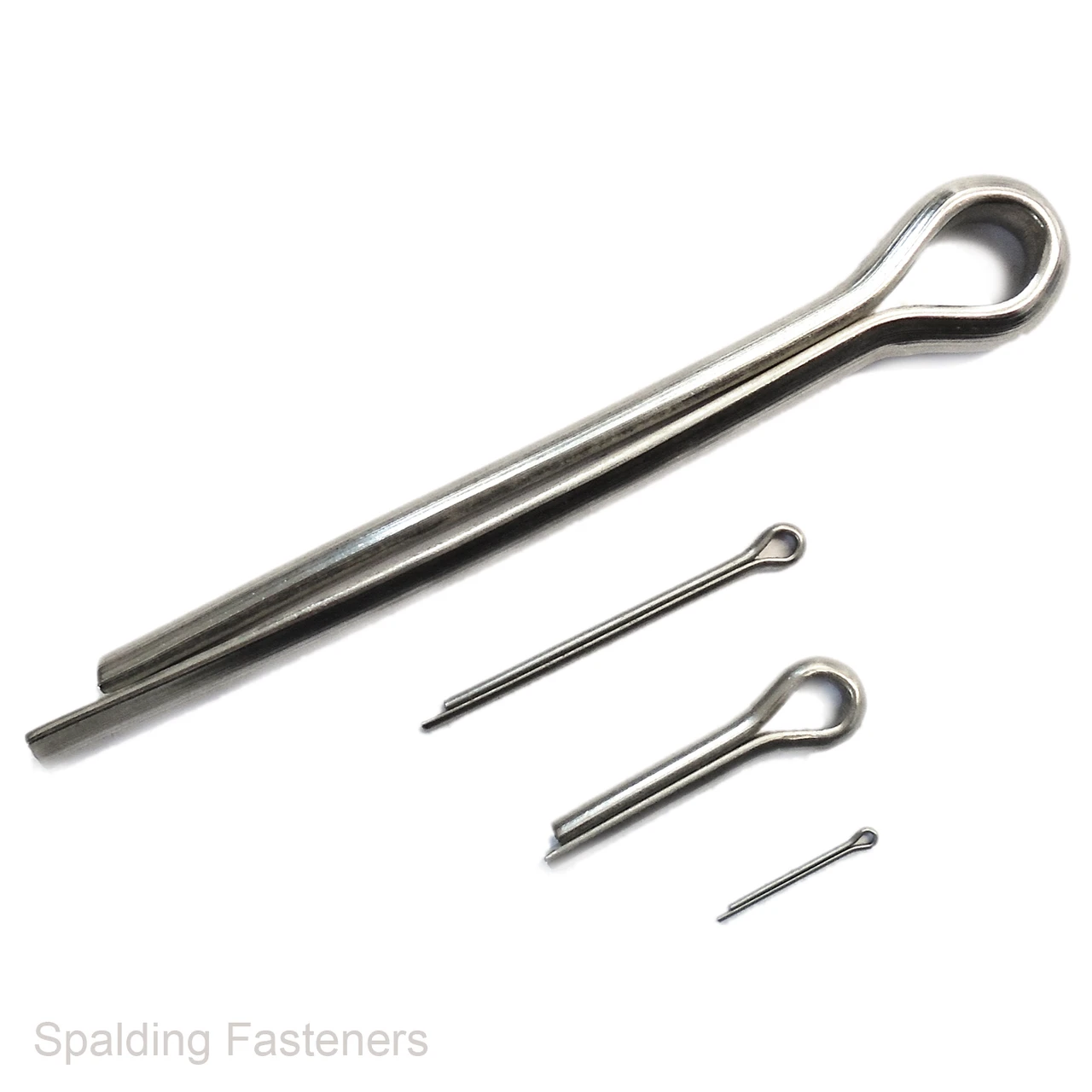

1/16" A2 grade stainless steel split cotter pins manufactured to DIN 94 for securing clevis pins, castellated nuts, shafts and other mechanical assemblies.
These split pins are manufactured from A2 stainless steel for improved corrosion resistance compared with standard self colour or plated steel pins. Once inserted through the fixing hole, the two legs can be opened to help prevent the pin or fastener from working loose.
- Pin diameter: 1/16" / approximately 1.6mm
- Material: A2 stainless steel
- Standard: DIN 94
- Pin type: Split cotter pin / split pin
- Lengths available: 3/8" through to 2"
- Available pack sizes: 1, 5, 10, 20, 50, 100, 250, 500 and 1000
| A | B | C | D |
| 1/16" | 1 1/2" | 1.6mm | 38mm |
| 1/16" | 1 3/4" | 1.6mm | 45mm |
| 1/16" | 1 3/8" | 1.6mm | 16mm |
| 1/16" | 1" | 1.6mm | 25mm |
| 1/16" | 1/2" | 1.6mm | 12mm |
| 1/16" | 2" | 1.6mm | 50mm |
| 1/16" | 3/4" | 1.6mm | 19mm |
| 1/16" | 3/8" | 1.6mm | 10mm |
| 1/16" | 5/8" | 1.6mm | 16mm |
| 1/16" | 7/8" | 1.6mm | 22mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
