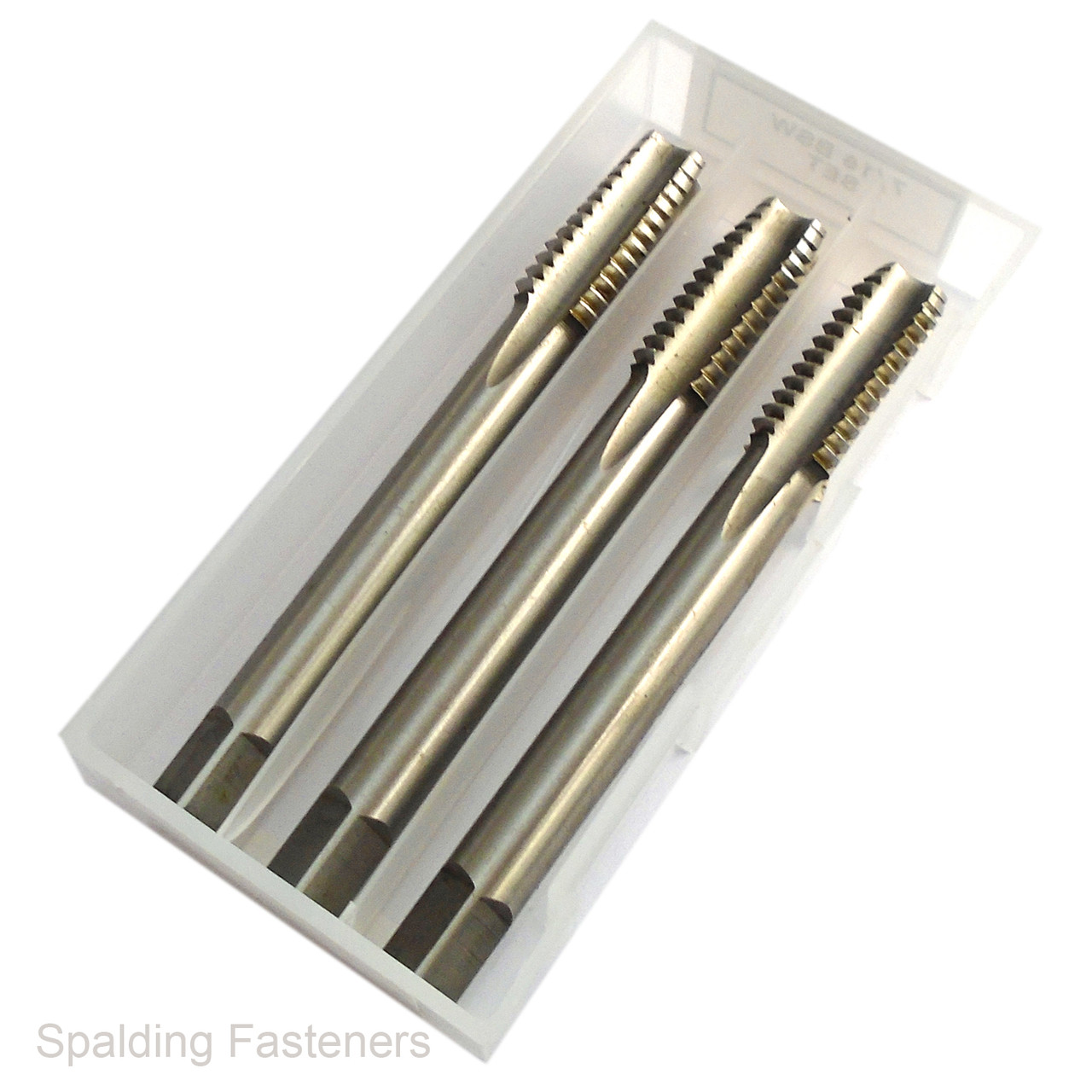

BSPF High Speed Steel Straight Flute Taps

Product Description

British Standard Pipe Fine high speed steel straight flute taps for cutting new internal parallel pipe threads.

These high-quality British steel HSS taps are suitable for producing BSPF internal threads in pipe fittings, adapters, manifolds, hydraulic components and engineering parts. BSPF is also commonly known as BSPP or G thread and uses a parallel 55-degree Whitworth thread form.

• Thread form: BSPF / BSPP / British Standard Pipe Parallel
• Material: High speed steel / HSS
• Flute type: Straight flute
• Thread type: Parallel pipe thread
• Use: Creating new internal threads
• Thread sizes available: 1/8"-28 BSPF through to 2"-11 BSPF
• Pass options: 1st taper, 2nd intermediate, 3rd bottoming or set of all three
• Manufactured from high-quality British steel

Complete sets include the 1st taper, 2nd intermediate and 3rd bottoming taps.

Please note: BSP thread sizes refer to the nominal pipe bore and do not equal the actual measured thread diameter.

Please note: Specifications are intended as a guide only. If dimensions are critical to your project, please check with us before ordering.
