Product Description

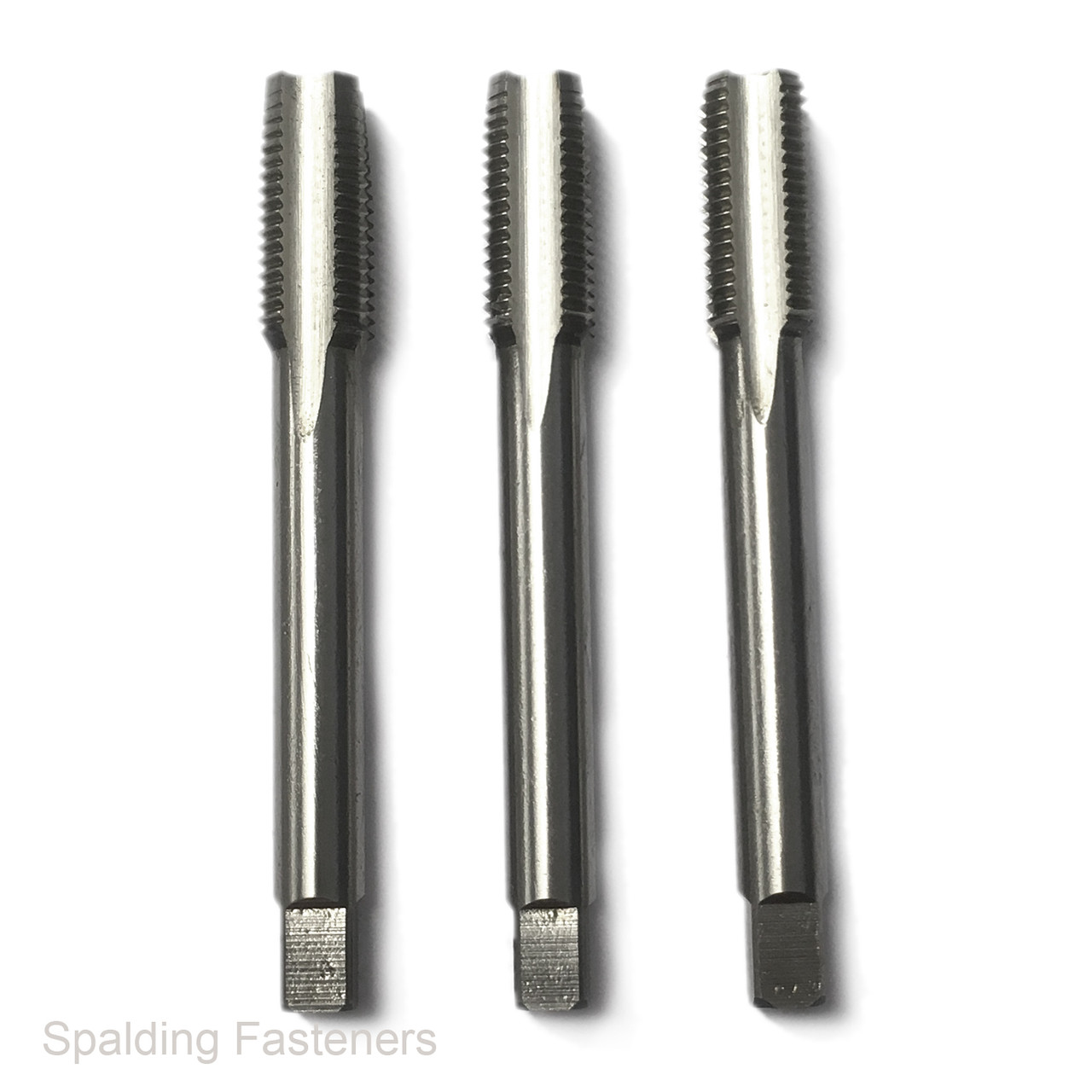

British Standard Pipe Thread high speed steel straight flute taps for cutting new internal tapered pipe threads.
These UK made high-quality HSS taps are suitable for producing BSPT internal threads in pipe fittings, adapters, manifolds, hydraulic components and engineering parts. BSPT uses a tapered 55-degree Whitworth thread form to help produce a pressure-tight threaded joint when used with a suitable sealing compound or thread sealant.
- Thread form: BSPT / British Standard Pipe Taper
- Material: High speed steel / HSS
- Flute type: Straight flute
- Thread type: Tapered pipe thread
- Use: Creating new internal threads
- Thread sizes available: 1/8"-28 BSPT through to 2"-11 BSPT
- Pass options: 1st taper, 2nd intermediate, 3rd bottoming or set of all three
- Made in the UK
| Thread Size | TPI | Thread Form | Thread Type | Material | Flute Type |
|---|---|---|---|---|---|
| 1/8"-28 BSPT | 28 | BSPT | Tapered | High Speed Steel | Straight Flute |
| 1/4"-19 BSPT | 19 | BSPT | Tapered | High Speed Steel | Straight Flute |
| 3/8"-19 BSPT | 19 | BSPT | Tapered | High Speed Steel | Straight Flute |
| 1/2"-14 BSPT | 14 | BSPT | Tapered | High Speed Steel | Straight Flute |
| 3/4"-14 BSPT | 14 | BSPT | Tapered | High Speed Steel | Straight Flute |
| 1"-11 BSPT | 11 | BSPT | Tapered | High Speed Steel | Straight Flute |
| 1 1/4"-11 BSPT | 11 | BSPT | Tapered | High Speed Steel | Straight Flute |
| 1 1/2"-11 BSPT | 11 | BSPT | Tapered | High Speed Steel | Straight Flute |
| 2"-11 BSPT | 11 | BSPT | Tapered | High Speed Steel | Straight Flute |

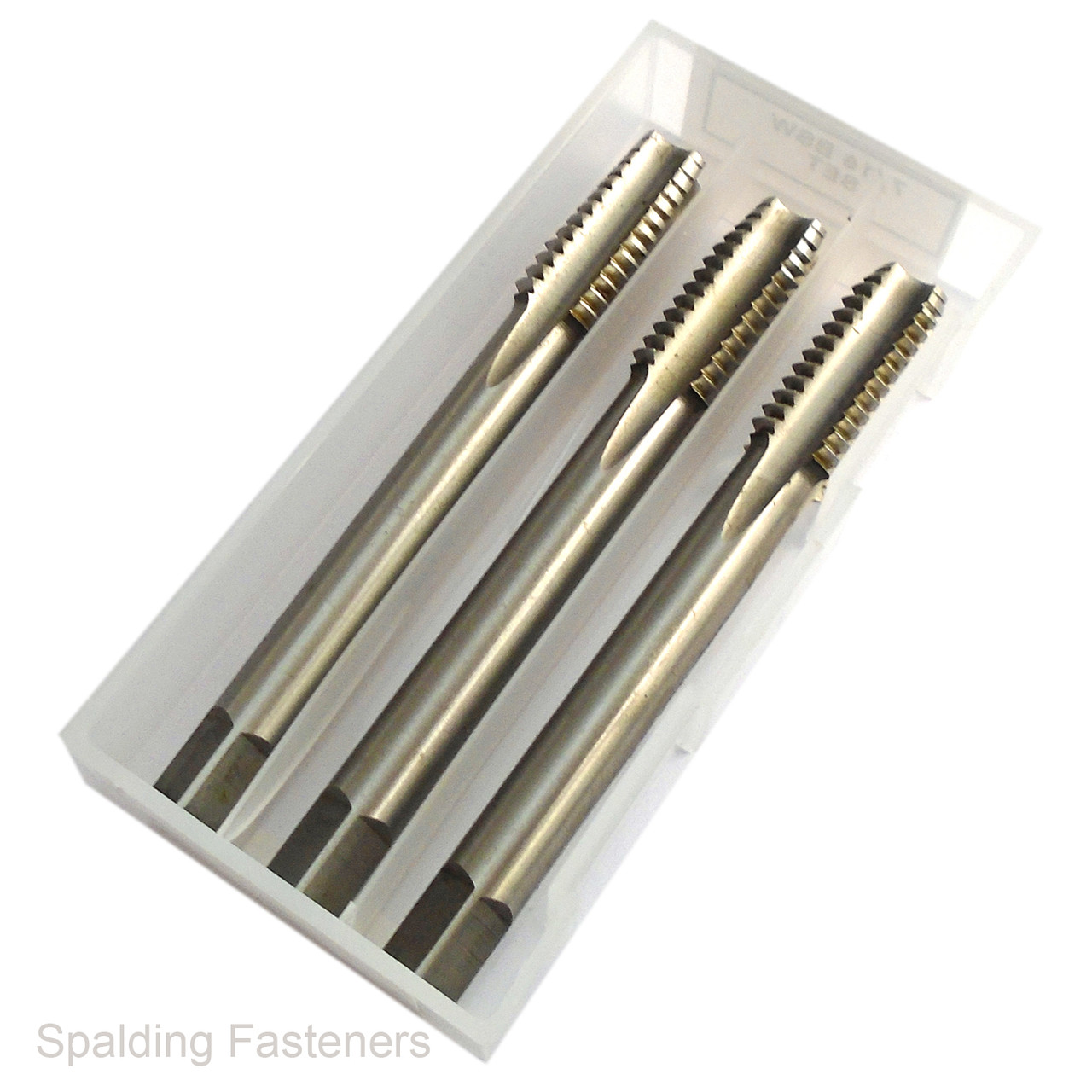

Complete sets include the 1st taper, 2nd intermediate and 3rd bottoming taps. Sets are supplied in a plastic case, while individual taps are packed in plastic bags.
Please note: BSP thread sizes refer to the nominal pipe bore and do not equal the actual measured thread diameter.
Please note: Specifications are intended as a guide only. If dimensions are critical to your project, please check with us before ordering.
