Product Description

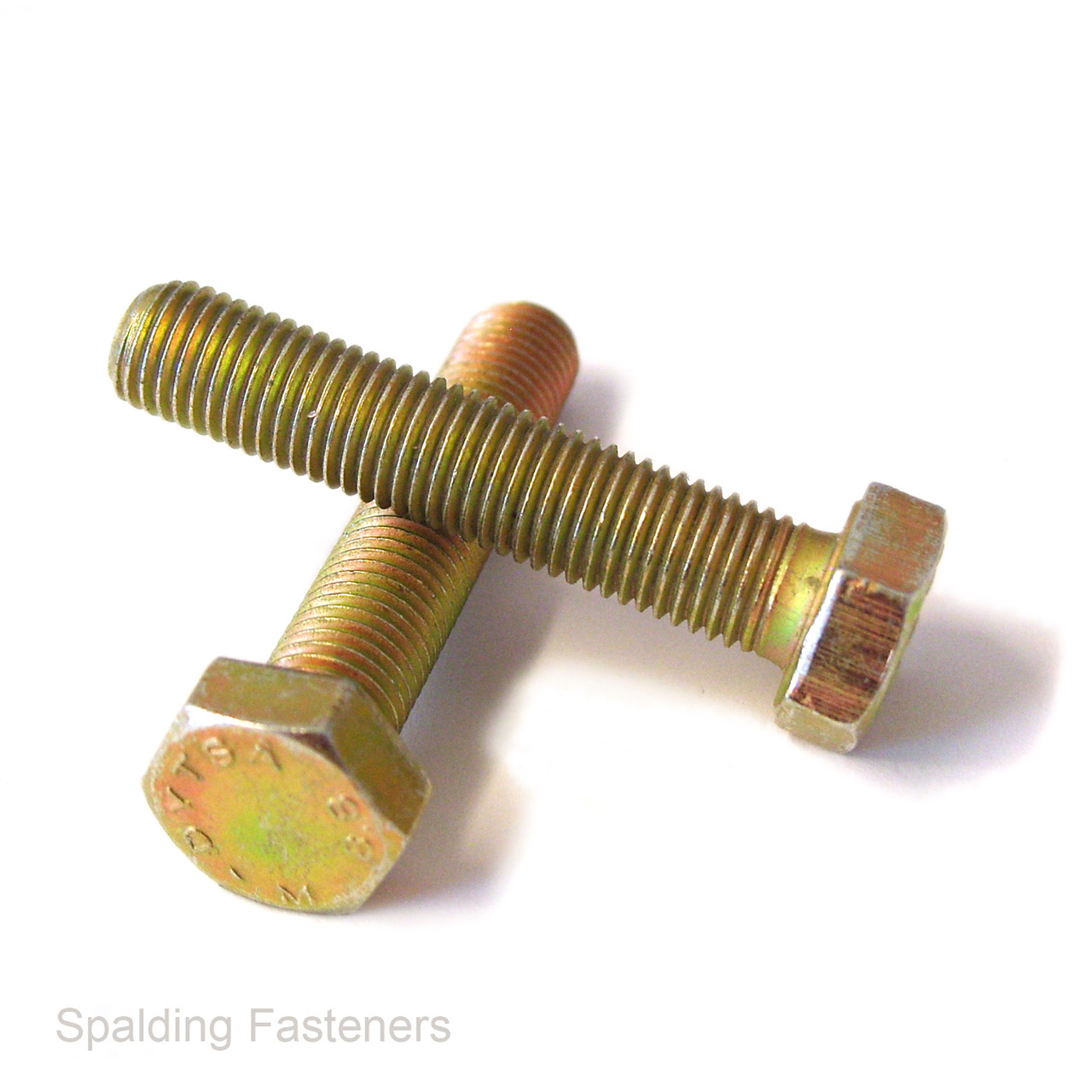

M10 metric fine 8.8 zinc hex head fully threaded set screws to DIN 961 for high tensile fastening applications. Manufactured from 8.8 grade high tensile steel with a yellow zinc plated finish, these fully threaded hex head bolts are suitable for automotive, engineering, machinery and general workshop use.
Available with M10 x 1.25 and M10 x 1.0 metric fine thread pitches, these set screws are ideal for applications where a finer pitch thread and fully threaded fixing are required. Supplied in lengths from 20mm to 50mm, with pack quantities to suit trade, workshop and bulk use.
Please select the required thread pitch, length and pack quantity from the dropdown options. Specifications are intended as a guide only, so if dimensions are critical it is best to check before ordering.
Search Keywords
Thread Size: M10
Thread Pitch: 1.25mm / 1.0mm
Thread Type: Metric Fine
Standard: DIN 961
Material: 8.8 Grade High Tensile Steel
Finish: Yellow Zinc Plated
Head Type: Hex Head
Style: Fully Threaded Set Screw
| A | B | C | D | E |
| 10mm | 20mm | 17mm | 6.4mm | 1.25 |
| 10mm | 25mm | 17mm | 6.4mm | 1.25 |
| 10mm | 30mm | 17mm | 6.4mm | 1.25 |
| 10mm | 35mm | 17mm | 6.4mm | 1.25 |
| 10mm | 40mm | 17mm | 6.4mm | 1.25 |
| 10mm | 45mm | 17mm | 6.4mm | 1.25 |
| 10mm | 50mm | 17mm | 6.4mm | 1.25 |
| 10mm | 20mm | * | * | 1 |
| 10mm | 30mm | * | * | 1 |
| 10mm | 40mm | * | * | 1 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
