Product Description

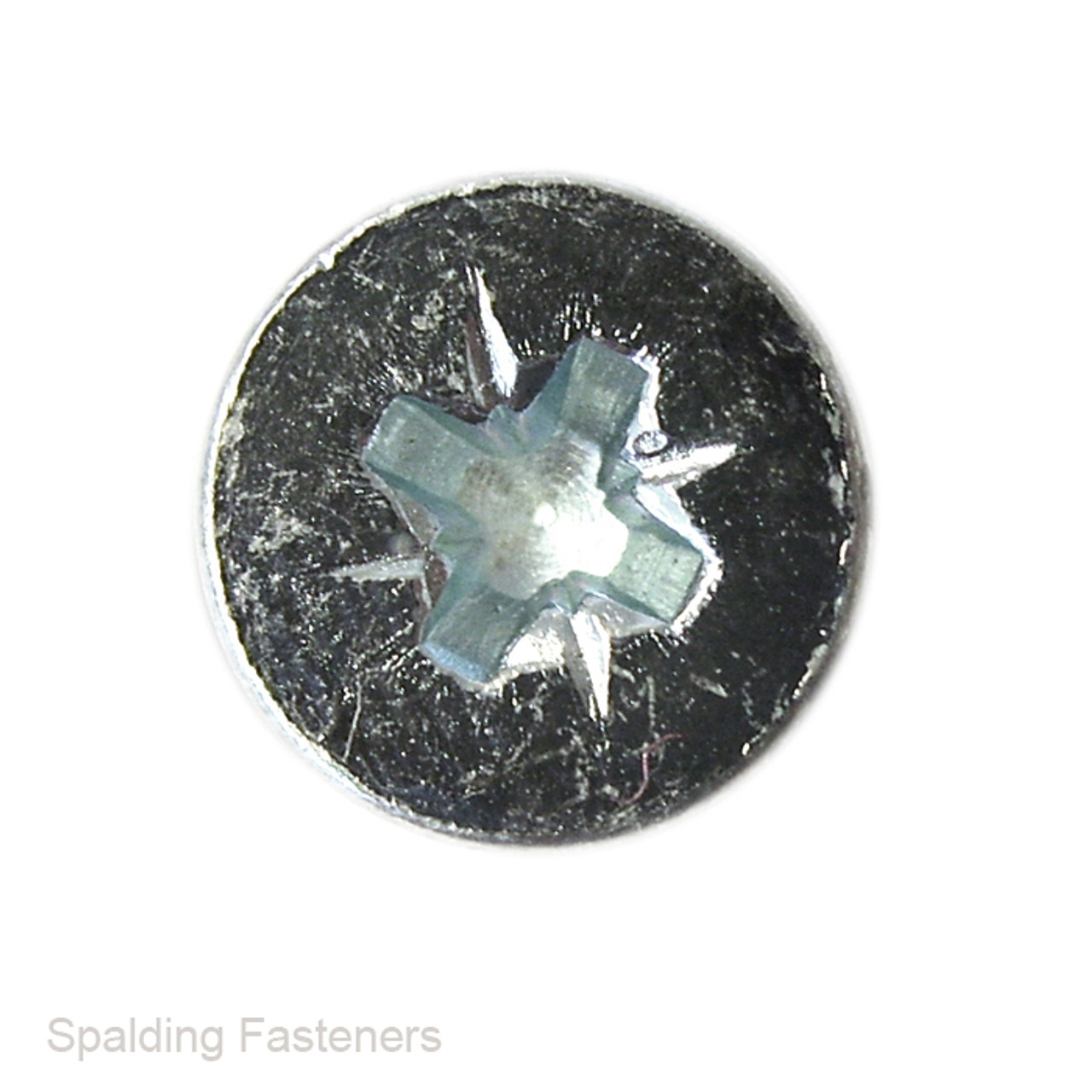

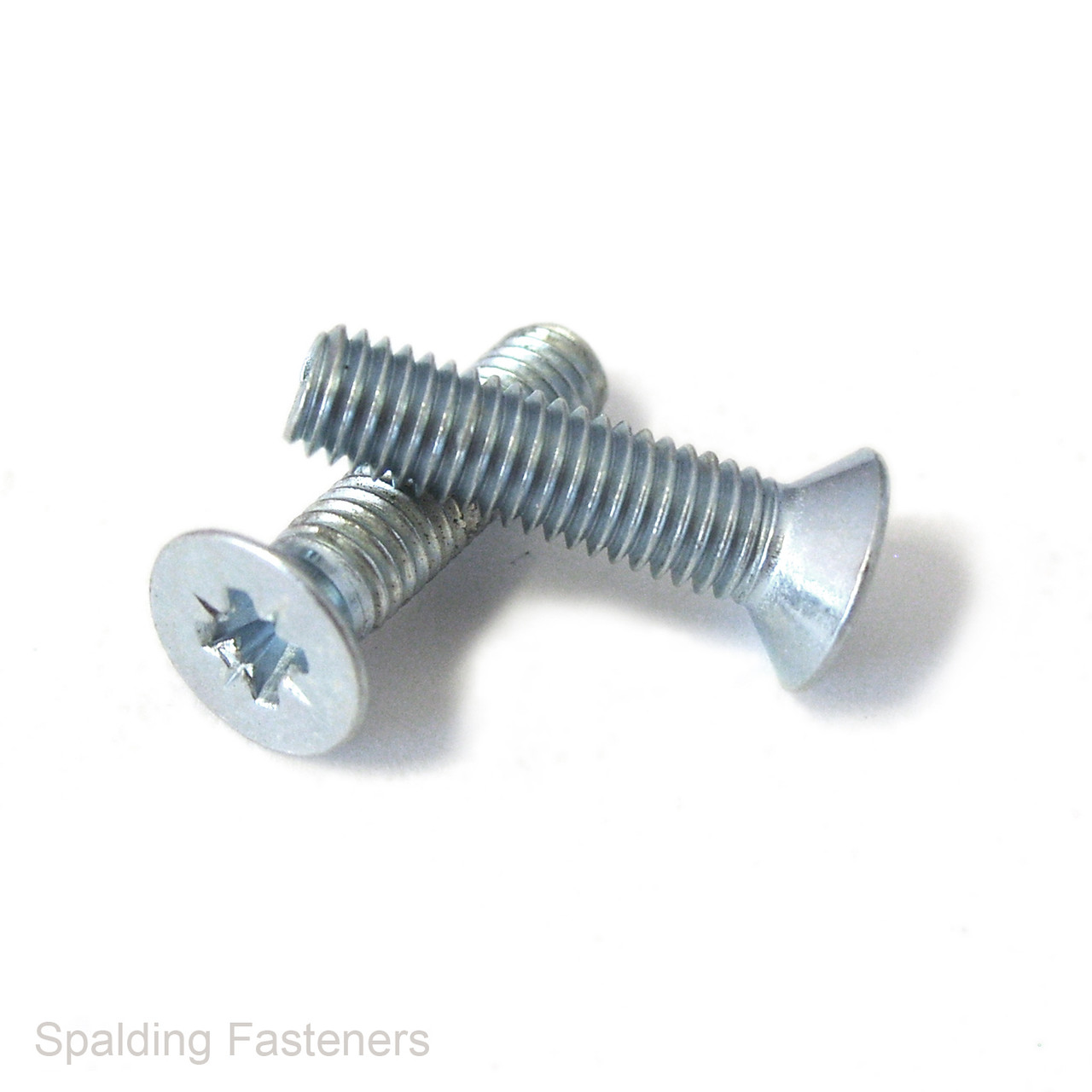

M4 metric 4.8 grade zinc plated steel countersunk Pozi head machine screws manufactured to DIN 965, with a standard 0.7mm metric coarse thread.
These machine screws feature a countersunk head with a Pozi drive, allowing the screw to sit flush in a countersunk hole while giving positive drive engagement during installation. They are suitable for general engineering, machinery, electrical work, panels, enclosures, brackets, restoration and maintenance applications.
- Thread size: M4
- Thread pitch: 0.7mm metric coarse
- Material: 4.8 grade steel
- Finish: Bright zinc plated
- Standard: DIN 965
- Head style: Countersunk head
- Drive type: Pozi / Pozidriv
- Approximate head diameter: 7.5mm
- Available lengths: 6mm, 10mm, 16mm and 25mm
- Length measured overall, including the countersunk head
- Pack sizes available: 10, 20, 50, 100, 250, 500 and 1000
| A | B | C | D | E |
| 4mm | 6mm | 7.5mm | 2.2mm | 0.7 |
| 4mm | 10mm | 7.5mm | 2.2mm | 0.7 |
| 4mm | 12mm | 7.5mm | 2.2mm | 0.7 |
| 4mm | 20mm | 7.5mm | 2.2mm | 0.7 |
| 4mm | 25mm | 7.5mm | 2.2mm | 0.7 |
| 4mm | 40mm | 7.5mm | 2.2mm | 0.7 |
| 4mm | 50mm | 7.5mm | 2.2mm | 0.7 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
