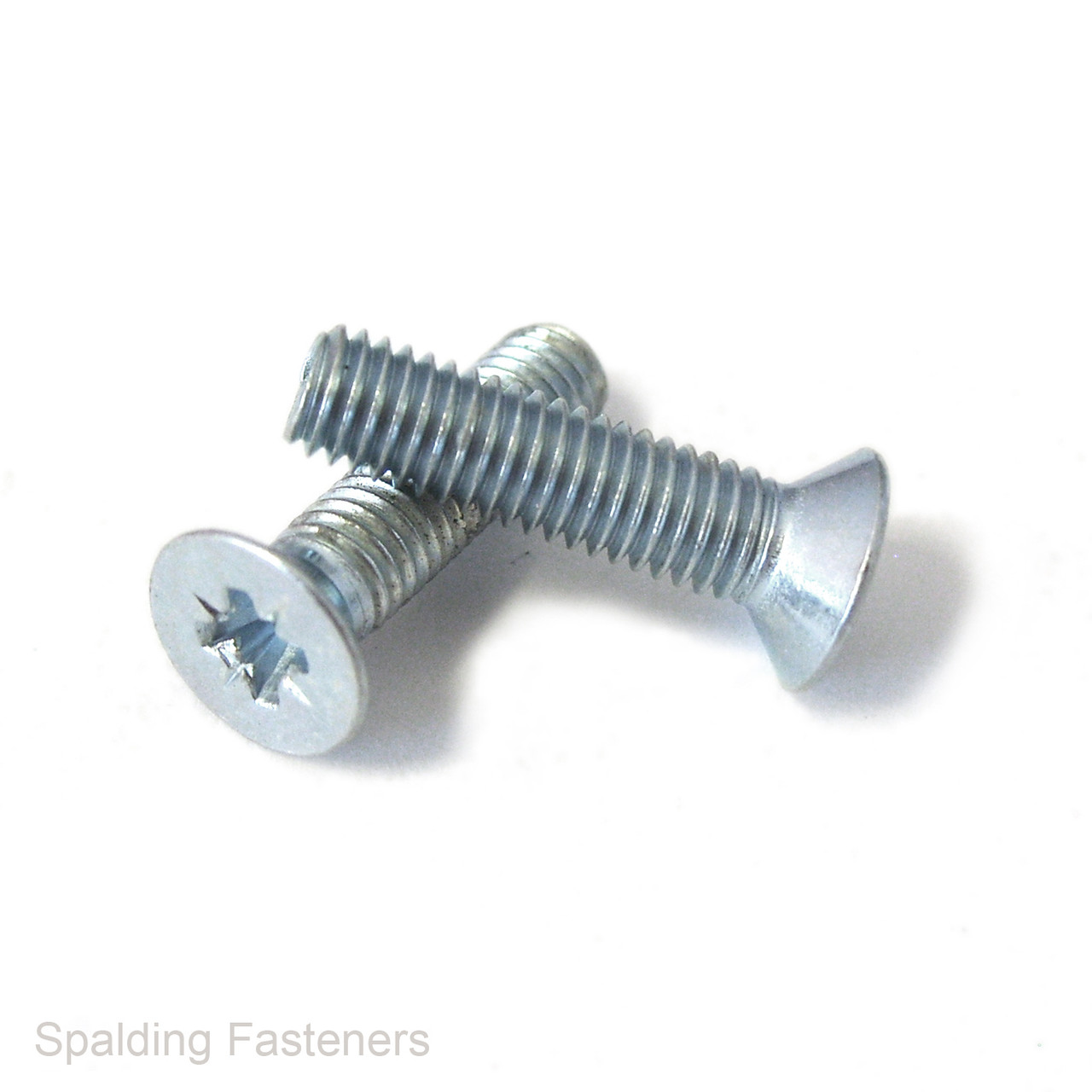

M5 4.8 Zinc Plated Countersunk Pozi Machine Screws DIN 965

Product Description

M5 metric 4.8 grade zinc plated steel countersunk Pozi head machine screws manufactured to DIN 965, with a standard 0.8mm metric coarse thread.

These machine screws feature a countersunk head with a Pozi drive, allowing the screw to sit flush in a countersunk hole while providing positive drive engagement during installation. They are suitable for general engineering, machinery, electrical work, panels, enclosures, brackets, automotive repairs, restoration and maintenance applications.

• Thread size: M5
• Thread pitch: 0.8mm metric coarse
• Material: 4.8 grade steel
• Finish: Bright zinc plated
• Standard: DIN 965
• Head style: Countersunk head

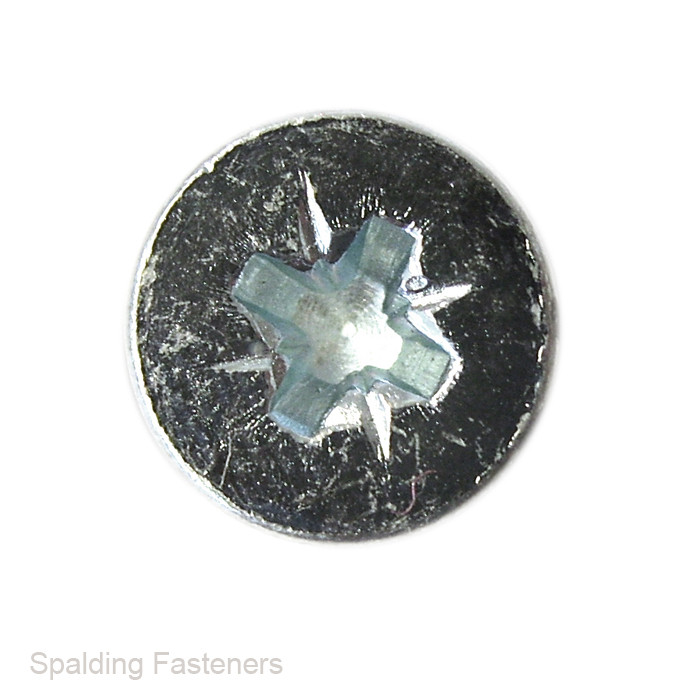

• Drive type: Pozi / Pozidriv
• Approximate head diameter: 9.2mm
• Approximate head height: 2.5mm
• Available lengths: 12mm, 16mm, 20mm, 25mm, 35mm, 40mm and 50mm
• Length measured overall, including the countersunk head
• Pack sizes available: 5, 10, 20, 50, 100, 250, 500 and 1000

Countersunk Pozi machine screws are commonly used with matching nuts, threaded holes, tapped components or threaded inserts where a neat, flush-fitting finish is required.

Bright zinc plated steel provides general corrosion resistance for indoor and sheltered applications. For outdoor, marine, coastal or more corrosive environments, stainless steel fasteners may be more suitable.

For countersunk screws, the length is measured overall from the top of the head to the end of the thread.

Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
