Product Description

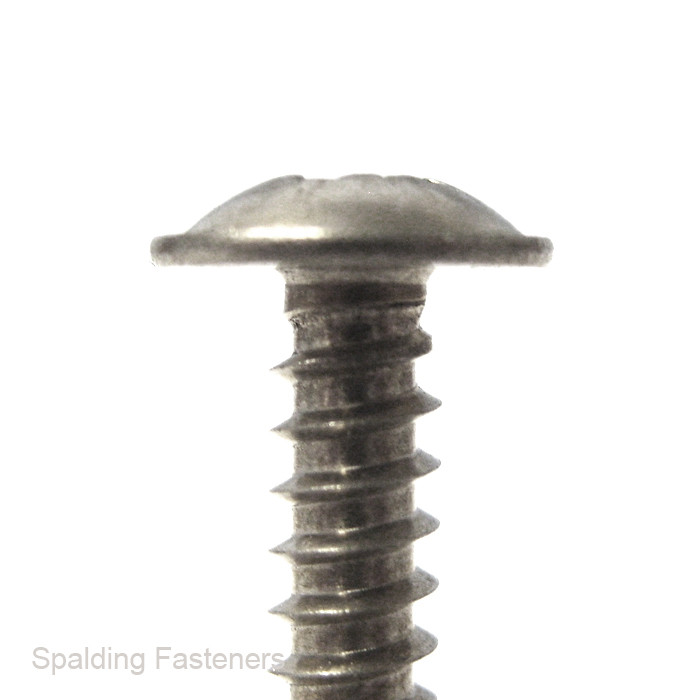

No.8 A2 stainless steel Pozi flange-head self-tapping screws manufactured to BS 4174, available in imperial lengths from 3/8" to 2".

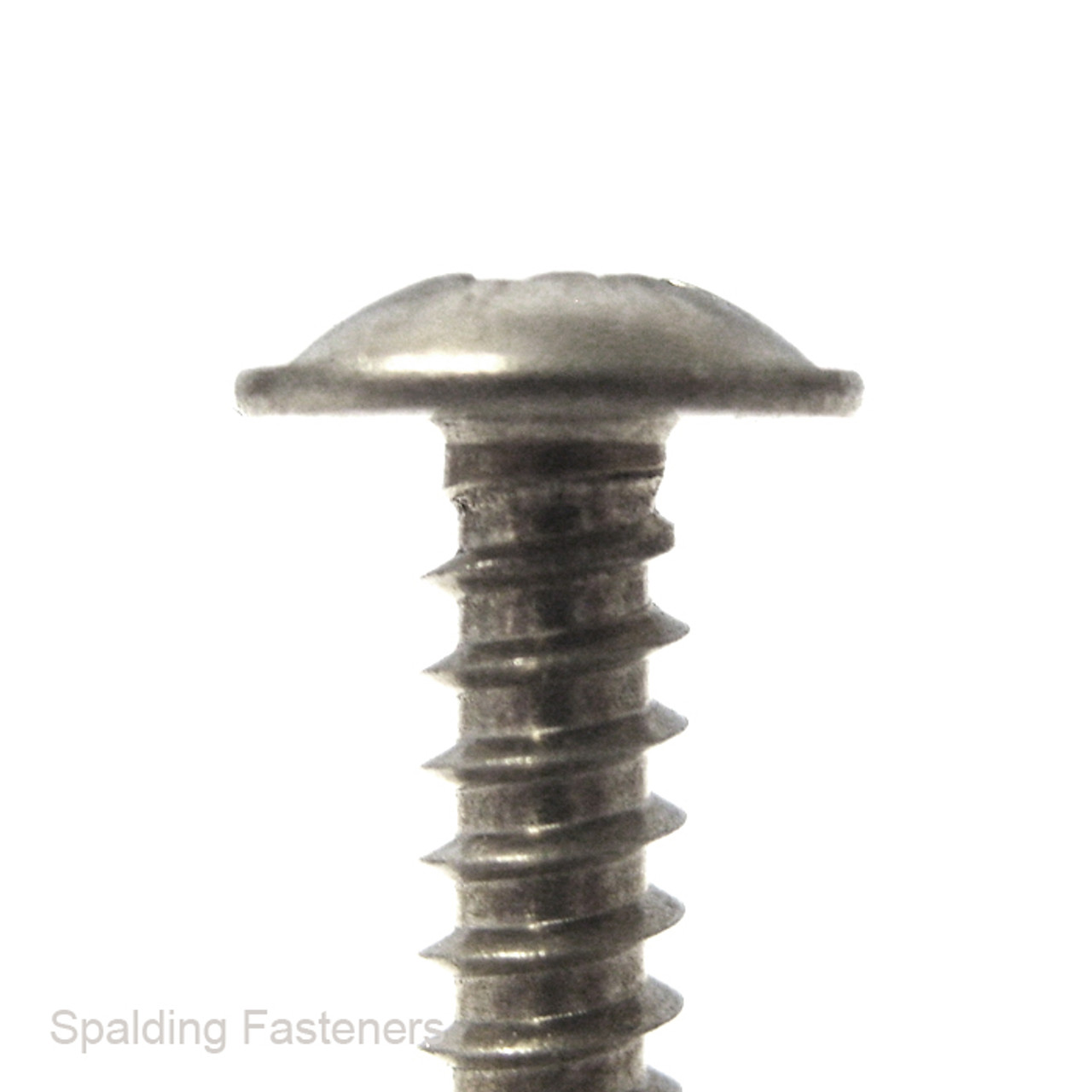

These Type AB self-tapping screws feature a cross-recessed Pozi drive, sharp point and wide integral flange beneath the head. The flange provides a larger bearing surface than a conventional pan head, helping to spread the clamping load and potentially removing the need for a separate flat washer in suitable applications.
- Screw size: No.8
- Approximate nominal diameter: 4.2mm
- Material: A2 stainless steel
- Finish: Natural stainless steel
- Standard: BS 4174
- Self-tapping type: Type AB
- Head style: Flange head / integral washer head
- Drive type: Pozi
- Point style: Sharp self-tapping point
- Approximate flange diameter: 9.4mm on listed sizes
- Approximate head height: 2mm on listed sizes
- Available lengths: 3/8", 1/2", 5/8", 3/4", 1", 1 1/4" and 2"
- Approximate metric lengths: 9.5mm, 13mm, 16mm, 19mm, 25mm, 32mm and 50mm
- Length measured from beneath the flange to the end of the point
- Pack sizes available: 1, 10, 20, 50, 100, 250, 500 and 1000
Pozi flange-head self-tapping screws are commonly used for securing panels, covers, brackets, electrical equipment, appliances, machinery components, automotive trim and general engineering assemblies.
The integral flange spreads the clamping force over a wider area than a standard screw head. This can help reduce localised pressure on thinner materials and may remove the need to handle a separate washer during repetitive assembly work.

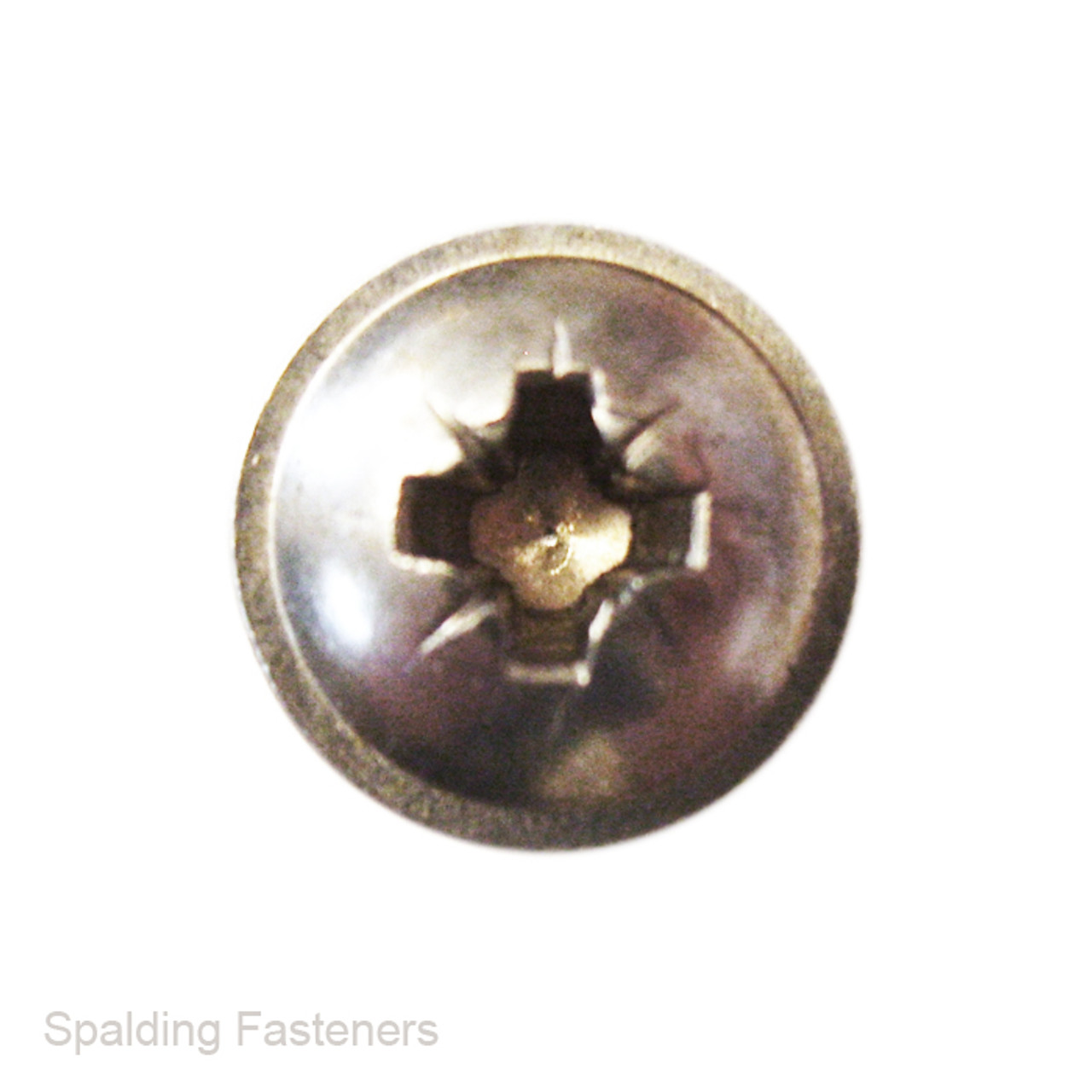

The Pozi drive provides positive engagement with a correctly sized Pozi screwdriver bit, helping to transmit installation torque and reduce driver slip.
Type AB self-tapping screws combine a fine tapping thread with a sharp point. They form a mating thread as they are driven into a correctly sized pilot hole in suitable sheet metal, plastics and other compatible materials.
A2 stainless steel provides good general corrosion resistance for indoor and outdoor applications. For marine, coastal, swimming-pool or highly corrosive environments, A4 stainless steel may be more suitable.
These screws are self-tapping rather than self-drilling. A correctly sized pilot hole is normally required, particularly when installing into metal or other hard materials.
For flange-head screws, the length is measured from beneath the flange to the end of the point.
Please note: The product table supplies flange and head dimensions for selected lengths only. Imperial dimensions shown alongside the current metric figures appear inconsistent, so only the metric measurements have been included. Specifications are intended as a guide only. If dimensions or application requirements are critical, please check with us before ordering.
| A | B | C | D | E | F | G | H |
| No.8 | 4.2mm | 1 1/4" | 32mm | * | * | * | * |
| No.8 | 4.2mm | 1" | 25mm | 9.4mm | 0.77" | 2mm | 0.47" |
| No.8 | 4.2mm | 1/2" | 13mm | * | * | * | * |
| No.8 | 4.2mm | 2" | 50mm | * | * | * | * |
| No.8 | 4.2mm | 3/4" | 19mm | * | * | * | * |
| No.8 | 4.2mm | 3/8" | 9.5mm | 9.4mm | 0.77" | 2mm | 0.47" |
| No.8 | 4.2mm | 5/8" | 16mm | 9.4mm | 0.77" | 2mm | 0.47" |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
