Product Description

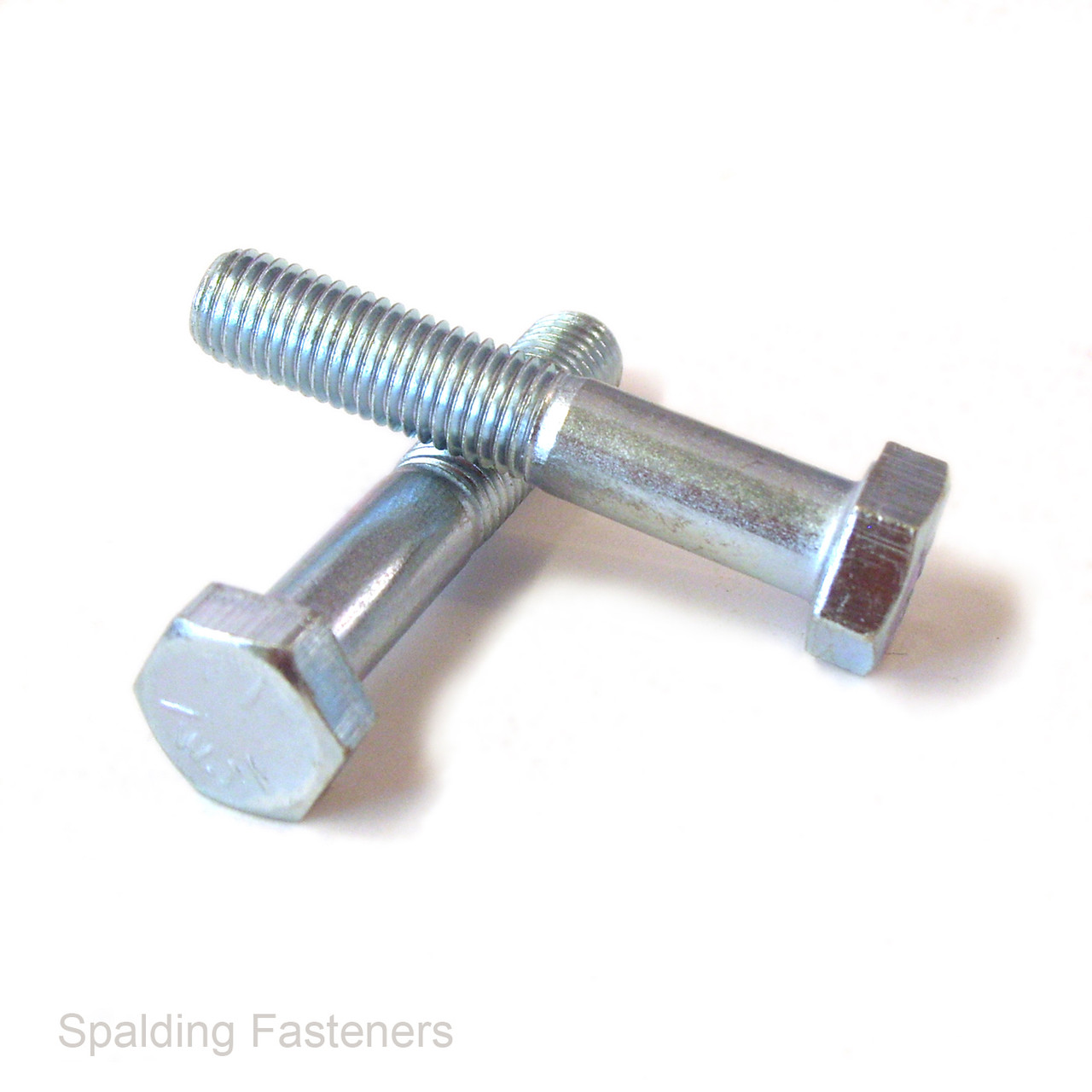

M30 Metric 8.8 Zinc Plated Hexagon Head Bolts With Shank
These M30 x 90mm metric hexagon head bolts are manufactured from high-tensile property class 8.8 steel and finished with zinc plating for additional protection against corrosion. Their partially threaded design provides a solid, unthreaded shank through the joint, making them suitable for demanding engineering, machinery, fabrication and general assembly applications.
Manufactured to DIN 931, with ISO 4014 / BS EN ISO 4014:2022 being the corresponding current international and British standard for partially threaded metric hexagon head bolts. The standard M30 coarse thread has a 3.5mm pitch and is tightened using a 46mm spanner or socket.
- Thread size: M30
- Available length: 90mm
- Thread pitch: 3.5mm metric coarse
- Thread form: Part threaded with unthreaded shank
- Threaded length: Approximately 66mm
- Unthreaded shank length: Approximately 24mm
- Material: High-tensile steel
- Property class: 8.8
- Finish: Zinc plated
- Head style: Hexagon head
- Spanner size: 46mm across flats
- Head height: Approximately 18.7mm
- Standard: DIN 931
- Corresponding standard: ISO 4014 / BS EN ISO 4014:2022, product grade B
These high-tensile bolts are suitable for automotive work, heavy machinery, steel fabrication, plant equipment, construction and other applications requiring a strong, removable fastening. The zinc-plated finish provides protection for indoor use and moderately exposed environments but is not intended as a substitute for galvanised or stainless steel in highly corrosive conditions.
Complete your assembly with suitable nuts and washers. For additional sizing information, please see our Thread Data Guide and Spanner Sizes Guide.
Please note: Dimensions are provided as a guide and may be subject to normal manufacturing tolerances. If any measurement or standard compliance is critical to your application, please contact us before ordering.
| A | B | C | D | E | F | G |
| 30mm | 90mm | 66mm | 46mm | 18.7mm | 3.5 | 24mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
