M7 8.8 Zinc Plated Hex Bolts DIN 931

Product Description

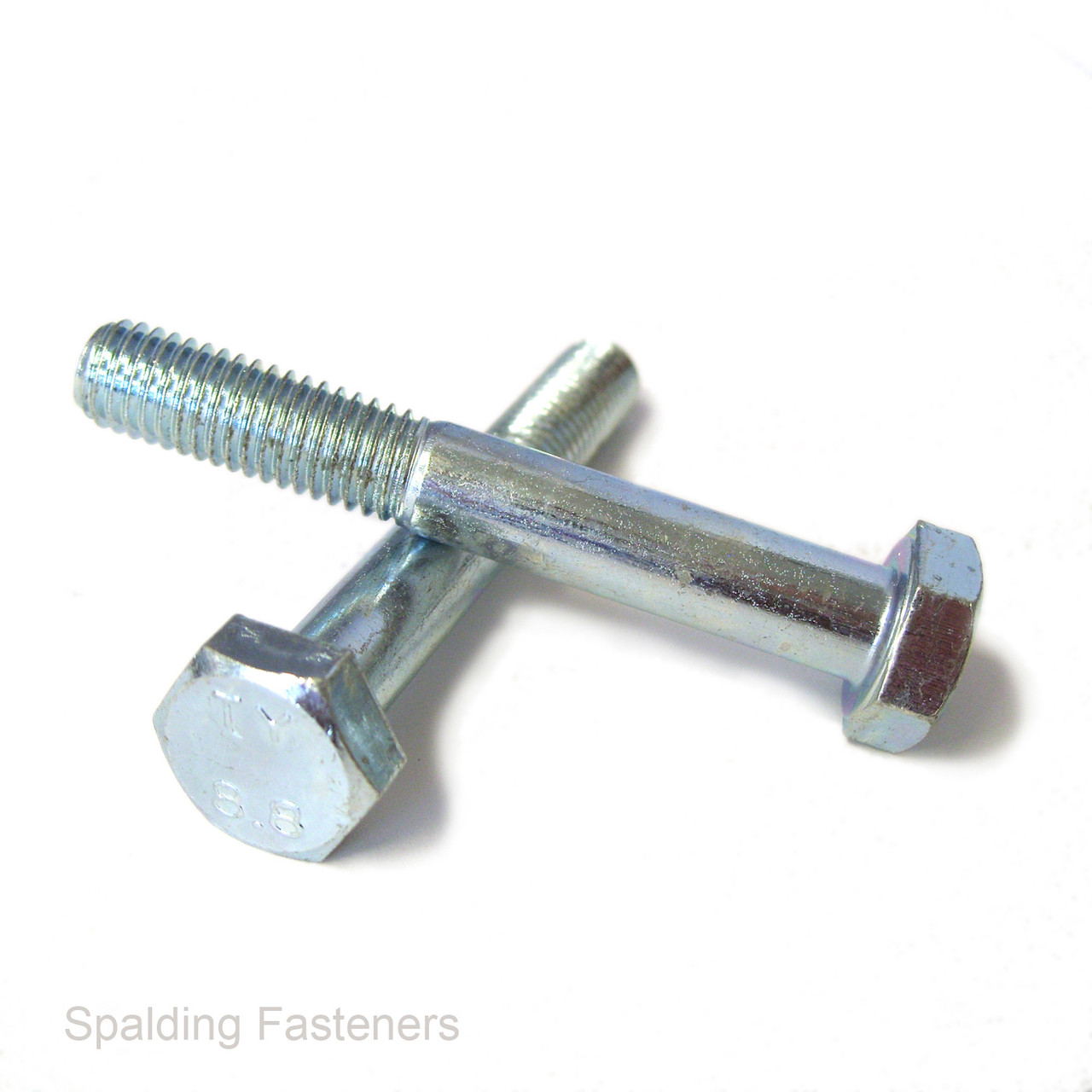

M7 Metric 8.8 Zinc Plated Hexagon Head Bolts With Shank

These M7 metric hexagon head bolts are manufactured from high-tensile property class 8.8 steel and finished with zinc plating for additional protection against corrosion. Available in lengths from 35mm to 70mm, they feature a partially threaded design with a solid, unthreaded shank through part of the fastening.

M7 is a less-common metric diameter that is often required for automotive, motorcycle, machinery, restoration and specialist engineering applications. It uses a standard M7 x 1mm thread and should not be confused with M6 or M8 fasteners.

• Thread size: M7
• Available lengths: 35mm, 40mm, 45mm, 50mm, 60mm and 70mm
• Thread pitch: 1mm metric coarse
• Thread form: Part threaded with unthreaded shank
• Standard threaded length: Approximately 20mm
• Material: High-tensile steel
• Property class: 8.8
• Finish: Zinc plated
• Head style: Hexagon head
• Spanner or socket size: 11mm
• Nominal head height: 4.8mm
• Primary standard: DIN 931
• Size designation: Non-preferred metric diameter

The partially threaded construction allows the solid shank to pass through the clearance holes of assembled components. This can provide improved support through the joint compared with placing threads across the complete joint thickness.

Property class 8.8 provides a strong and reliable fastening for machinery, automotive repairs, fabrication and general engineering work. The zinc-plated finish offers protection in indoor and moderately exposed environments but is not a replacement for galvanised or stainless steel in highly corrosive conditions.

Complete your fastening assembly with suitable nuts and washers. For additional sizing information, please see our Thread Data Guide and Spanner Sizes Guide.

Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
