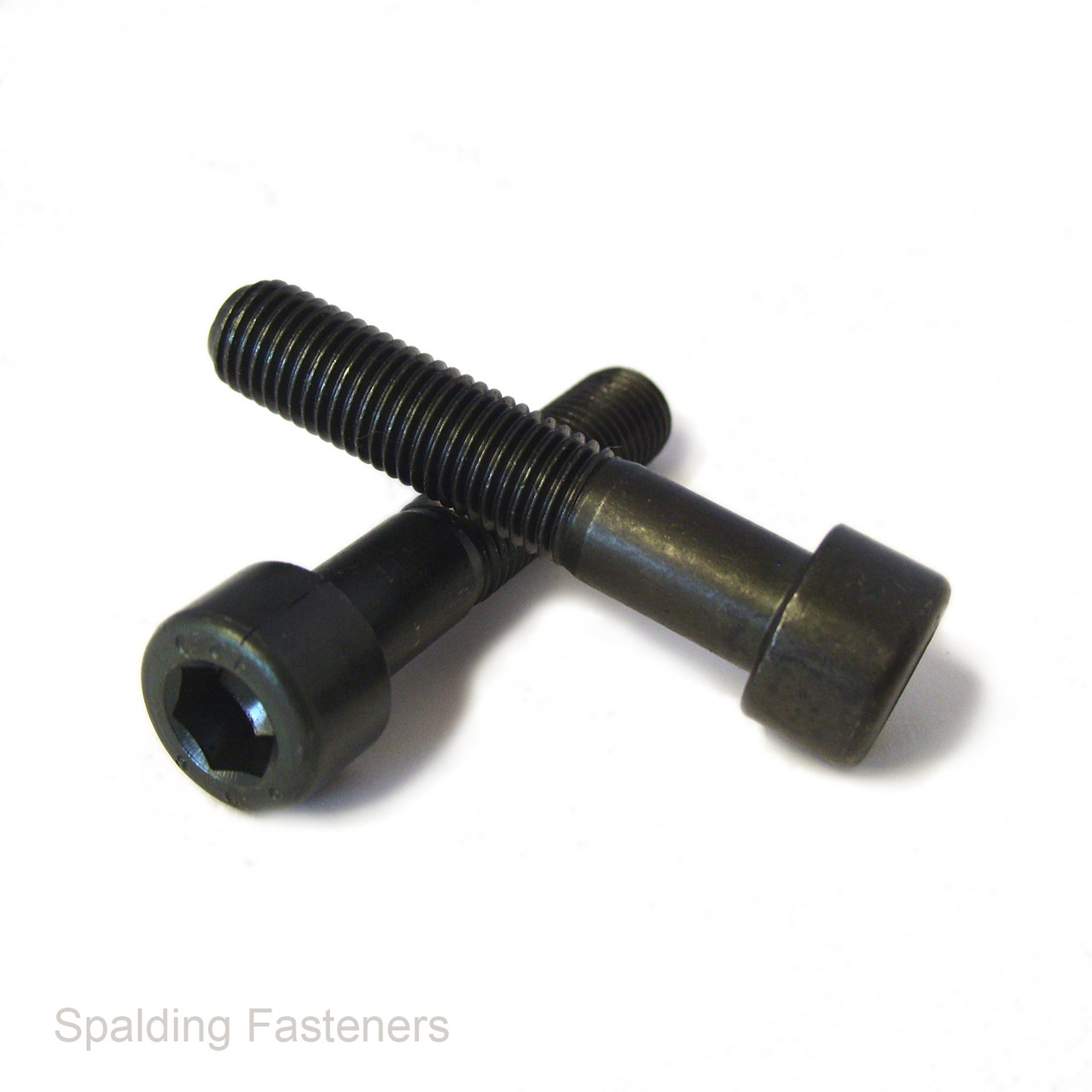

M12 Metric Fine Grade 12.9 Self Colour Socket Cap Bolts With Shank
High-strength M12 socket head cap bolts manufactured from property class 12.9 steel with a self-colour, unplated finish. Available with 1.5mm fine and 1.25mm extra-fine thread pitches, these part-threaded bolts are intended for demanding machinery, automotive and engineering assemblies.
- Thread diameter: M12
- Available pitches: 1.5mm fine and 1.25mm extra fine
- Property class: 12.9
- Finish: Self colour / unplated

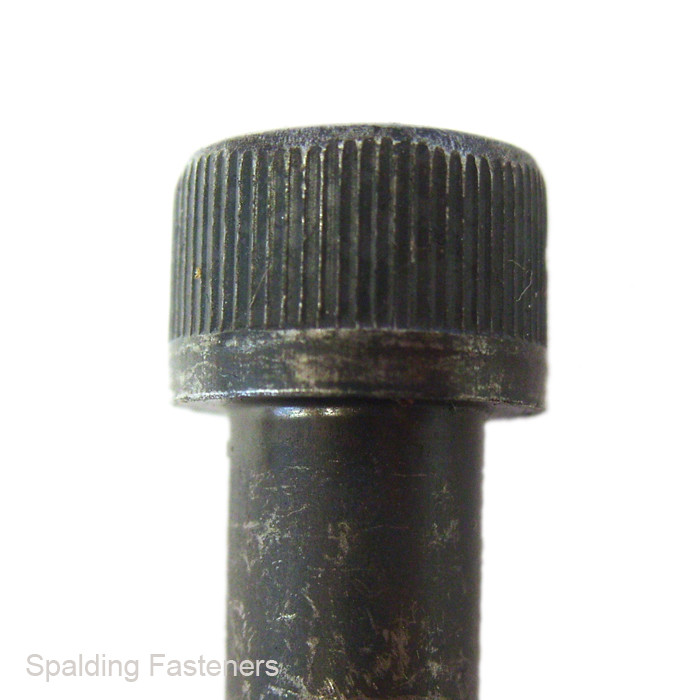

- Head style: Cylindrical socket head
- Drive: Internal hexagon
- Hex key size: 10mm
- Nominal head diameter: 18mm
- Nominal head height: 12mm
- Construction: Part threaded with an unthreaded shank
- Available lengths: 55mm to 100mm
Select the pitch carefully: M12 × 1.5 and M12 × 1.25 threads are not interchangeable with one another or with the standard M12 × 1.75 coarse thread. The bolt must be paired with a nut or tapped hole having exactly the same diameter and pitch.
Thread and shank lengths reproduce the dimensions currently listed for each product variant. Verify critical grip and thread-engagement dimensions before ordering.
Property Class 12.9
Property class 12.9 fasteners provide very high tensile strength for highly loaded assemblies. Tightening torque and preload must be selected according to the thread pitch, lubrication, mating-thread strength, joint design and operating conditions. Use qualified engineering guidance for safety-critical joints.
Self-Colour Finish
Self-colour steel is unplated and provides little inherent protection against corrosion. Keep the fasteners dry and consider protective oil, an appropriate coating or a plated alternative where exposure to moisture is expected.
Useful Guides and Matching Components
| A | B | C | D | E | F | G | H |
| 12mm | 100mm | 36mm | 18mm | 12mm | 10mm | 1.5 | 64mm |
| 12mm | 55mm | 36mm | 18mm | 12mm | 10mm | 1.5 | 19mm |
| 12mm | 60mm | 36mm | 18mm | 12mm | 10mm | 1.5 | 24mm |
| 12mm | 70mm | 36mm | 18mm | 12mm | 10mm | 1.5 | 34mm |
| 12mm | 80mm | 36mm | 18mm | 12mm | 10mm | 1.5 | 44mm |
| 12mm | 90mm | 36mm | 18mm | 12mm | 10mm | 1.5 | 54mm |
| 12mm | 100mm | 40mm | 18mm | 12mm | 10mm | 1.25 | 60mm |
| 12mm | 90mm | 40mm | 18mm | 12mm | 10mm | 1.25 | 50mm |
| 12mm | 80mm | 36mm | 18mm | 12mm | 10mm | 1.25 | 44mm |
| 12mm | 60mm | 36mm | 18mm | 12mm | 10mm | 1.25 | 24mm |
| 12mm | 70mm | 36mm | 18mm | 12mm | 10mm | 1.25 | 34mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
