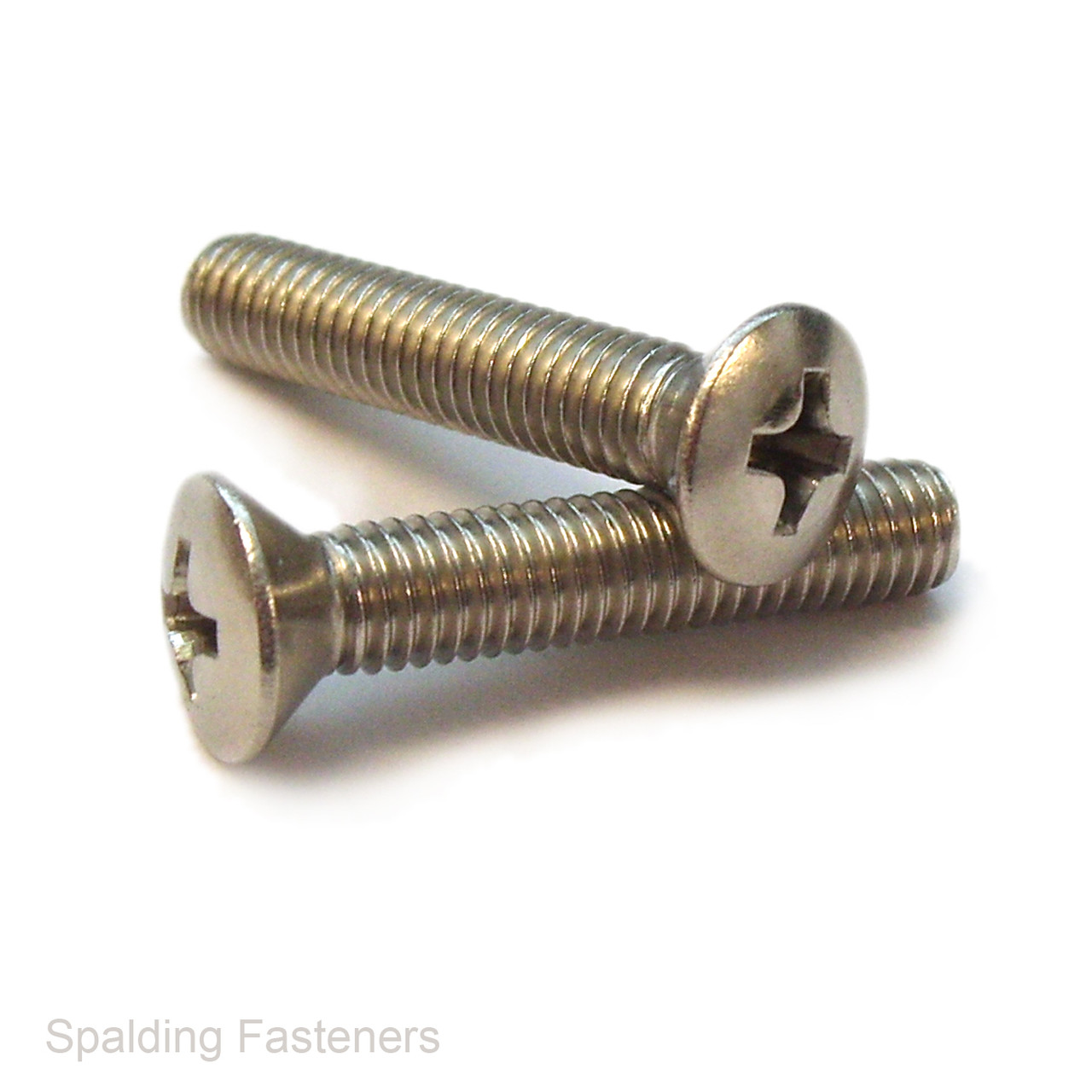

10-32 UNF A2 Stainless Steel Raised Countersunk Phillips Machine Screws
Fully threaded 10-32 UNF raised countersunk Phillips machine screws manufactured from corrosion-resistant A2 stainless steel. The fine 32 TPI thread is designed for use with a compatible 10-32 UNF nut or tapped hole.

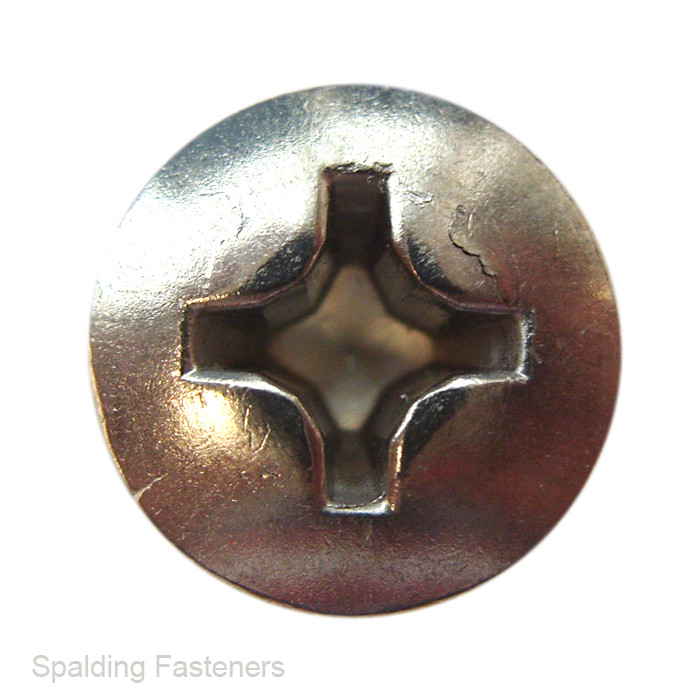

Also known as an oval countersunk head, the raised countersunk design has a tapered underside that locates in a correctly formed countersunk hole, with a gently domed section remaining above the surface. The Phillips cross recess provides convenient installation for engineering, machinery, automotive, restoration and general assembly applications.
Product specifications
- Thread size: No. 10-32 UNF
- Nominal thread diameter: 0.190"
- Thread pitch: 32 threads per inch
- Material: A2 stainless steel
- Head style: Raised countersunk / oval countersunk
- Drive type: Phillips cross recess
- Thread coverage: Fully threaded
- Length measurement: Overall length, including the head
- Dimensional reference: ASME B18.6.3
ASME reference dimensions
- Head diameter: Approximately 0.362"
- Countersunk head length: Approximately 0.116"
- Overall head height: Approximately 0.176"
- Raised head height: Approximately 0.060"
- Countersink angle: 80–82°
- Typical drive size: PH2
These are reference dimensions for comparable 10-32 raised countersunk Phillips screws to ASME B18.6.3. Please confirm them against the supplied stock if they are critical to your application.
Alternative products include our 10-32 UNF flat countersunk Phillips screws, 10-32 UNF raised countersunk slotted screws, 1/4" UNF raised countersunk Phillips screws and 1/4" UNF flat countersunk Phillips screws.
You can also view our UNC and UNF thread data guide and A2 versus A4 stainless steel guide.
Specifications are provided as a guide. If a particular measurement or standards compliance is critical, please contact us before ordering.
| A | B | C | D |
| 10-32 | 1" | * | 32 |
| 10-32 | 1/2" | * | 32 |
| 10-32 | 3/4" | * | 32 |
| 10-32 | 5/8" | * | 32 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
