Product Description

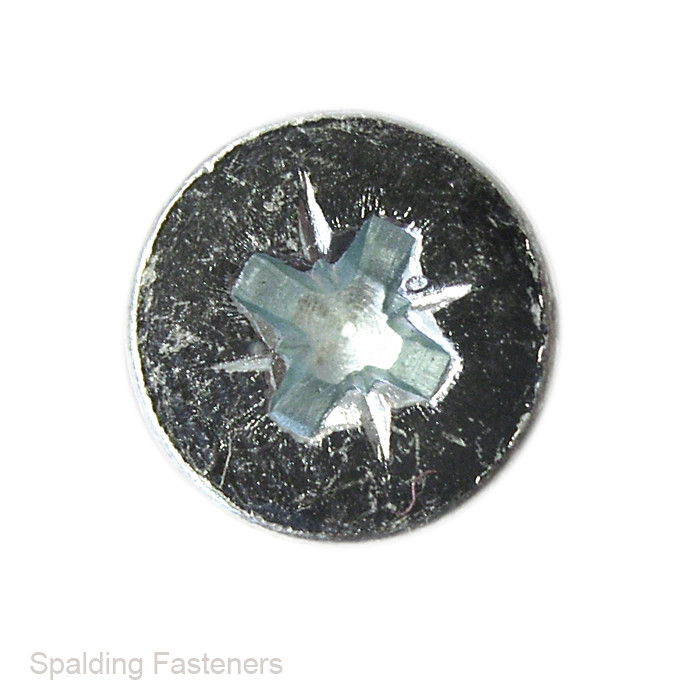

No.14 Zinc-Plated Countersunk Pozi Self-Tapping Screws
No.14 countersunk Pozi self-tapping screws manufactured from zinc-plated steel. These screws have a Type AB sharp-point thread designed to form a mating thread when installed into a suitable pilot hole.
The flat countersunk head is designed to sit flush with the surrounding surface when fitted into a correctly formed countersunk hole. The Pozi cross recess provides positive driver engagement for installation into sheet metal, plastics and other suitable materials.
Product specifications
- Screw size: No.14 / 6.3mm
- Length: Listed as 2" / 50mm
- Material: Steel
- Finish: Zinc plated
- Head style: Flat countersunk
- Drive type: Pozi cross recess
- Typical drive size: PZ3 – verify against supplied stock
- Thread form: Type AB self tapping
- Thread pitch: Approximately 1.8mm
- Head diameter: Approximately 12.4mm
- Former standard: DIN 7982
- Length measurement: Overall, including the countersunk head
Related products include our No.12 zinc-plated countersunk Pozi self tappers, No.2 zinc-plated countersunk Pozi self tappers and No.14 zinc-plated pan Pozi self tappers.
Browse the complete countersunk Pozi self-tapping screw range for alternative diameters and lengths.
A correctly sized pilot hole should be selected for the material type and thickness. Dimensions are provided as a guide; please contact us if a particular measurement or standards compliance is critical.
| A | B | C | D | E | F |
| No.14 | 6.3mm | 2" | 50mm | 1/2" | 12.4mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
