Product Description

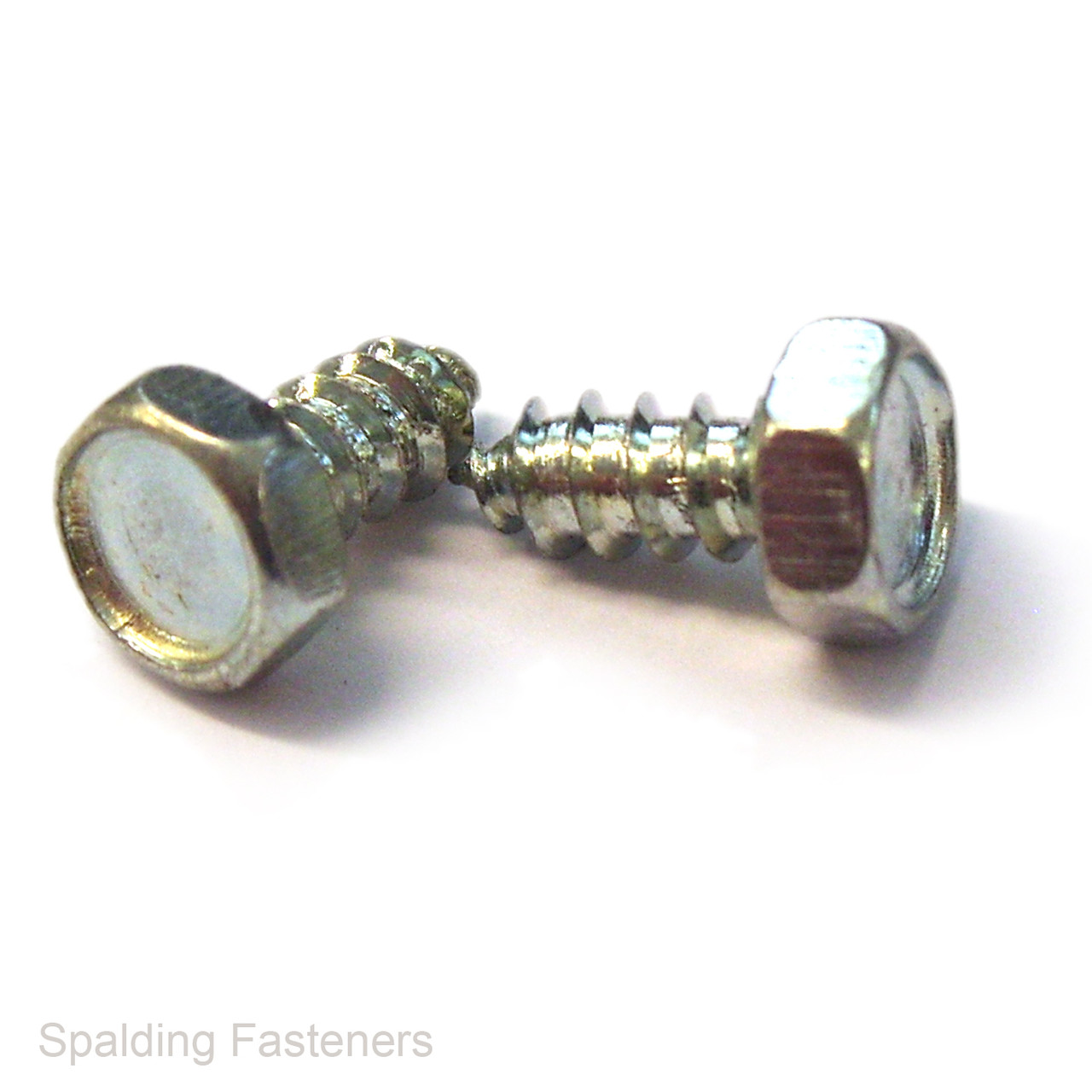

No.14 Zinc-Plated Hexagon Head Self-Tapping Screws
These No.14 hexagon head self-tapping screws are manufactured from steel with a zinc-plated finish for general-purpose corrosion resistance. The coarse self-tapping thread forms a mating thread when driven into a correctly sized pilot hole, removing the need for a separate nut or pre-tapped internal thread.
The external hexagon head allows installation with a socket, spanner or nut driver and is well suited to applications where a positive drive and higher installation torque are required. These screws have a pointed Type AB thread form, commonly designated Type C under DIN and ISO standards.
- Screw size: No.14
- Nominal thread diameter: 6.3mm
- Length: 3/4" (19mm)
- Material: Steel
- Finish: Zinc plated
- Head style: Hexagon head
- Drive size: 10mm or 13/32" across flats
- Thread form: Type AB / DIN Type C self-tapping thread
- Standard: DIN 7976 / ISO 1479
- British Standard: BS EN ISO 1479:2011
Typical Applications
- Sheet-metal fabrication and repairs
- Automotive panels, brackets and bodywork
- Electrical cabinets and equipment enclosures
- Heating, ventilation and ducting components
- General workshop and maintenance work
- Fixing into suitable plastics, composites and thin materials
Installation Guidance
Prepare a suitable pilot hole before installation. The correct hole diameter depends on the material, its thickness and the required thread engagement, so the reference hole dimension should be treated as a guide. Avoid excessive tightening, particularly in thin sheet, as this can strip the formed thread or deform the material.
These are thread-forming self-tapping screws and should not be confused with self-drilling screws. A pilot hole is normally required, particularly when fastening into steel or other hard materials.
Browse our complete hexagon head self-tapping screw range, view all self-tapping screws, or compare our No.14 zinc-plated hex head self-drilling screws.
Please note: Dimensions and pilot-hole information are provided as a guide. Where dimensions, load capacity or installation conditions are critical, please check suitability before ordering.
| A | B | C | D | E | F | G | H |
| No.14 | 6.3mm | 3/4" | 19mm | 13/32" | 10mm | 3/16" | 4.95mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
