Product Description

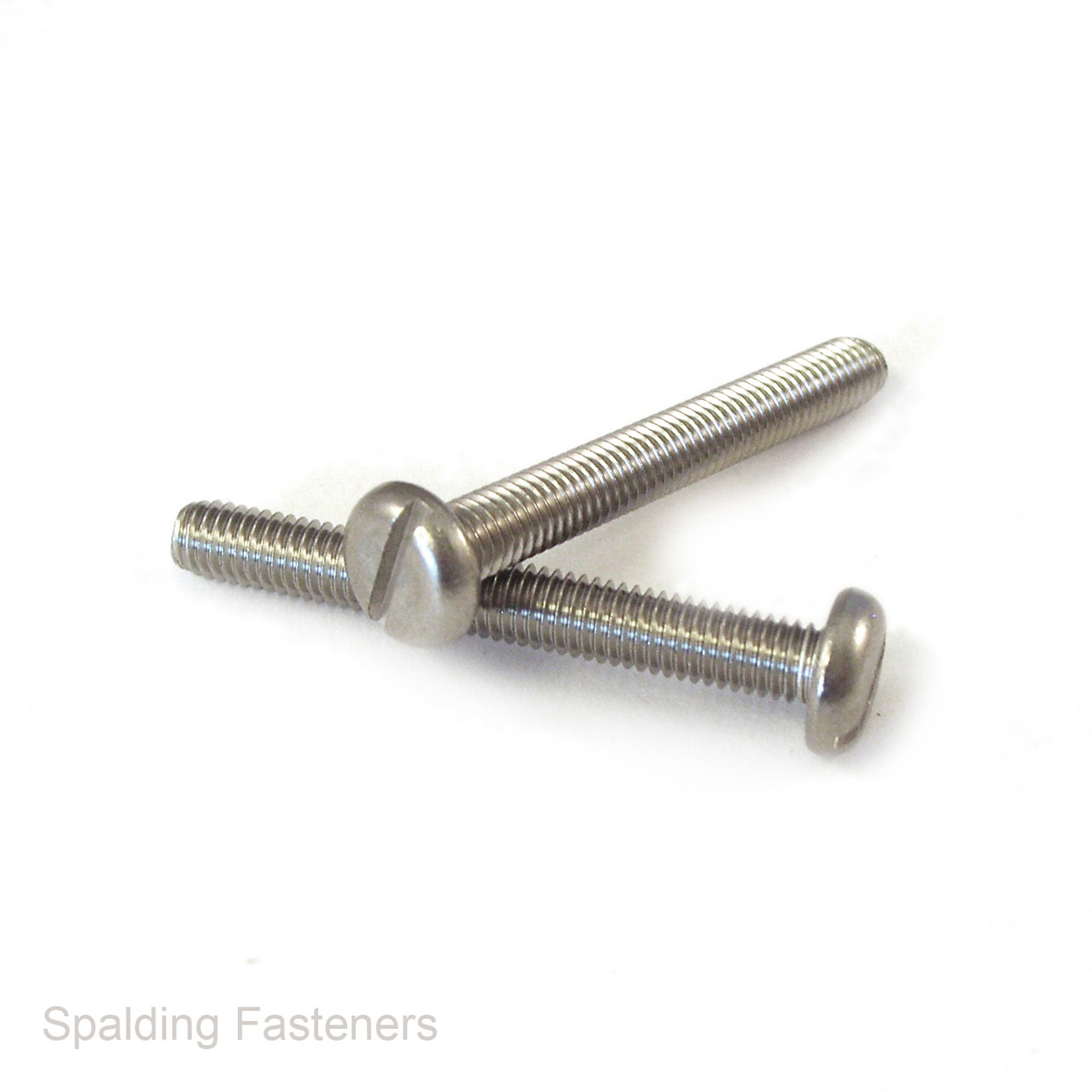

M8 A2 Stainless Steel Pan Slotted Machine Screws – DIN 85
These M8 pan head machine screws are manufactured from A2 austenitic stainless steel and feature a traditional straight slotted drive. They have a standard M8 × 1.25 metric coarse thread for use with compatible M8 nuts or tapped holes.
The broad pan head provides a larger bearing surface than a cheese head screw, while its rounded upper profile gives a neat general-purpose finish. The straight slot allows installation with a conventional flat-blade screwdriver or drive bit.
- Thread size: M8
- Thread pitch: 1.25mm metric coarse
- Material: A2 austenitic stainless steel
- Finish: Natural stainless steel
- Head style: Pan head
- Drive type: Slotted
- Head diameter: 16mm nominal
- Head height: 4.8mm nominal
- Length measurement: From beneath the head
- DIN standard: DIN 85
- ISO standard: ISO 1580:2011
- British Standard: BS EN ISO 1580:2011
Typical Applications
- Machinery and equipment assembly
- Electrical cabinets and enclosures
- Panels, brackets and guards
- Automotive and motorcycle repairs
- Furniture, fittings and restoration work
- General engineering and maintenance
Installation Guidance
Use a correctly fitting flat-blade screwdriver or slotted drive bit that fills the slot as closely as possible. An undersized driver can damage the slot or slip during tightening.
Select a screw length that provides sufficient thread engagement without bottoming in a blind tapped hole. Thread coverage may vary on longer machine screws, so check the threaded length where a fully threaded fastener is essential.
When mating stainless steel screws with stainless steel nuts or tapped components, a suitable anti-seize compound and controlled installation speed can help reduce the risk of thread galling.
A2 stainless steel provides good general corrosion resistance but is not normally the preferred choice for persistent saltwater, swimming-pool or severe chloride environments. Consider A4 stainless steel for more demanding exposure.
Browse all pan slotted machine screws, view our complete machine screw range, or find compatible nuts and washers.
Please note: Dimensions are supplied as a guide. Confirm thread coverage, dimensional compliance and mechanical property class where these are critical to the application.
| A | B | C | D | E |
| 8mm | 100mm | 16mm | 4.8mm | 1.25 |
| 8mm | 16mm | 16mm | 4.8mm | 1.25 |
| 8mm | 20mm | 16mm | 4.8mm | 1.25 |
| 8mm | 25mm | 16mm | 4.8mm | 1.25 |
| 8mm | 30mm | 16mm | 4.8mm | 1.25 |
| 8mm | 35mm | 16mm | 4.8mm | 1.25 |
| 8mm | 40mm | 16mm | 4.8mm | 1.25 |
| 8mm | 45mm | 16mm | 4.8mm | 1.25 |
| 8mm | 50mm | 16mm | 4.8mm | 1.25 |
| 8mm | 60mm | 16mm | 4.8mm | 1.25 |
| 8mm | 65mm | 16mm | 4.8mm | 1.25 |
| 8mm | 70mm | 16mm | 4.8mm | 1.25 |
| 8mm | 90mm | 16mm | 4.8mm | 1.25 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
