Product Description

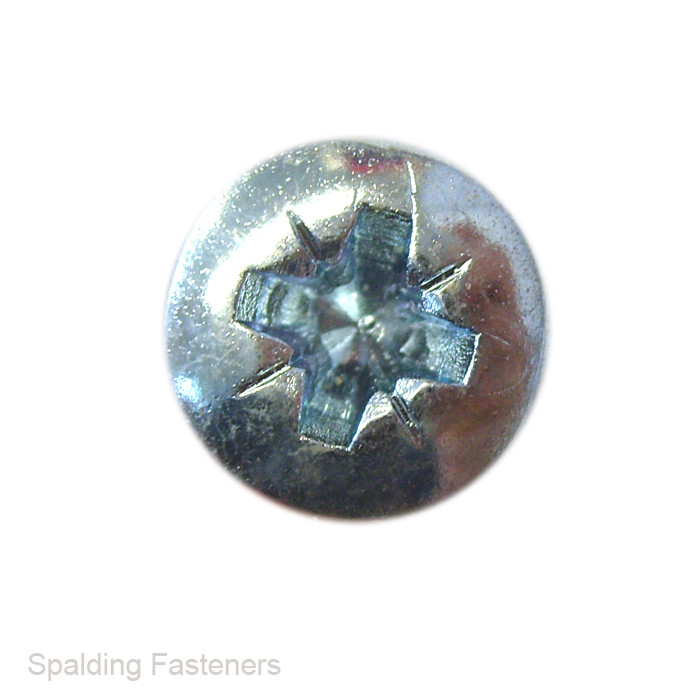

M6 Zinc Plated Steel Pan Pozi Machine Screws – DIN 7985
M6 metric coarse pan-head machine screws manufactured from steel with a bright zinc plated finish. These screws feature a Pozidriv cross recess and are designed for fastening into a corresponding M6 × 1 tapped hole or use with a compatible M6 nut.
The rounded pan head provides a broad bearing surface and a neat, low-profile finish above the assembled component. Bright zinc plating provides additional corrosion protection for dry indoor and general-purpose applications.
Product Specifications
- Thread size: M6
- Thread pitch: 1mm metric coarse
- Available lengths: 16mm, 25mm, 30mm, 40mm, 50mm, 60mm and 80mm
- Material: Steel
- Finish: Bright zinc plated
- Head style: Pan head
- Drive type: Pozidriv / cross recess type Z
- Drive size: PZ3
- Maximum head diameter: 12mm
- Maximum head height: 4.75mm
- Dimensional standard: DIN 7985
Typical Applications
- Electrical equipment and control panels
- Machinery and general engineering assemblies
- Automotive components and interior fittings
- Brackets, cabinets and metal enclosures
- Equipment repairs and maintenance
- Indoor applications requiring a broad pan-head fastener
Machine-screw length is measured from beneath the pan head to the end of the screw. Use a correctly fitting PZ3 driver to achieve proper engagement and reduce the risk of damaging the recess. Pozidriv and Phillips drives have different profiles and should not be treated as interchangeable.
Longer machine screws may have an unthreaded section depending on the manufacturer and production standard. Please contact us before ordering if the precise thread length is critical to the assembly.
Bright zinc plating improves corrosion resistance but is not intended for prolonged use in marine, highly corrosive or continuously wet environments.
Browse more machine screws, nuts and washers.
Please note: Specifications are provided as a guide. Please contact us before ordering if a particular dimension, thread length, material grade, coating specification or standard is critical to your application.
| A | B | C | D | E |
| 6mm | 16mm | 12mm | 4.75mm | 1 |
| 6mm | 25mm | 12mm | 4.75mm | 1 |
| 6mm | 30mm | 12mm | 4.75mm | 1 |
| 6mm | 40mm | 12mm | 4.75mm | 1 |
| 6mm | 50mm | 12mm | 4.75mm | 1 |
| 6mm | 60mm | 12mm | 4.75mm | 1 |
| 6mm | 80mm | 12mm | 4.75mm | 1 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
