Product Description

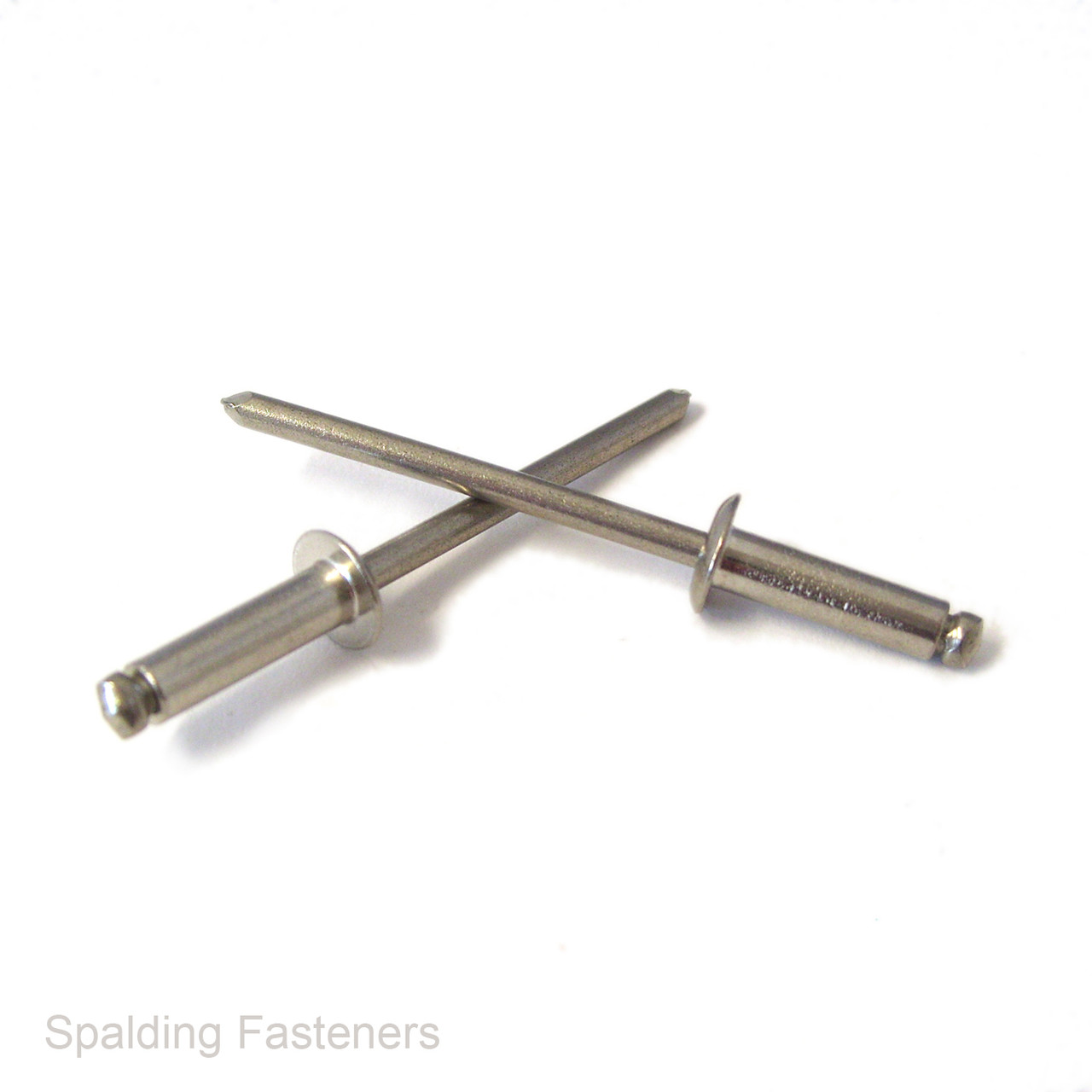

3mm A2 Stainless Steel Dome Head Pop Rivets
These 3mm open-end blind rivets feature a corrosion-resistant A2 stainless steel construction and a standard dome head. Commonly known as pop rivets or break-stem rivets, they can be installed from one side of an assembly where access to the rear is restricted.
Available in lengths from 6mm to 16mm, these rivets cover combined material thicknesses from approximately 1.5mm to 12mm. They are suitable for sheet metal, panels, brackets, enclosures and general fabrication work.
Product Specifications
- Nominal rivet diameter: 3mm
- Material: A2 stainless steel
- Rivet type: Open-end blind rivet
- Head style: Standard dome or protruding head
- Installation type: Break-pull mandrel
- Head diameter: Approximately 6.5mm
- Recommended hole diameter: Approximately 3.1mm
- Available lengths: 6mm to 16mm
- Combined grip range: Approximately 1.5mm to 12mm
- Applicable standard: ISO 15983:2002
- British Standard adoption: BS EN ISO 15983:2002
- Similar former standard: DIN 7337 Form A
Grip range: The grip range is the total combined thickness of all materials being joined. Select a rivet whose stated grip range includes the measured material thickness.
Typical Applications
- Sheet-metal fabrication
- Panels, guards and enclosures
- Automotive and motorcycle components
- Machinery and equipment repairs
- Brackets and lightweight frames
- Indoor and outdoor assemblies
Installation Information
Drill or prepare an approximately 3.1mm diameter hole through the materials being joined. Insert the rivet through the aligned holes and install it using a hand, air or battery rivet tool fitted with the correct 3mm nosepiece.
During installation, the tool pulls the mandrel through the rivet body, expanding the blind end and clamping the materials together. The mandrel then breaks at its designed breaking point.
Choose the correct grip range rather than selecting by rivet length alone. A rivet that is too short may not form correctly, while excessive rivet length can produce an unsuitable joint.
Browse our complete range of pop rivets, rivet nuts and tools and accessories.
Please note: Specifications are provided as a guide. If material combinations, grip ranges, strength values or standards compliance are critical, please contact us before ordering.
| A | B | C | D | E | F |
| 3.0mm | 10mm | 6.5mm | 5.5mm | 7mm | 3.1mm |
| 3.0mm | 12mm | 6.5mm | 7mm | 9mm | 3.1mm |
| 3.0mm | 14mm | 6.5mm | 9mm | 1mm | 3.1mm |
| 3.0mm | 16mm | 6.5mm | 10mm | 12mm | 3.1mm |
| 3.0mm | 6mm | 6.5mm | 1.5mm | 3.5mm | 3.1mm |
| 3.0mm | 8mm | 6.5mm | 3.5mm | 5mm | 3.1mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
