M5 A2 Stainless Socket Cap Screws ISO 4762

Product Description

M5 A2 Stainless-Steel Socket Cap Set Screws

These M5 socket cap set screws are manufactured from A2 stainless steel and feature a standard M5 × 0.8 metric coarse thread. They are fully threaded and available in selected lengths from 8mm to 35mm.

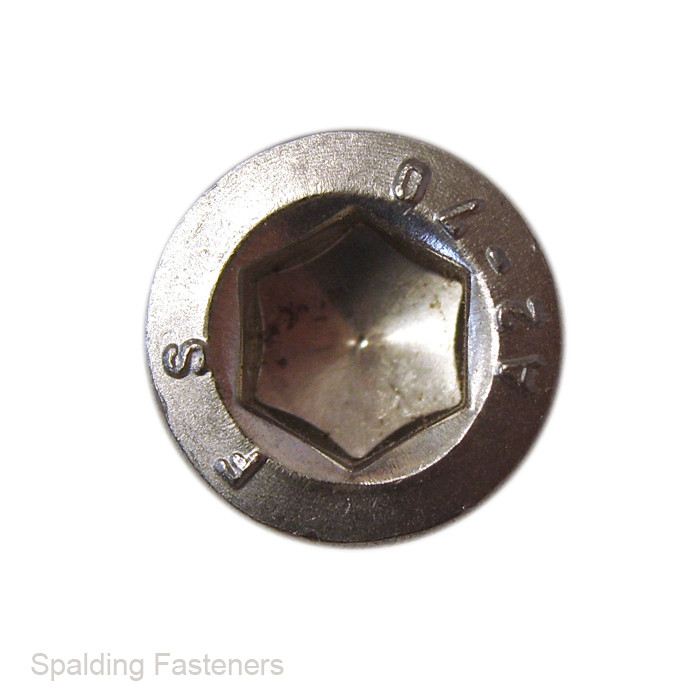

The cylindrical socket cap head incorporates a 4mm internal hexagon drive, providing secure tool engagement while allowing installation where access around the fastener head is restricted. A2 stainless steel provides good general-purpose corrosion resistance for indoor and moderately exposed applications.

Product Details

• Thread size: M5
• Thread pitch: 0.8mm standard metric coarse
• Available lengths: 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm and 35mm
• Threading: Fully threaded
• Head type: Cylindrical socket cap
• Drive type: 4mm internal hexagon socket
• Head diameter: 8.5mm
• Head height: 5mm
• Material: A2 stainless steel
• Finish: Natural stainless steel
• Dimensional standard: DIN 912 / ISO 4762 pattern
• British adoption: BS EN ISO 4762:2004

Features and Benefits

• A2 stainless steel provides good general-purpose corrosion resistance
• Standard M5 × 0.8 coarse thread for broad compatibility
• Fully threaded design maximises usable thread engagement
• Compact socket cap head is suitable for restricted spaces
• 4mm internal hexagon drive provides secure tool engagement
• Head dimensions correspond with the DIN 912 / ISO 4762 pattern
• Choice of eight lengths from 8mm to 35mm

Typical Applications

Suitable for machinery, automotive components, instrumentation, electronics, brackets, enclosures, tooling, jigs, fixtures and general engineering assemblies requiring a fully threaded M5 stainless-steel fastener.

Installation Guidance

Confirm that the mating component has a standard M5 × 0.8 metric thread. These screws are not interchangeable with M5 fine-pitch fasteners. Screw length is measured from beneath the socket cap head to the end of the fastener.

Use a correctly fitting 4mm hex key and apply a tightening torque suitable for the joint, mating material and application. Avoid using carbon-steel torque figures unless the strength class of the stainless-steel screw has been confirmed.

Stainless-steel threads can be susceptible to galling during installation. Using a suitable anti-seize compound and installing at a controlled speed can help reduce this risk.

A2 stainless steel is suitable for many general-purpose applications but may not be appropriate for prolonged exposure to salt water, marine environments or aggressive chemicals. A4 stainless steel should be considered where greater corrosion resistance is required.

Please note that published dimensions and specifications are intended as a guide. Confirm any safety-critical or application-critical requirements before ordering.

Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
