Product Description
No.10-32 UNF A2 Stainless-Steel Socket Cap Screws
These No.10-32 UNF socket cap screws are manufactured from A2 stainless steel and are fully threaded along their available length. The 32 threads per inch Unified National Fine thread makes them suitable for compatible imperial machinery, equipment and engineering assemblies.

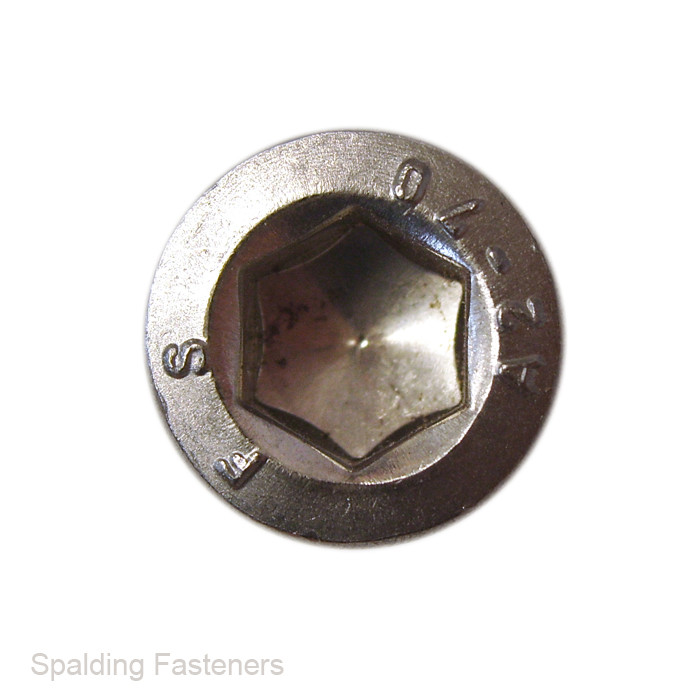

The cylindrical socket cap head incorporates a 5/32-inch internal hexagon drive, providing secure tool engagement while allowing installation where access around the fastener head is restricted.
Product Details
- Thread size: No.10-32 UNF
- Nominal major diameter: 0.1900"
- Threads per inch: 32 TPI
- Thread series: UNF – Unified National Fine
- Available lengths: 1/4", 1/2", 3/4" and 1"
- Threading: Fully threaded
- Head type: Cylindrical socket cap
- Drive type: 5/32" internal hexagon socket
- Published head diameter: Approximately 0.31"
- Published head height: Approximately 0.19"
- Material: A2 stainless steel
- Finish: Natural stainless steel
- Dimensional pattern: ASME B18.3
Available Sizes and Dimensions
| Thread Size | Length | Head Diameter | Head Height | Hex Key Size | TPI |
|---|---|---|---|---|---|
| No.10-32 UNF | 1/4" | Approx. 0.31" | Approx. 0.19" | 5/32" | 32 |
| No.10-32 UNF | 1/2" | Approx. 0.31" | Approx. 0.19" | 5/32" | 32 |
| No.10-32 UNF | 3/4" | Approx. 0.31" | Approx. 0.19" | 5/32" | 32 |
| No.10-32 UNF | 1" | Approx. 0.31" | Approx. 0.19" | 5/32" | 32 |
Features and Benefits
- A2 stainless steel provides good general-purpose corrosion resistance
- No.10-32 UNF thread for compatible imperial assemblies
- Fine 32 TPI thread provides precise adjustment and secure clamping
- Fully threaded design maximises usable thread engagement
- Compact socket cap head is suitable for restricted spaces
- 5/32" internal hexagon drive provides secure tool engagement
- ASME B18.3-style imperial socket cap configuration
Typical Applications
Suitable for imperial machinery, automotive components, instrumentation, electronics, brackets, enclosures, tooling and general engineering assemblies requiring a fully threaded No.10-32 UNF stainless-steel fastener.
Installation Guidance
Confirm that the mating component has a No.10-32 UNF thread before installation. These screws are not interchangeable with No.10-24 UNC or similarly sized metric threads.
Screw length is measured from beneath the socket cap head to the end of the fastener. Use a correctly fitting 5/32-inch hex key and apply a tightening torque suitable for the joint, mating material and application.
Stainless-steel threads can be susceptible to galling. Using a suitable anti-seize compound and installing at a controlled speed can help reduce this risk.
A2 stainless steel is suitable for many general-purpose applications but may not be appropriate for prolonged salt-water, marine or aggressive chemical exposure. Consider A4 stainless steel where greater corrosion resistance is required.
Please note that the published head diameter and height are rounded guide dimensions. Confirm any dimensional, safety-critical or application-critical requirements before ordering.
