Product Description

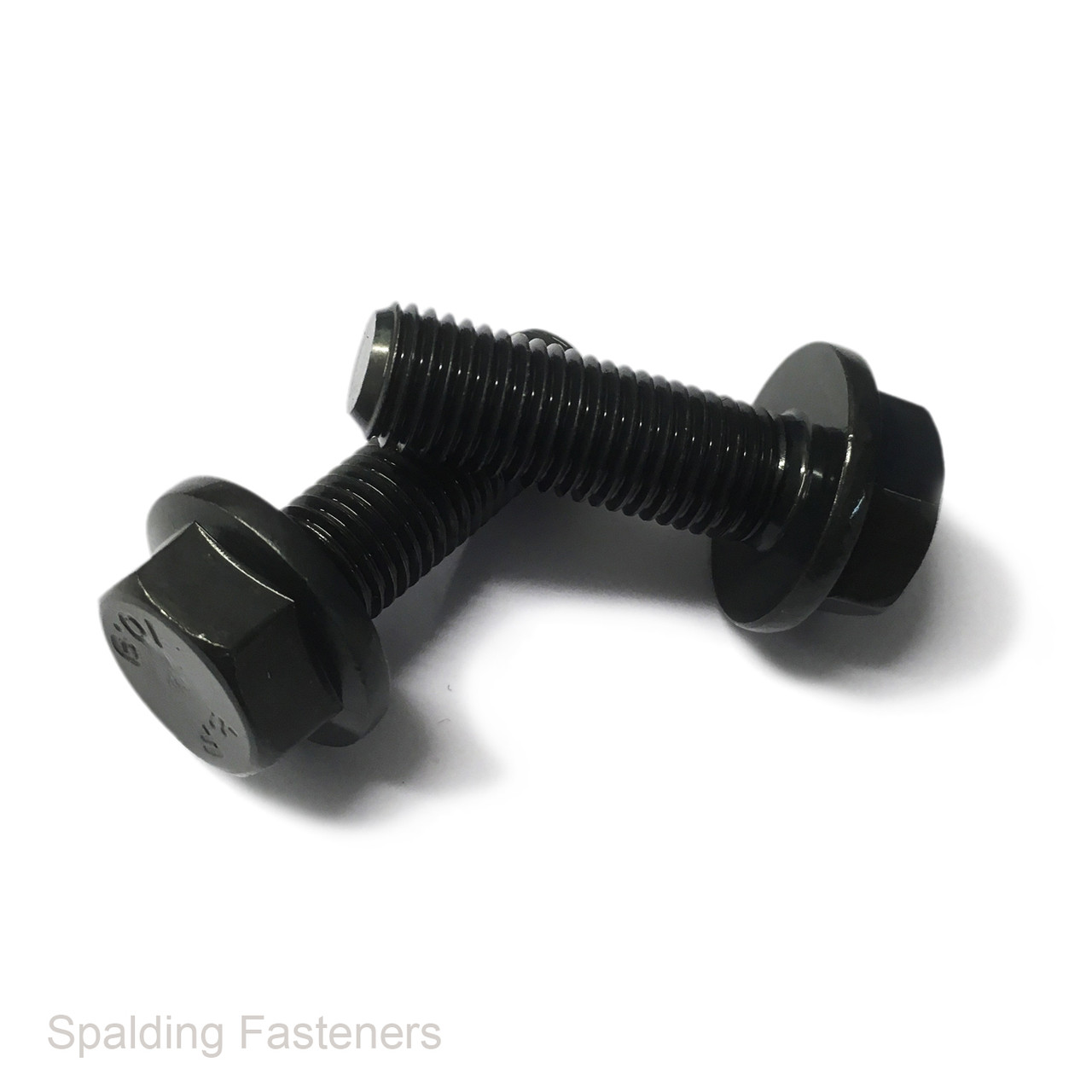

M8 x 1 Metric Fine 10.9 Grade Self Colour Steel Hex Flange Set Screws
High-tensile M8 metric fine hexagon flange set screws manufactured from property class 10.9 steel and supplied with a plain self colour finish. The integral flange distributes the clamping load over a wider area and can remove the need for a separate flat washer in suitable applications.
These fasteners have an M8 x 1 fine-pitch right-hand thread and are suitable for automotive, machinery, engineering and equipment maintenance applications requiring a strong, compact flanged fastening.
Key Features
- M8 metric fine thread
- 1mm thread pitch
- High-tensile property class 10.9 steel
- Plain self colour surface finish
- Hexagon driving head
- Integral load-spreading flange
- Right-hand thread
- Set screw pattern
- Available in packs from 1 to 1,000
Available Sizes
| Thread Size | Thread Pitch | Length | Property Class | Finish |
|---|---|---|---|---|
| M8 | 1mm | 25mm | 10.9 | Self colour |
| M8 | 1mm | 30mm | 10.9 | Self colour |
Standards Information
ISO 15072, adopted in the UK as BS ISO 15072, is the relevant standard for small-series hexagon flange fasteners with metric fine threads. It includes M8 x 1 fasteners in property class 10.9.
Property Class 10.9
Property class 10.9 provides high tensile and proof strength for demanding mechanical joints. The mating nut or internally threaded component must have an M8 x 1 thread and sufficient strength for the intended assembly.
Metric Fine Thread
M8 x 1 is a metric fine thread. It must not be confused with the standard M8 coarse thread, which normally has a 1.25mm pitch. An M8 x 1 fastener will only fit a matching M8 x 1 nut or internally threaded component.
Benefits of a Flanged Head
- Distributes the clamping force over a wider surface area
- Can cover slightly enlarged or slotted mounting holes
- Can remove the need for a separate washer in suitable joints
- Provides a compact fastening arrangement
Self Colour Finish
Self colour steel has no protective zinc coating and can develop surface corrosion when exposed to moisture. Apply a suitable oil, coating or other corrosion protection when the fasteners will be used in damp or exposed conditions.
Typical Applications
- Automotive and vehicle assemblies
- Engine and transmission components
- Machinery and industrial equipment
- Agricultural and construction machinery
- Fabricated steel assemblies
- Maintenance and repair work
Installation Information
Confirm that the mating component is threaded M8 x 1 before installation. Tightening torque should be selected for the joint design, lubrication, mating material and operating conditions rather than relying on one universal torque figure.
The current listing does not state whether the underside of the flange is plain or serrated. Please confirm the flange-face design before ordering when this feature is important.
