Product Description

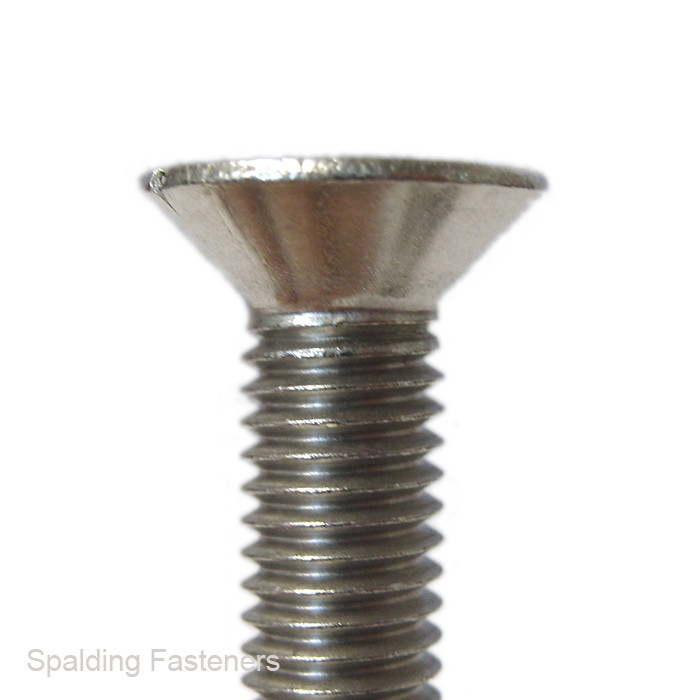

M5 metric coarse A2 stainless steel countersunk pozi machine screws to DIN 965, suitable for use with metric nuts, tapped holes and threaded inserts.
These machine screws feature a countersunk head for a flush finish when fitted into a countersunk hole, with a pozi drive for easy installation using standard pozi screwdrivers or bits. Manufactured from A2 stainless steel, also known as 304 stainless steel, they offer good corrosion resistance for engineering, maintenance, repair and general fastening applications.
- M5 metric coarse thread machine screws
- A2 stainless steel, also known as 304 stainless steel
- DIN 965 countersunk pozi machine screw pattern
- Countersunk head for flush fitting

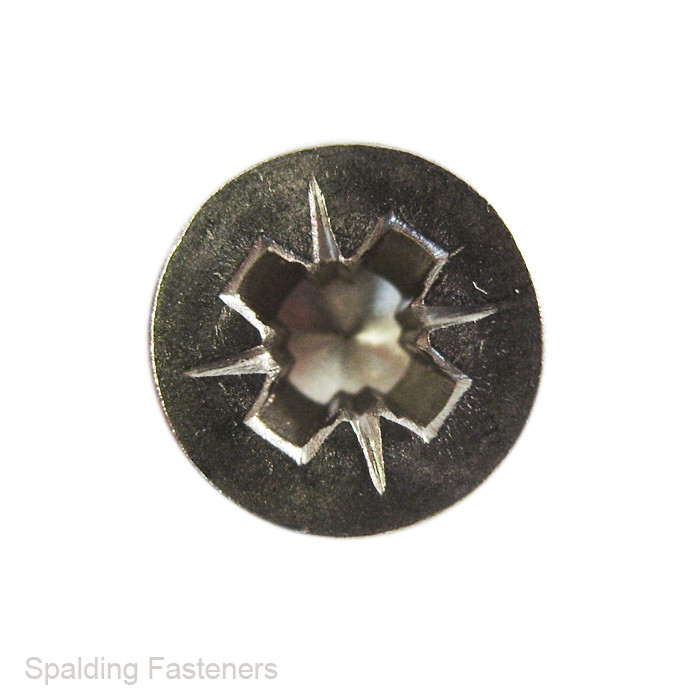

- Pozi drive
- M5 x 0.8mm standard metric coarse thread
- Available in lengths from 10mm to 60mm
- Suitable for metric nuts, tapped holes and threaded inserts
| A | B | C | D | E |
| 5mm | 10mm | 9.2mm | 2.5mm | 0.8 |
| 5mm | 12mm | 9.2mm | 2.5mm | 0.8 |
| 5mm | 16mm | 9.2mm | 2.5mm | 0.8 |
| 5mm | 20mm | 9.2mm | 2.5mm | 0.8 |
| 5mm | 25mm | 9.2mm | 2.5mm | 0.8 |
| 5mm | 30mm | 9.2mm | 2.5mm | 0.8 |
| 5mm | 40mm | 9.2mm | 2.5mm | 0.8 |
| 5mm | 50mm | 9.2mm | 2.5mm | 0.8 |
| 5mm | 60mm | 9.2mm | 2.5mm | 0.8 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
