Product Description

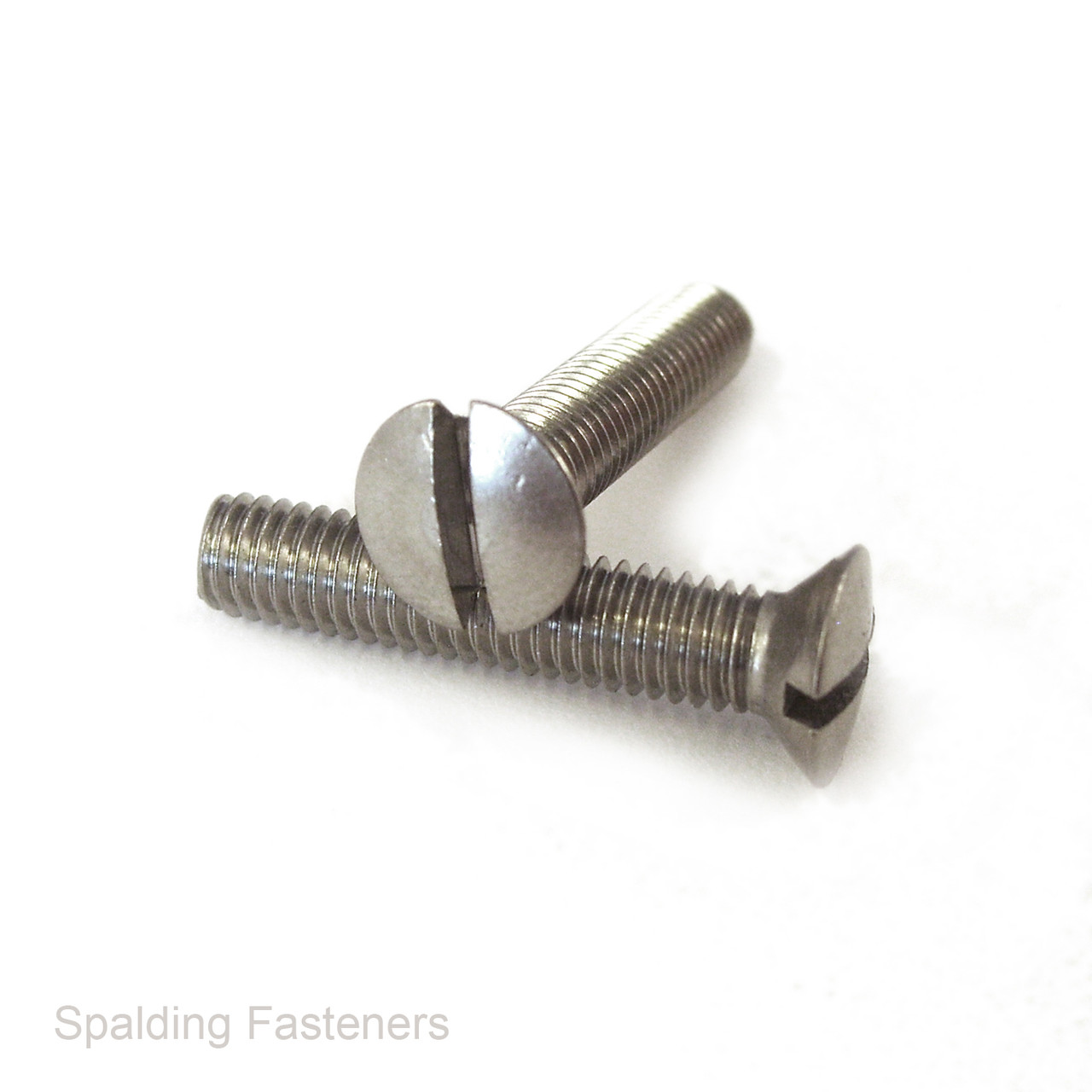

M5 A2 Stainless Raised Countersunk Slotted Machine Screws
M5 raised countersunk slotted machine screws manufactured from corrosion-resistant A2 stainless steel. The countersunk section seats into the prepared hole while the rounded top remains slightly raised above the surface.
Key Features
- M5 x 0.8 metric coarse thread
- A2 stainless steel
- Slotted drive
- Raised countersunk head
- Available lengths: 16mm, 20mm, 25mm, 30mm and 40mm
- Pack sizes from 1 to 1,000
Dimensions
- Thread diameter: 5mm
- Thread pitch: 0.8mm
- Head diameter: 9.2mm
Standards
Manufactured to the DIN 964 pattern. The current corresponding standard is ISO 2010 and BS EN ISO 2010:2011.
Raised countersunk screw length is measured from the top of the head to the end of the screw. Confirm the mating thread is M5 x 0.8 before installation.
Useful Links
- View all machine screws
- M3 stainless raised countersunk slotted screws
- M4 stainless raised countersunk slotted screws
- M6 stainless raised countersunk slotted screws
| A | B | C | D |
| 5mm | 16mm | 9.2mm | 0.8 |
| 5mm | 20mm | 9.2mm | 0.8 |
| 5mm | 25mm | 9.2mm | 0.8 |
| 5mm | 40mm | 9.2mm | 0.8 |
| 5mm | 30 | 9.2mm | 0.8 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
