Product Description

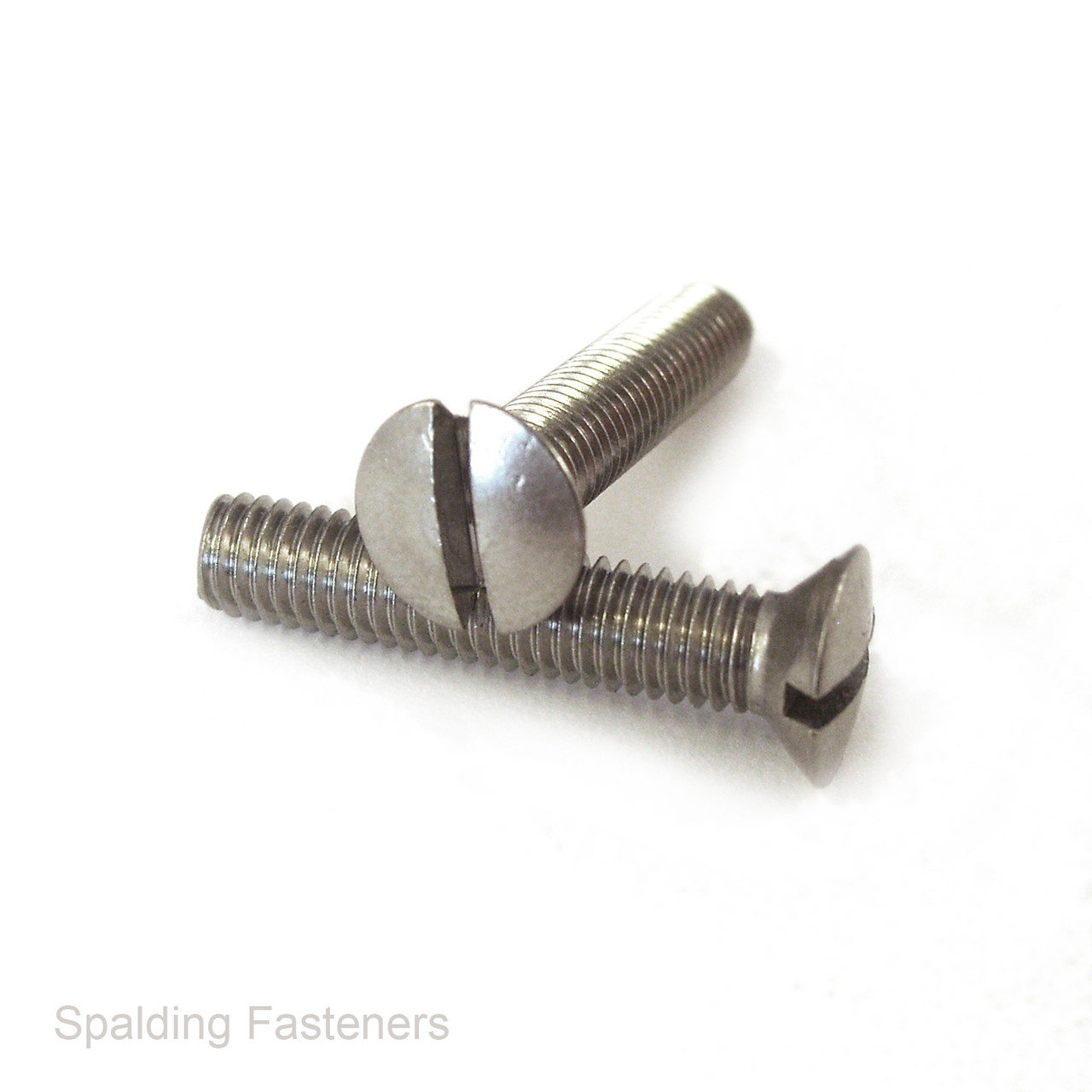

M8 A2 Stainless Raised Countersunk Slotted Machine Screws
M8 raised countersunk slotted machine screws manufactured from corrosion-resistant A2 stainless steel. The countersunk section seats into the prepared hole while the rounded top remains slightly raised above the surface.
Key Features
- M8 x 1.25 metric coarse thread
- A2 stainless steel
- Slotted drive
- Raised countersunk head
- Available length: 50mm
- Pack sizes from 1 to 1,000
Dimensions
- Thread diameter: 8mm
- Thread pitch: 1.25mm
- Head diameter: 14.5mm
Standards
Manufactured to the DIN 964 pattern. The current corresponding standard is ISO 2010 and BS EN ISO 2010:2011.
Raised countersunk screw length is measured from the top of the head to the end of the screw. Confirm the mating thread is M8 x 1.25 before installation.
Useful Links
- View all machine screws
- M5 stainless raised countersunk slotted screws
- M6 stainless raised countersunk slotted screws
- M8 stainless raised countersunk Pozi screws
| A | B | C | D |
| 8mm | 50mm | 14.5mm | 1.25 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
