Product Description

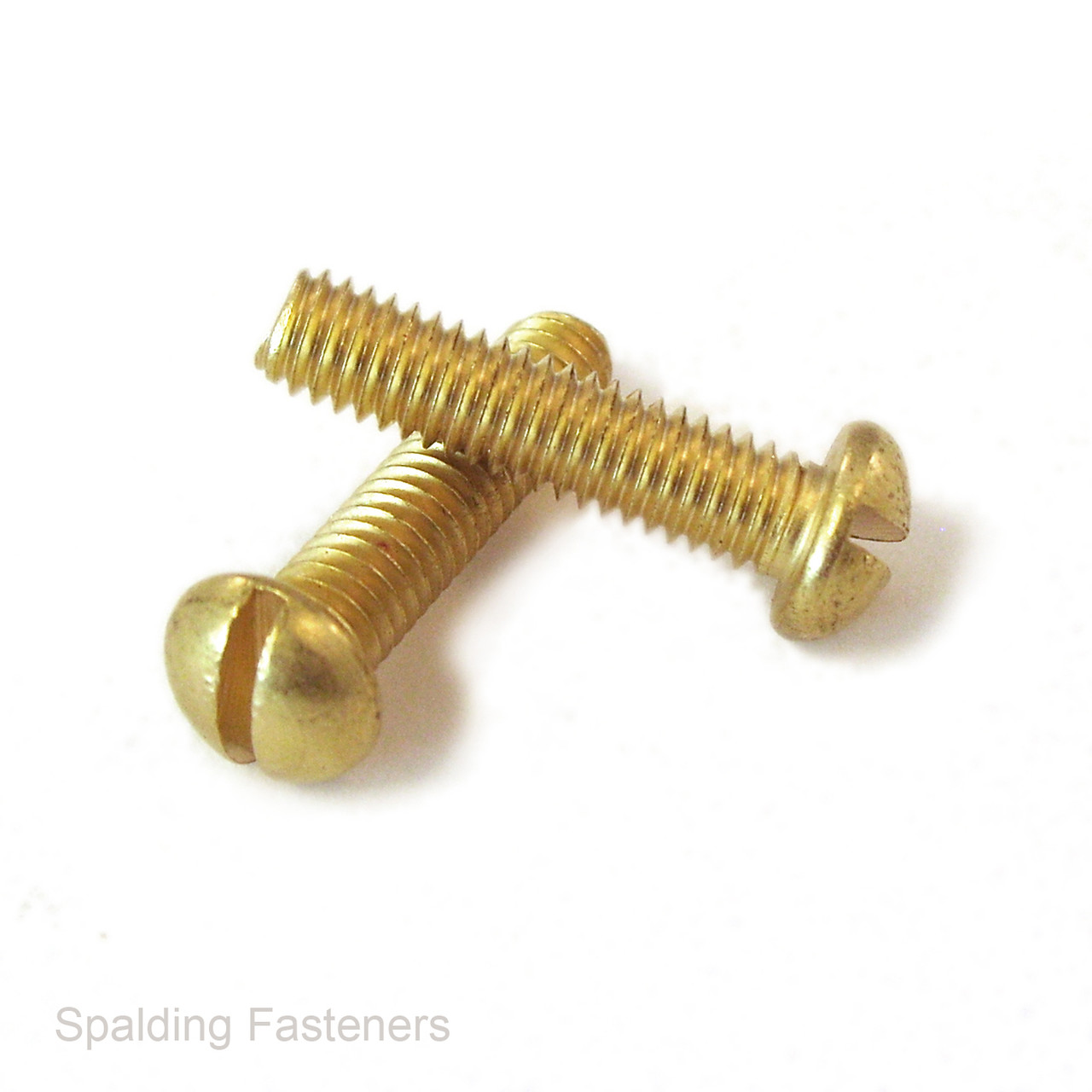

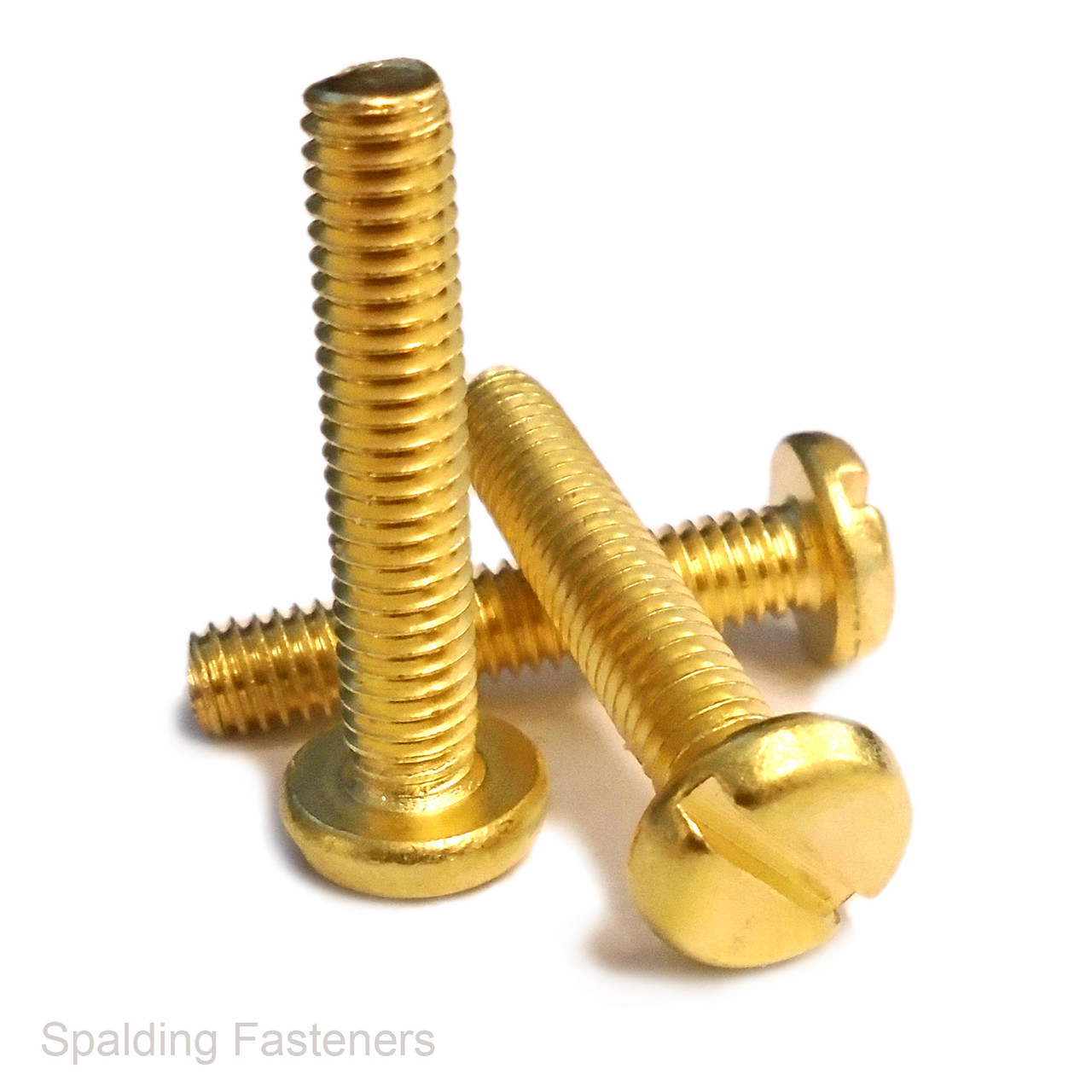

M2.5 Brass Pan Head Slotted Machine Screws
M2.5 slotted pan head machine screws manufactured from solid brass. The rounded pan head provides a neat finish and a broad bearing surface.
Key Features
- M2.5 x 0.45 metric coarse thread
- Solid brass construction
- Slotted drive
- Rounded pan head
- Available lengths: 6mm and 12mm
- Pack sizes from 5 to 1,000
Dimensions
- Thread diameter: 2.5mm
- Thread pitch: 0.45mm
- Head diameter: 4.8mm
- Head height: 1.8mm
Standards
Manufactured to the DIN 85 pattern. The current corresponding standard is ISO 1580 and BS EN ISO 1580:2011.
Screw length is measured from beneath the head to the end of the threaded section. Confirm the mating thread is M2.5 x 0.45 before installation.
Useful Links
- View all machine screws
- M2 brass pan head slotted screws
- M3 brass pan head slotted screws
- M4 brass pan head slotted screws
| A | B | C | D | E |
| 2.5mm | 12mm | 4.8mm | 1.8mm | 0.45 |
| 2.5mm | 6mm | 4.8mm | 1.8mm | 0.45 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
