Product Description

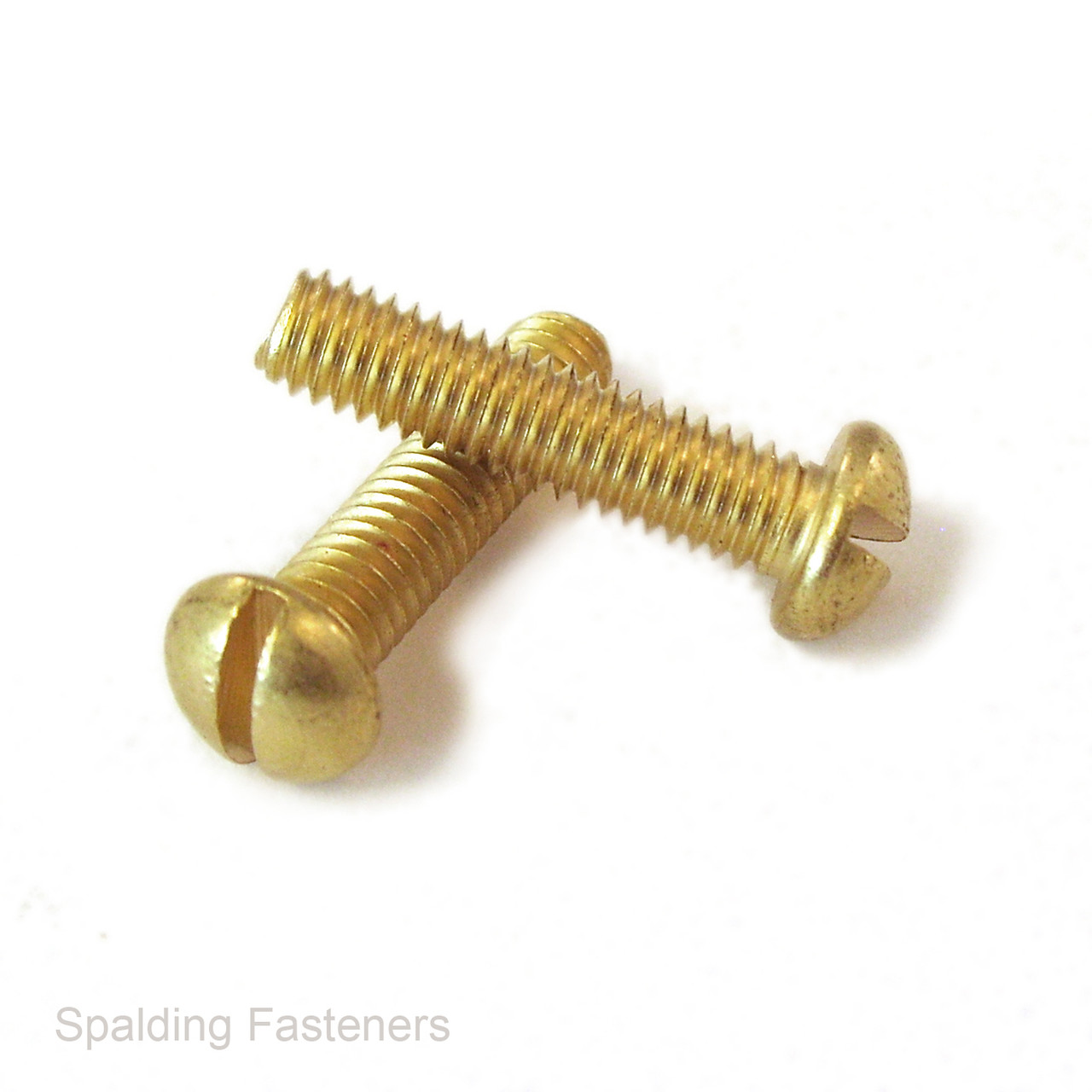

M3 Brass Pan Head Slotted Machine Screws
M3 slotted pan head machine screws manufactured from solid brass. The rounded pan head provides a neat finish and a broad bearing surface.
Key Features
- M3 x 0.5 metric coarse thread
- Solid brass construction
- Slotted drive
- Rounded pan head
- Available lengths: 10mm, 12mm, 16mm, 20mm, 25mm, 30mm and 40mm
- Pack sizes from 5 to 1,000
Dimensions
- Thread diameter: 3mm
- Thread pitch: 0.5mm
- Head diameter: 6mm
- Head height: 1.8mm
Standards
Manufactured to the DIN 85 pattern. The current corresponding standard is ISO 1580 and BS EN ISO 1580:2011.
Screw length is measured from beneath the head to the end of the threaded section. Confirm the mating thread is M3 x 0.5 before installation.
Useful Links
- View all machine screws
- M2 brass pan head slotted screws
- M2.5 brass pan head slotted screws
- M4 brass pan head slotted screws
| A | B | C | D | E |
| 3mm | 10mm | 6mm | 1.8mm | 0.5 |
| 3mm | 12mm | 6mm | 1.8mm | 0.5 |
| 3mm | 16mm | 6mm | 1.8mm | 0.5 |
| 3mm | 20mm | 6mm | 1.8mm | 0.5 |
| 3mm | 25mm | 6mm | 1.8mm | 0.5 |
| 3mm | 30mm | 6mm | 1.8mm | 0.5 |
| 3mm | 40mm | 6mm | 1.8mm | 0.5 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
