Product Description

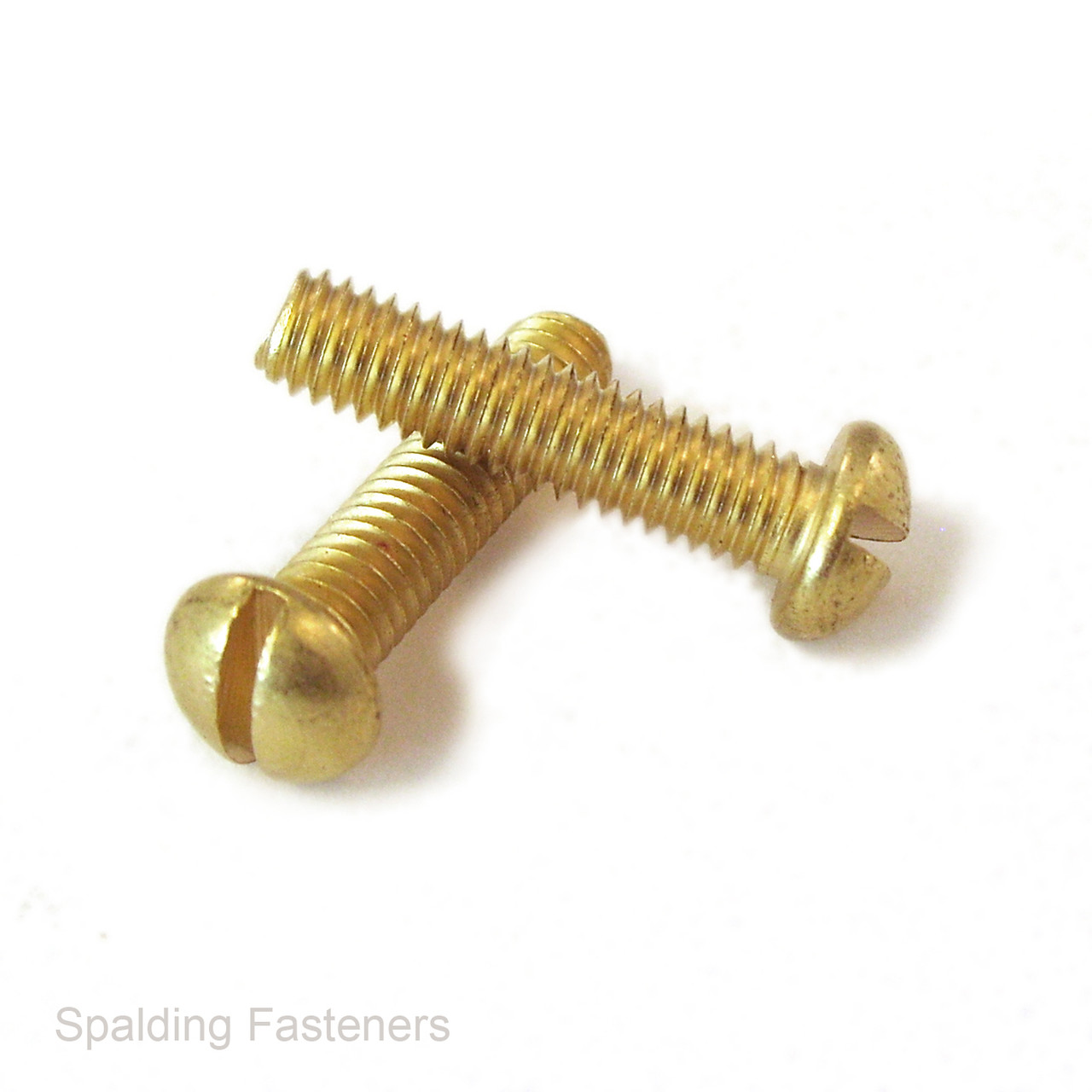

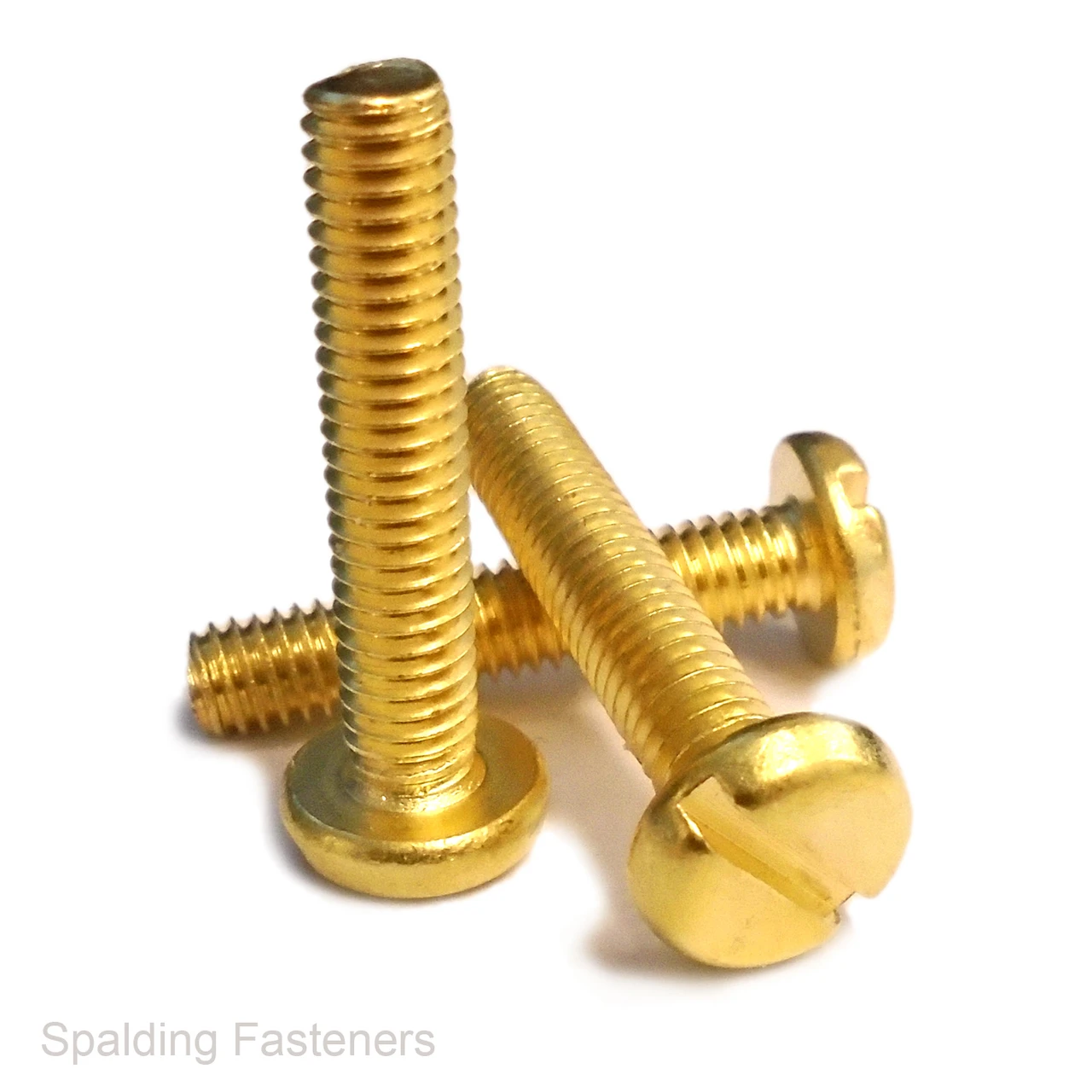

M4 Brass Pan Head Slotted Machine Screws
M4 slotted pan head machine screws manufactured from solid brass. The rounded pan head provides a neat finish and a broad bearing surface.
Key Features
- M4 x 0.7 metric coarse thread
- Solid brass construction
- Slotted drive
- Rounded pan head
- Available lengths: 12mm, 20mm, 25mm, 35mm and 40mm
- Pack sizes from 5 to 1,000
Dimensions
- Thread diameter: 4mm
- Thread pitch: 0.7mm
- Head diameter: 8mm
- Head height: 2.4mm
Standards
Manufactured to the DIN 85 pattern. The current corresponding standard is ISO 1580 and BS EN ISO 1580:2011.
Screw length is measured from beneath the head to the end of the threaded section. Confirm the mating thread is M4 x 0.7 before installation.
Useful Links
- View all machine screws
- M2.5 brass pan head slotted screws
- M3 brass pan head slotted screws
- M5 brass pan head slotted screws
| A | B | C | D | E |
| 4mm | 12mm | 8mm | 2.4mm | 0.7 |
| 4mm | 20mm | 8mm | 2.4mm | 0.7 |
| 4mm | 25mm | 8mm | 2.4mm | 0.7 |
| 4mm | 35mm | 8mm | 2.4mm | 0.7 |
| 4mm | 40mm | 8mm | 2.4mm | 0.7 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
