Product Description

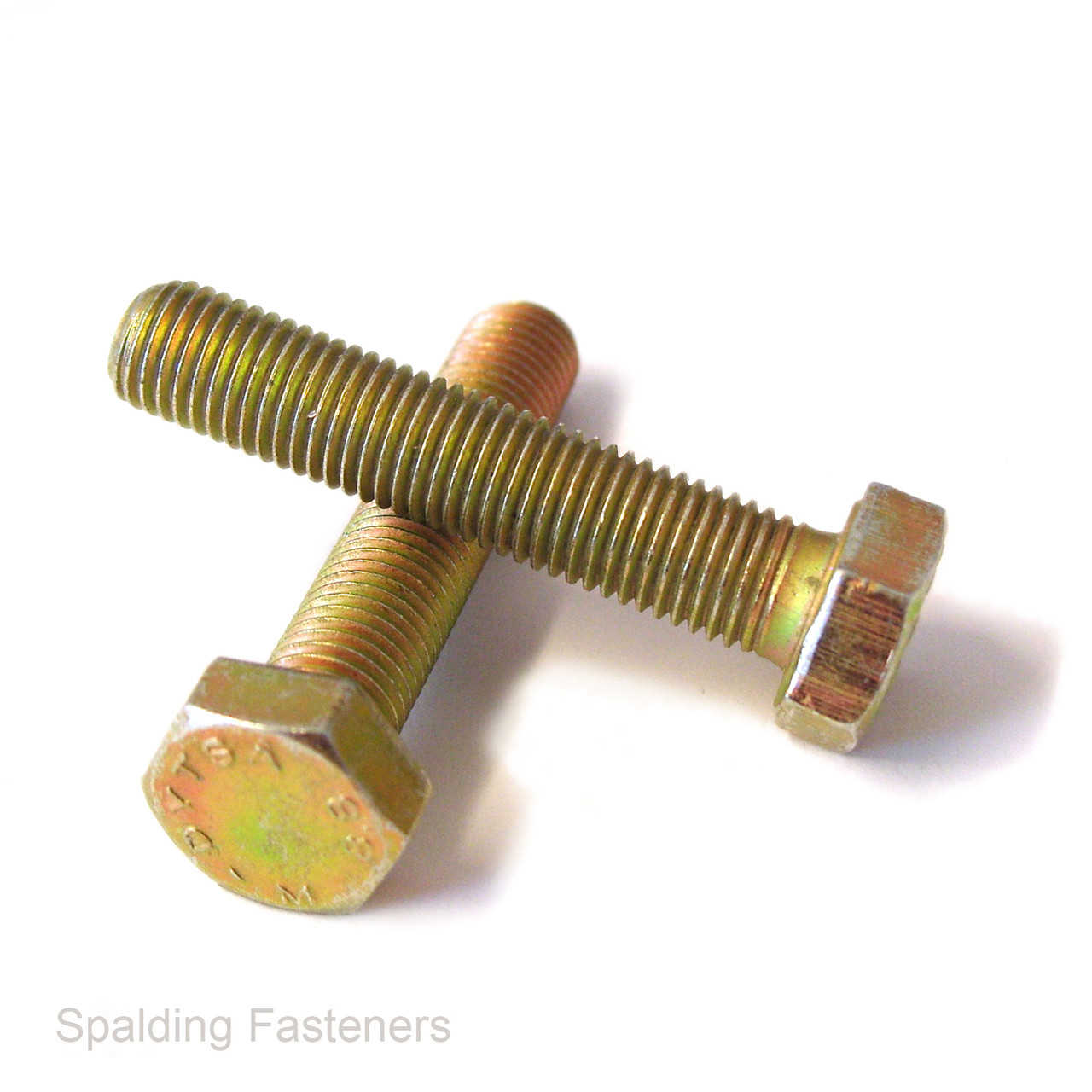

M14 x 1.5 Grade 8.8 Yellow Zinc Hex Set Screws
M14 x 1.5 metric fine hexagon head set screws manufactured from grade 8.8 high tensile steel with a yellow zinc plated finish. These screws are fully threaded to provide maximum adjustment and engagement.
Key Features
- M14 x 1.5 metric fine thread
- Grade 8.8 high tensile steel
- Yellow zinc plated finish
- Hexagon head
- Fully threaded design
- Available lengths: 25mm, 30mm, 40mm, 50mm and 60mm
- Pack sizes from 1 to 1,000
Dimensions
- Thread diameter: 14mm
- Thread pitch: 1.5mm
- Spanner size: 22mm
- Head height: 8.8mm
Standards
Manufactured to the DIN 961 pattern. The current corresponding standard is ISO 8676 and BS EN ISO 8676:2022.
Screw length is measured from beneath the hexagon head to the end of the screw. Confirm that the mating nut or threaded component has an M14 x 1.5 fine thread.
Useful Links
- M10 metric fine yellow zinc hex set screws
- M12 metric fine yellow zinc hex set screws
- M16 metric fine yellow zinc hex set screws
- Metric thread data guide
| A | B | C | D | E |
| 14mm | 25mm | 22mm | 8.8mm | 1.5 |
| 14mm | 40mm | 22mm | 8.8mm | 1.5 |
| 14mm | 50mm | 22mm | 8.8mm | 1.5 |
| 14mm | 60mm | 22mm | 8.8mm | 1.5 |
| 14mm | 30mm | 22mm | 8.8mm | 1.5 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
