Product Description

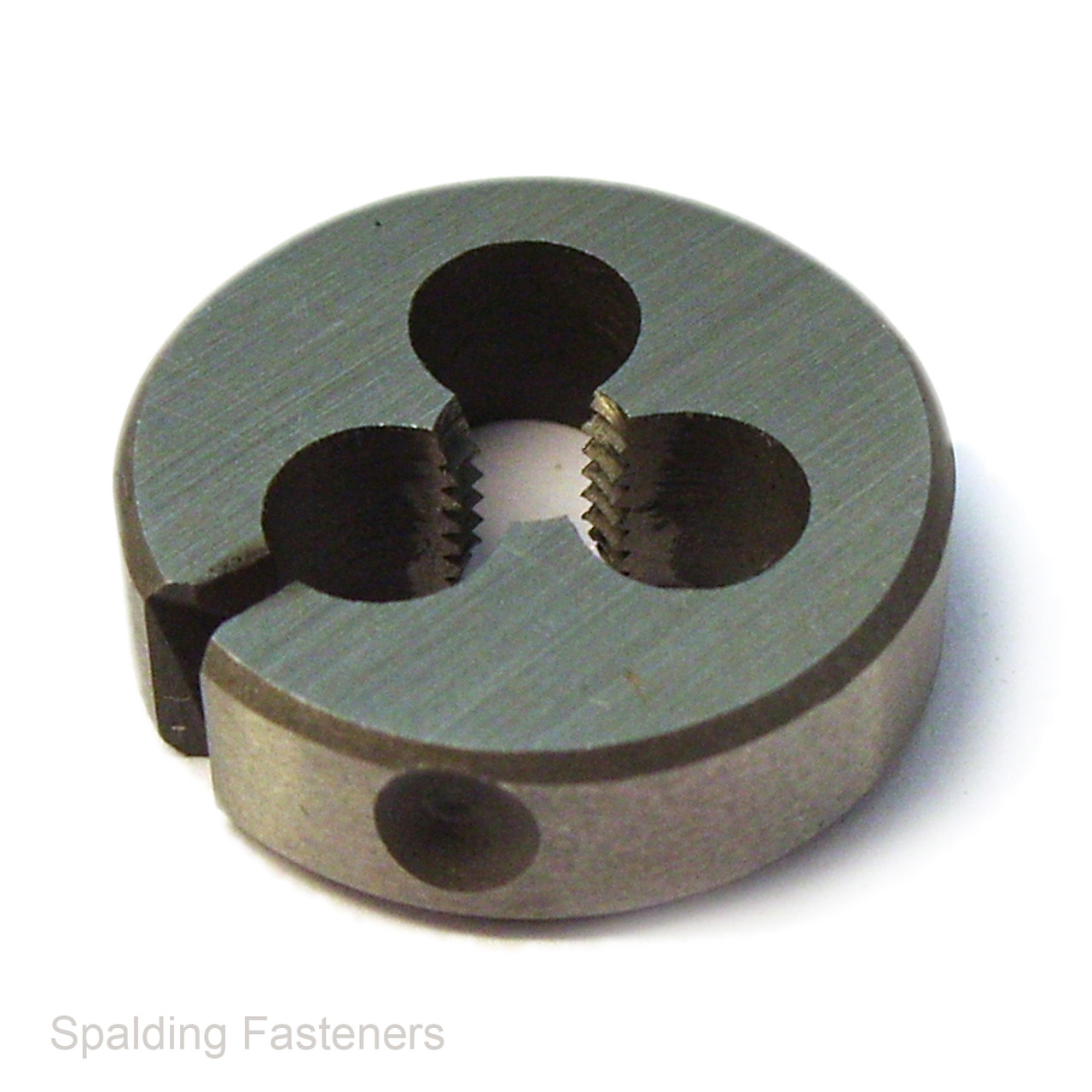

13/16 Inch UNC High Speed Steel Split Dies
UK made high speed steel circular split dies for cutting new UNC external threads. They can also be used for chasing and restoring suitable existing threads. Each die has a 13/16 inch outside diameter for use with a compatible die holder.
Available Sizes
| Thread Size | Die Diameter | Threads Per Inch |
|---|---|---|
| 2-56 UNC | 13/16 inch | 56 TPI |
| 4-40 UNC | 13/16 inch | 40 TPI |
| 6-32 UNC | 13/16 inch | 32 TPI |
| 8-32 UNC | 13/16 inch | 32 TPI |
| 10-24 UNC | 13/16 inch | 24 TPI |
| 12-24 UNC | 13/16 inch | 24 TPI |
| 1/4-20 UNC | 13/16 inch | 20 TPI |
Key Features
- UNC coarse thread form
- High speed steel construction
- Suitable for cutting new external threads
- Can also restore suitable existing threads
- Circular split die design
- 13/16 inch outside diameter
- UK made
Use a suitable cutting lubricant and keep the die square to the workpiece when starting the thread.
The listed UNC thread sizes and pitches correspond with ASME B1.1. No manufacturing standard is claimed for the die body.
