Product Description

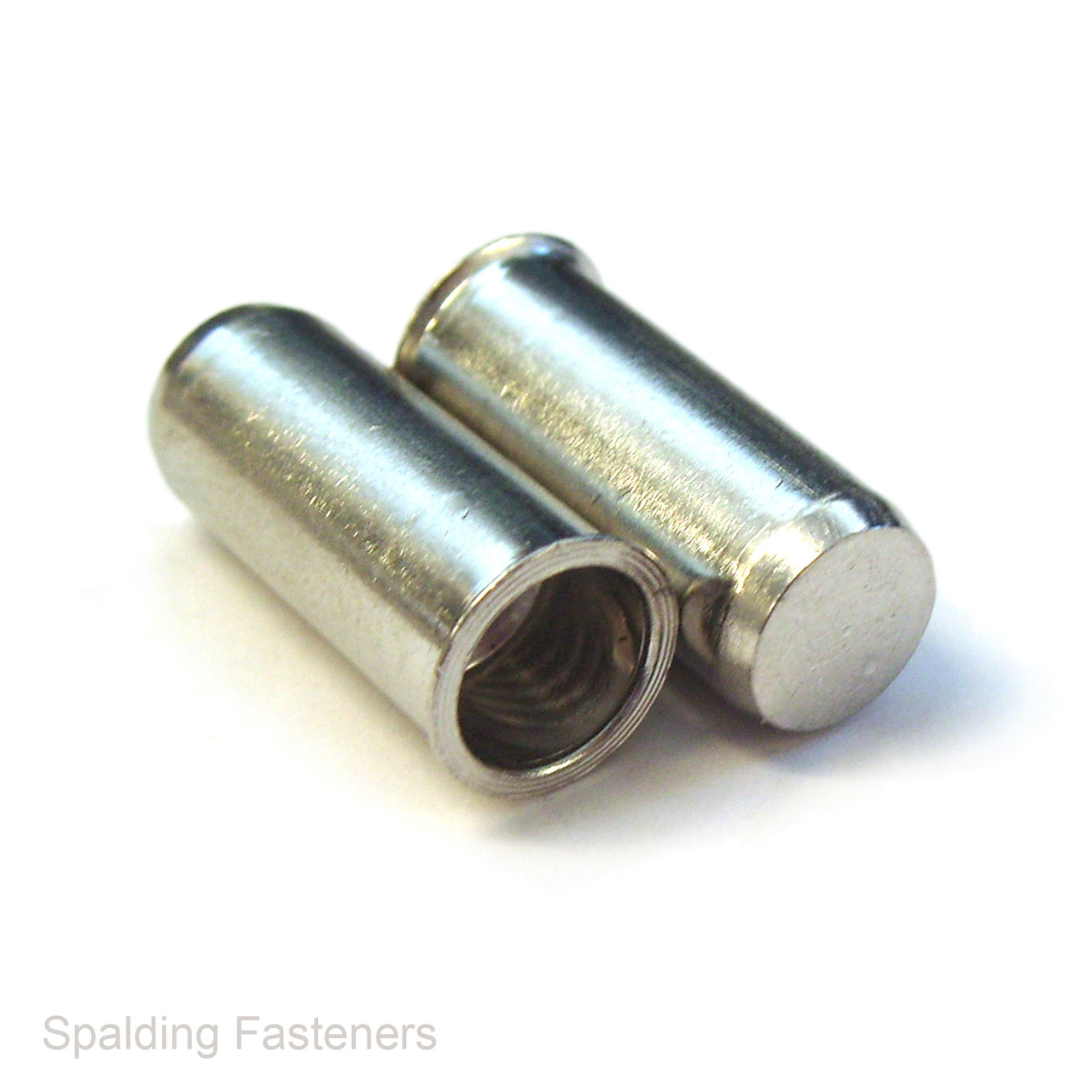

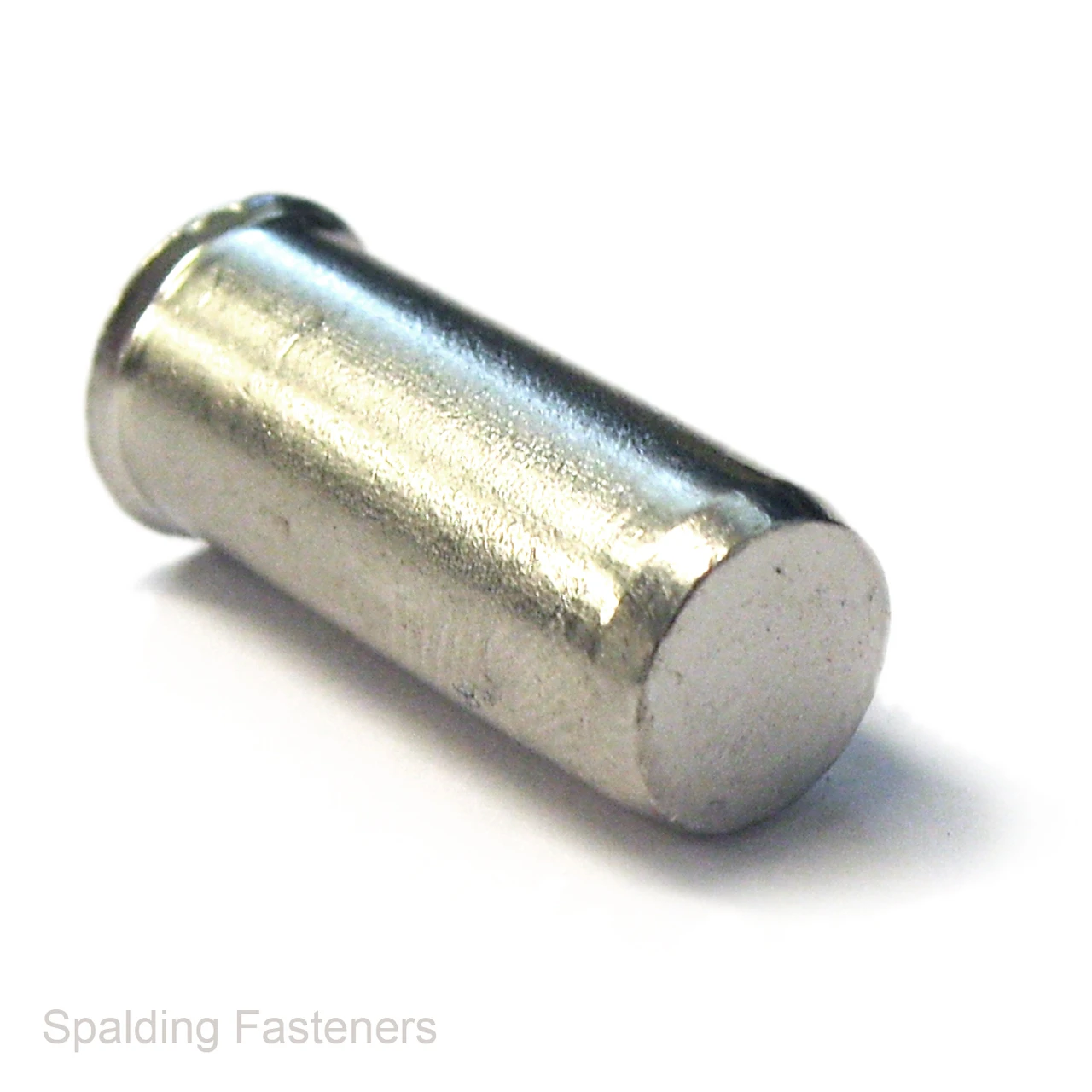

Metric A2 Stainless Steel Reduced Head Sealed Rivnuts
A2 stainless steel reduced head sealed rivnuts for adding a reusable metric thread to thin sheet and hollow sections. These blind threaded inserts can be installed from one side using a suitable rivnut setting tool.
The reduced head provides a low profile at the mounting surface. The closed end closes off the rear of the threaded bore.
Available Sizes and Grip Ranges
| Thread Size | Thread Pitch | Grip Range |
|---|---|---|
| M4 | 0.7mm | 0.5-2.5mm |
| M5 | 0.8mm | 0.5-3mm |
| M6 | 1mm | 0.5-3mm |
| M8 | 1.25mm | 1-3mm |
Grip range is the material thickness the rivnut is designed to clamp.
Key Features
- A2 stainless steel construction
- Reduced head for minimal projection
- Closed end design
- Metric coarse internal threads
- Installation with access from one side
- Provides a thread in material too thin for conventional tapping
Installation Notes
Choose a grip range that includes the material thickness. Confirm the required mounting hole diameter before drilling and use a setting tool rated for stainless steel rivnuts with the correct mandrel.
Select a screw length that provides adequate engagement without bottoming out against the closed end. Where a watertight joint is required, sealing at the rivnut-to-panel interface must also be assessed; no pressure or waterproof rating is specified.
Useful Links
Specifications are intended as a guide. Confirm the thread size, grip range, mounting hole and available installation clearance before ordering.
