Product Description

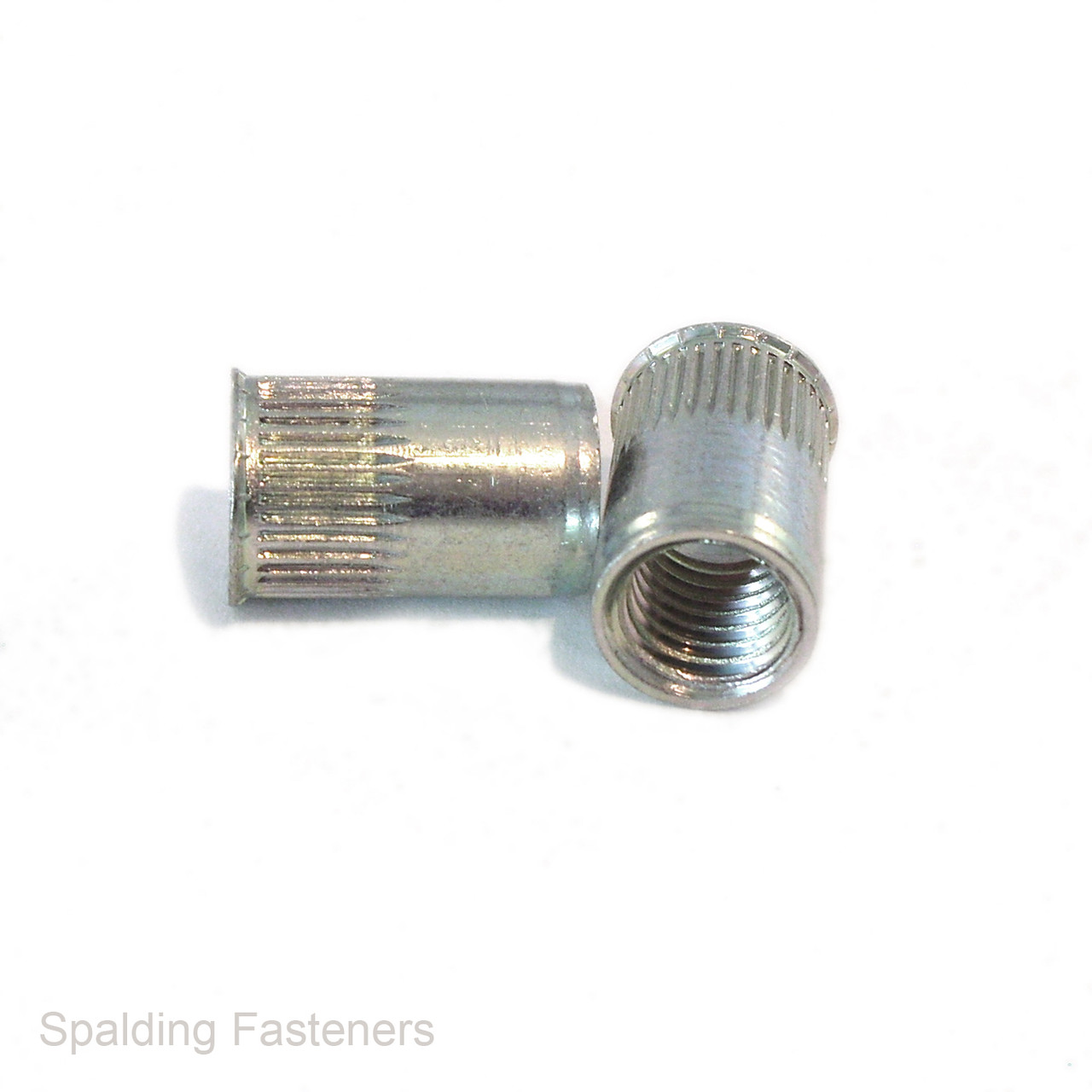

Metric zinc plated steel reduced head rivnut rivet nuts for creating strong internal threads in thin sheet materials where access is only available from one side. These open end nut rivets are ideal for adding a reusable threaded fixing point in sheet metal, panels, box section and other thin materials where a lower-profile head is preferred.
Manufactured from zinc plated steel with a reduced head, part serrated body and standard metric coarse thread, these rivet nuts are suitable for automotive, fabrication, electrical and general engineering applications. Available in thread sizes from M4 to M10, with multiple pack quantities for workshop, trade and bulk use.
Please select the required thread size and pack quantity from the dropdown options. Specifications are intended as a guide only, so if dimensions are critical it is best to check before ordering.
Product Type: Rivnut / Rivet Nut / Nutsert
Material: Zinc Plated Steel
Head Type: Reduced Head
End Type: Open End
Body Type: Part Serrated
Thread Type: Metric Coarse
Thread Range: M4 to M10
| A | B | C | D | E | F |
| M10 | 21.00MM | 14MM | * | 1.5 | 0.7 - 3.5MM |
| M4 | 10.4MM | 7MM | * | 0.7 | 0.5 - 2.00mm |
| M5 | 11.5MM | 8MM | * | 0.8 | 0.5 - 3MM |
| M6 | 14.5MM | 10MM | * | 1 | 0.5 - 3MM |
| M8 | 16.8MM | 12MM | * | 1.25 | 0.5 - 3MM |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
