Product Description

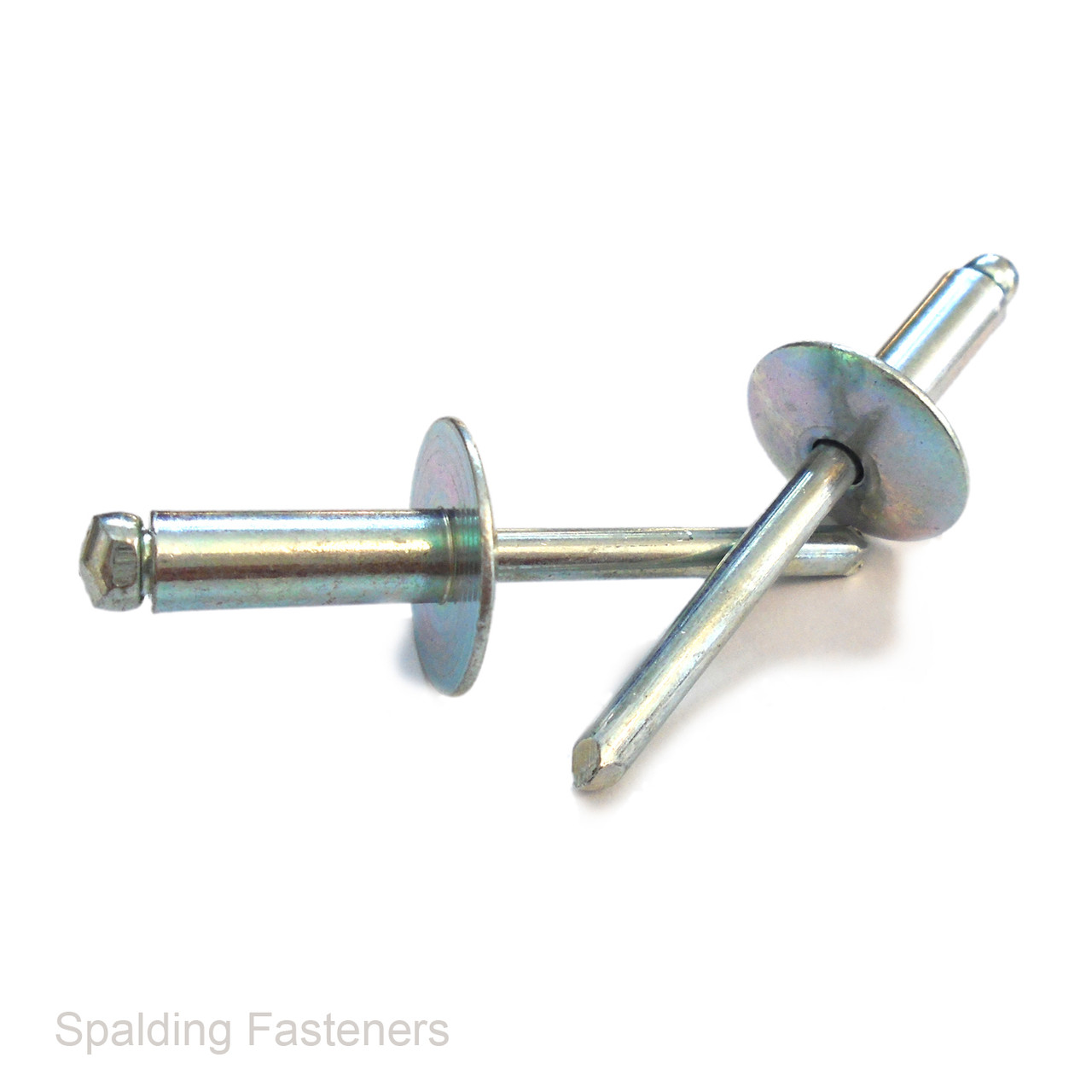

4.8mm Heavy Duty Zinc Plated Steel Large 14mm Flange Dome Head Pop Rivets
Heavy duty blind pop rivets with a steel body, steel mandrel and zinc plated finish. Each rivet has a 4.8mm nominal body diameter and a large 14mm flange dome head to spread the load around the fixing hole.
Available Sizes
| Rivet Diameter | Body Length | Flange Diameter |
|---|---|---|
| 4.8mm | 10mm | 14mm |
| 4.8mm | 12mm | 14mm |
| 4.8mm | 14mm | 14mm |
| 4.8mm | 16mm | 14mm |
| 4.8mm | 18mm | 14mm |
| 4.8mm | 21mm | 14mm |
| 4.8mm | 24mm | 14mm |
Body length is measured from beneath the head and is not the same as the grip range. Select a rivet with a grip range suitable for the combined thickness of the materials being joined.
Key Features
- 4.8mm nominal rivet diameter
- Steel body and steel mandrel
- Zinc plated finish
- Large 14mm flange dome head
- Blind installation with access from one side
- Seven body lengths available
Install using a rivet tool suitable for 4.8mm steel blind rivets. Check the required hole size, grip range and flange clearance before fitting.
Please contact us before ordering to confirm compliance certification availability.
Related Products
- 4mm Heavy Duty Zinc Plated Steel Large Flange Pop Rivets
- White Aluminium/Steel Large Flange Dome Head Pop Rivets
- Browse Rivets
Specifications are intended as a guide. Confirm the required rivet diameter, body length, flange diameter and grip range before ordering.
| A | B | C | D | E | F |
| 4.8mm | 12mm | 14mm | 6mm | 8mm | 4.90mm |
| 4.8mm | 14mm | 14mm | 8mm | 9.5mm | 4.90mm |
| 4.8mm | 16mm | 14mm | 9.5mm | 11mm | 4.90mm |
| 4.8mm | 18mm | 14mm | 10mm | 13mm | 4.90mm |
| 4.8mm | 21mm | 14mm | 11mm | 15mm | 4.90mm |
| 4.8mm | 24mm | 14mm | 15mm | 20mm | 4.90mm |
| 4.8mm | 10mm | 14mm | 4mm | 7mm | 4.9mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
