Product Description
| A | B | C | D | E | F |
| 4mm | 12mm | 10mm | 4mm | 6.5mm | 4.2mm |
| 4mm | 16mm | 10mm | 8mm | 11mm | 4.2mm |
| 4.8mm | 25mm | 14mm | 16mm | 19mm | 5mm |
| 4.8mm | 20mm | 14mm | 10mm | 14mm | 5mm |
| 4.8mm | 12mm | 14mm | 2mm | 6mm | 5mm |
| 4.8mm | 16mm | 14mm | 6mm | 10mm | 5mm |
| 4.8mm | 30mm | 14mm | 19mm | 24mm | 5mm |

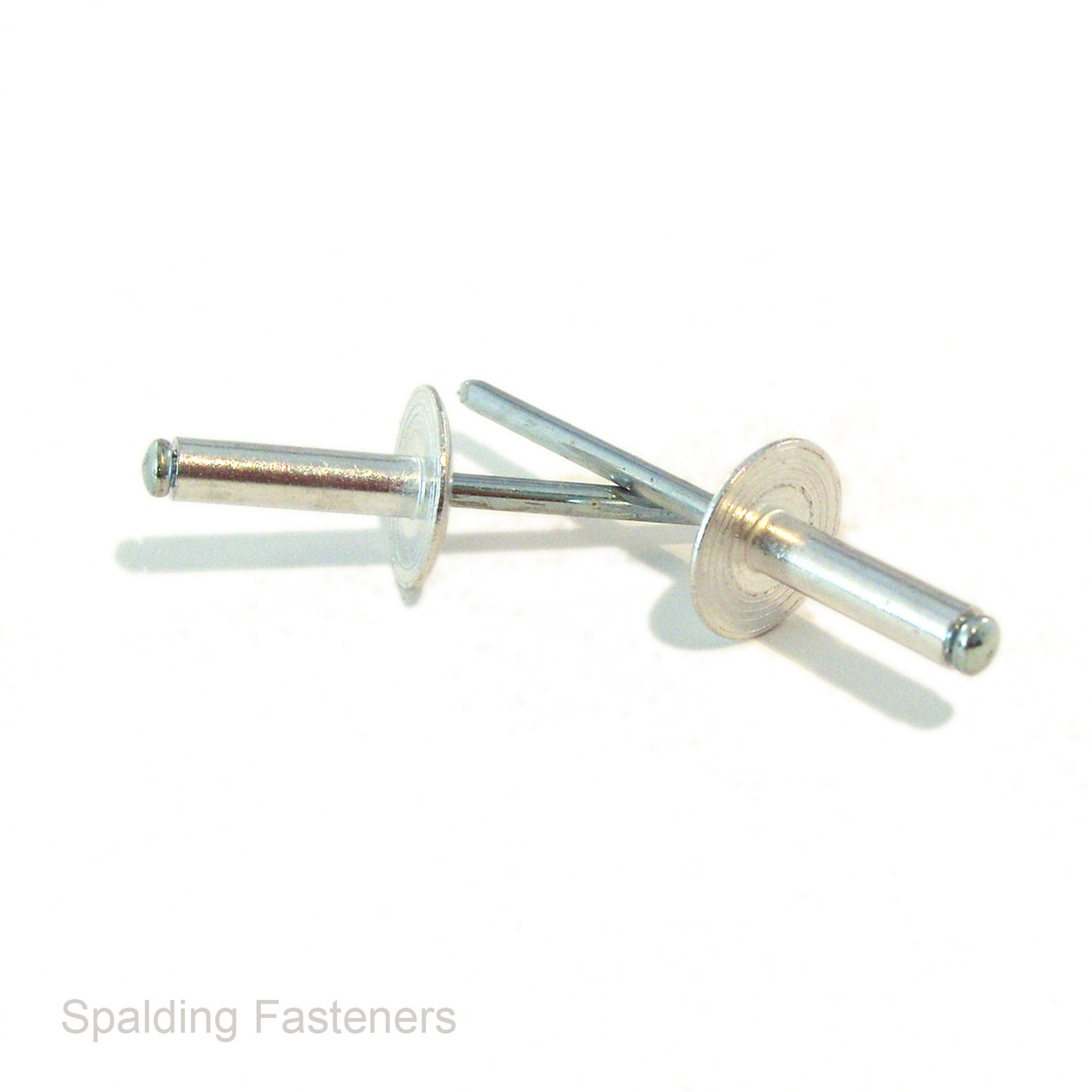

Large Flange Peel Rivets – Aluminium Body / Steel Mandrel
Large flange peel-type blind rivets in 4mm and 4.8mm diameters. Designed for fastening soft, brittle or low-resistance materials, including plastics, wood, insulation and plasterboard.

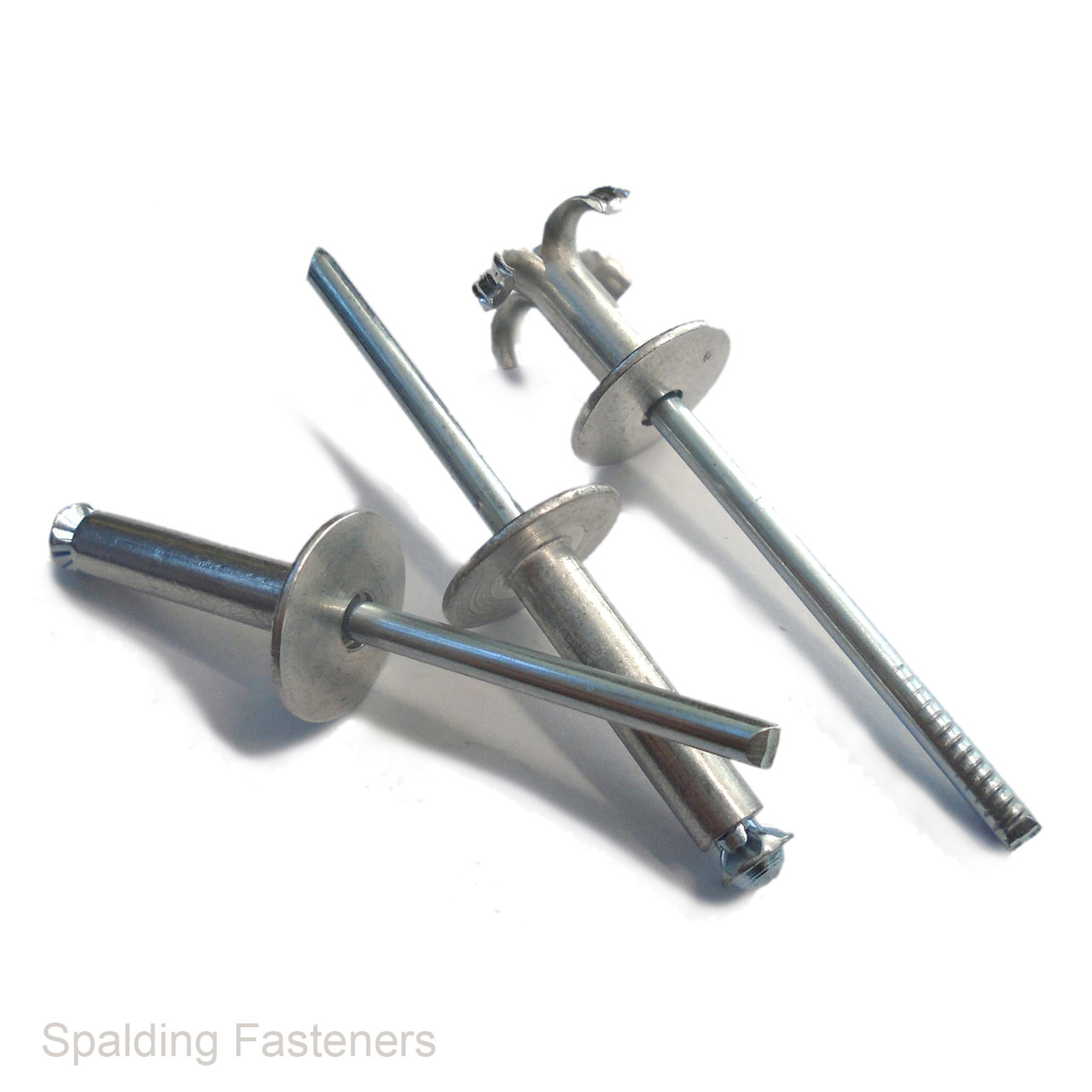

During installation, the rivet body splits and peels outwards behind the material, creating a broad bearing area. Combined with the large flange head, this helps spread the clamping load and reduce the risk of pulling through softer materials.
Product Specifications
- Rivet type: Peel-type blind rivet.
- Head style: Large flange dome head.
- Body material: Aluminium.
- Mandrel material: Steel.
- Body diameters: 4mm and 4.8mm.
- Flange diameters: 10mm for 4mm rivets; 14mm for 4.8mm rivets.
- Installation: Using a compatible blind rivet tool.
Available Sizes and Dimensions
All measurements below are in millimetres. Rivet length is measured from beneath the head to the end of the body, excluding the mandrel.
| Rivet Diameter | Body Length | Flange Diameter | Hole Diameter |
|---|---|---|---|
| 4 | 12 | 10 | 4.2 |
| 4 | 16 | 10 | 4.2 |
| 4.8 | 12 | 14 | 5 |
| 4.8 | 16 | 14 | 5 |
| 4.8 | 20 | 14 | 5 |
| 4.8 | 25 | 14 | 5 |
| 4.8 | 30 | 14 | 5 |
Selecting and Fitting
Select a rivet with a grip range suitable for the combined thickness of the materials being joined. Body length is not the same as grip range. Allow sufficient space behind the joint for the rivet to expand, and use the correct nosepiece for the mandrel.
Ordering
Choose your rivet diameter, length and pack quantity from the available options.
