Product Description
-

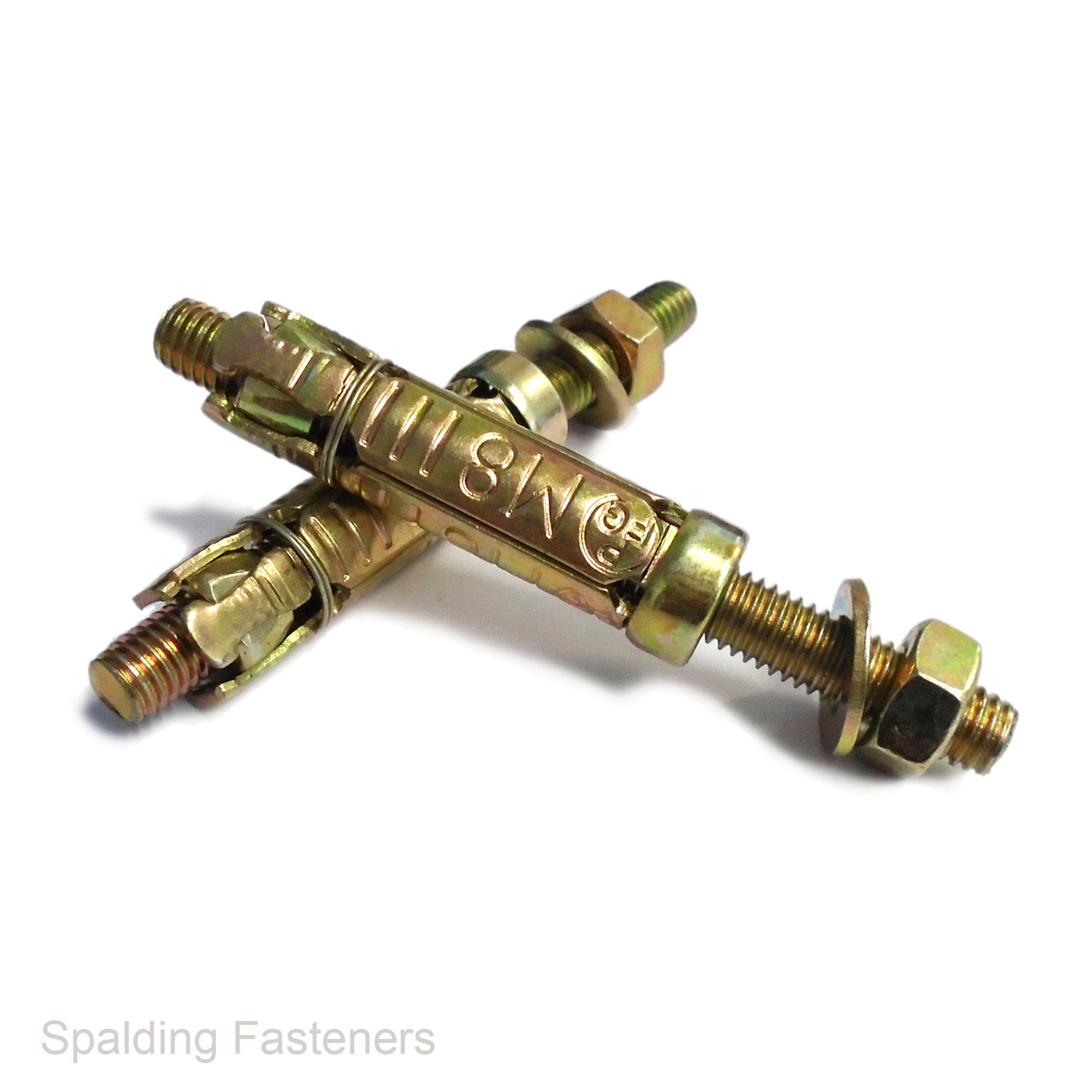

M10 Metric Masonry Shield Anchor Studs with Nuts
These M10 masonry shield anchor studs provide a projecting threaded fixing for attaching brackets, fittings and equipment to suitable masonry and concrete. Each assembly includes an expansion shield, threaded stud and nut.
The four-way expansion shield expands as the nut is tightened, securing the anchor within the prepared hole. The projecting stud allows the fixture to be positioned over the anchor and secured with the supplied nut.
Technical Specifications
Anchor Type Shield anchor with projecting stud Thread Size M10 Listed Anchor Length 95 mm Finish Yellow passivated Expansion Mechanism Four-way expansion shield Setting Method Torque-controlled expansion by tightening the nut Base Material Suitable masonry and concrete Drill Hole Diameter 16 mm Components Included Shield, stud and nut Available Size
Size Listed Anchor Length Drill Hole Diameter M10 x 95 95 mm 16 mm Selecting Your Shield Anchors
Select the required pack quantity from the available options. M10 describes the stud thread size; the required drill hole diameter is 16 mm.
Check that the anchor suits the base material, fixture thickness and required loading. The listed 95 mm anchor length is not the maximum fixture thickness or required drilling depth.
Installation Guidance
Use the installation instructions for the supplied anchor to establish the required hole depth, embedment and tightening torque. Drill the specified hole, clean it thoroughly and install the anchor before securing the fixture.
Confirm the permitted load, edge distances and anchor spacing for the application before installation. Contact us if you need these details or confirmation of the maximum fixture thickness.
