Product Description

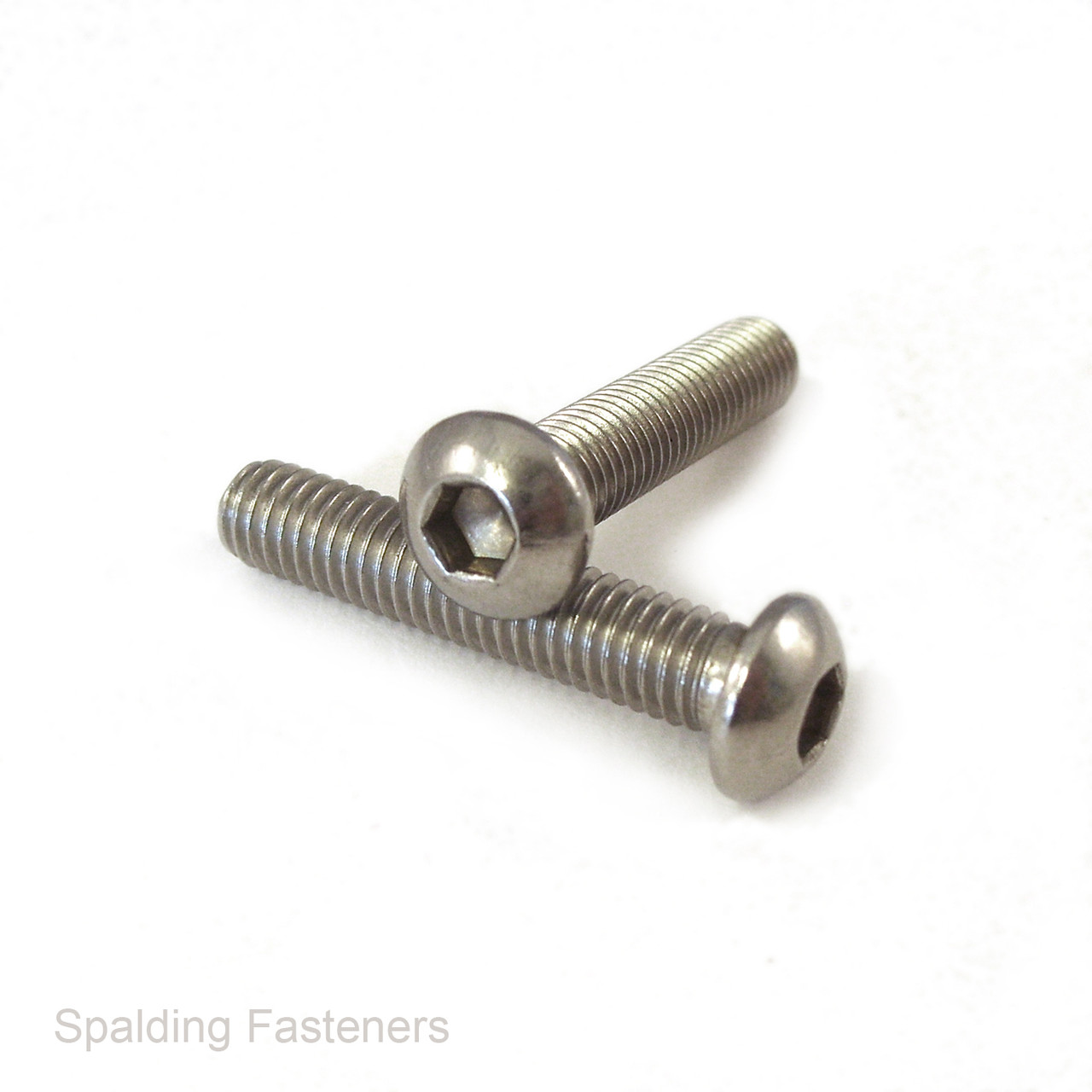

6-32 UNC A2 Stainless Steel Allen Key Socket Button Head Machine Screws

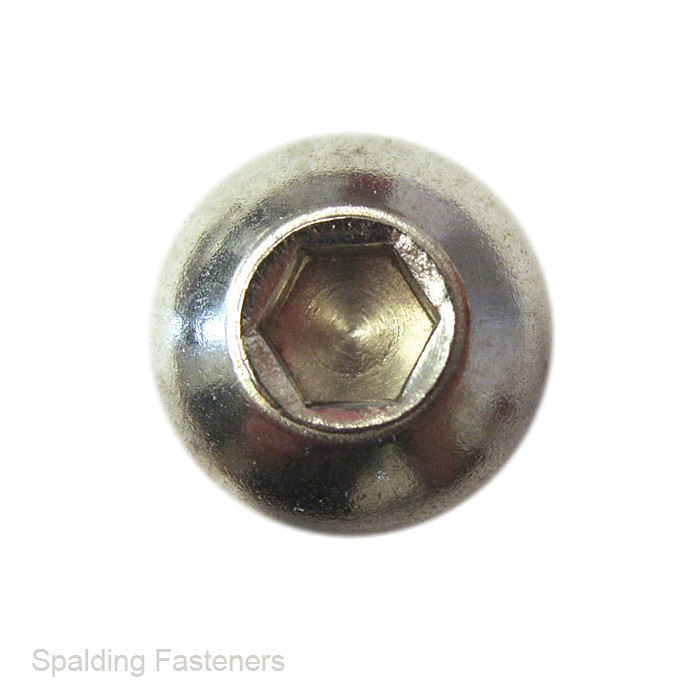

6-32 UNC socket button head machine screws manufactured from A2 stainless steel. The rounded button head provides a low profile above the component surface, with an internal hexagon socket for installation using a 1/16 inch Allen key.
Suitable for general assembly, covers, panels and maintenance work requiring a matching UNC thread. Choose from six imperial lengths to suit your application.
Technical Specifications
| Product Type | Socket button head machine screws |
|---|---|
| Material | A2 stainless steel |
| Thread Size | 6-32 UNC |
| Thread Type | Unified National Coarse |
| Threads Per Inch | 32 TPI |
| Head Style | Rounded button head |
| Drive Type | Internal hexagon socket |
| Allen Key Size | 1/16 inch |
| Head Diameter | Approximately 0.25 inch |
| Head Height | Approximately 0.08 inch |
Available Lengths
| Thread Size | Length | Threads Per Inch |
|---|---|---|
| 6-32 UNC | 3/16 inch | 32 |
| 6-32 UNC | 1/4 inch | 32 |
| 6-32 UNC | 3/8 inch | 32 |
| 6-32 UNC | 1/2 inch | 32 |
| 6-32 UNC | 5/8 inch | 32 |
| 6-32 UNC | 3/4 inch | 32 |
Measuring and Fitting
Measure the screw length from underneath the head to the tip. Use with a matching 6-32 UNC nut or tapped hole, allowing sufficient thread engagement for the assembly.
Fully engage a correctly fitting 1/16 inch Allen key before tightening. Tighten steadily and avoid excessive force to protect the socket and stainless steel threads.
