Product Description

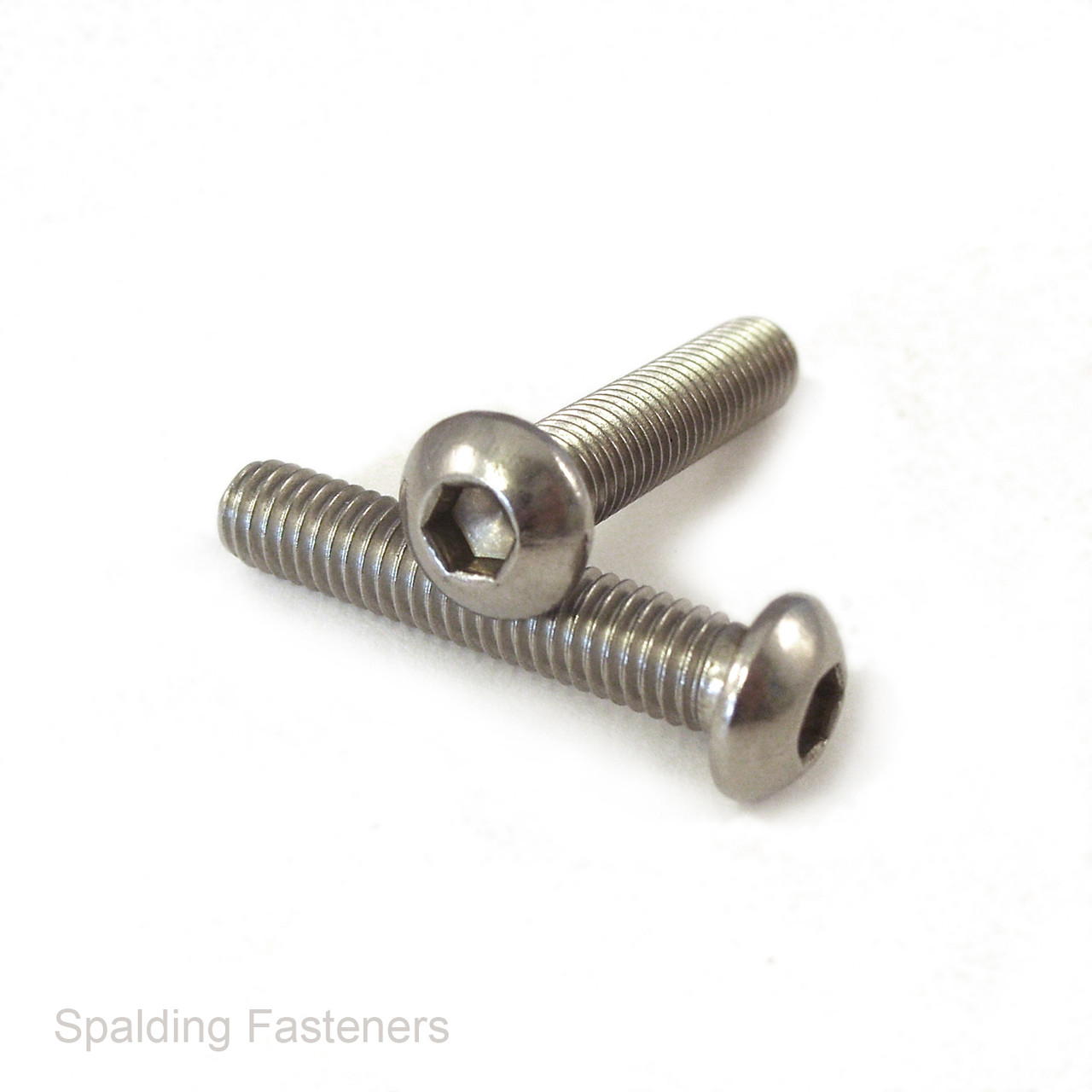

8-32 UNC A2 Stainless Steel Allen Key Socket Button Head Machine Screws

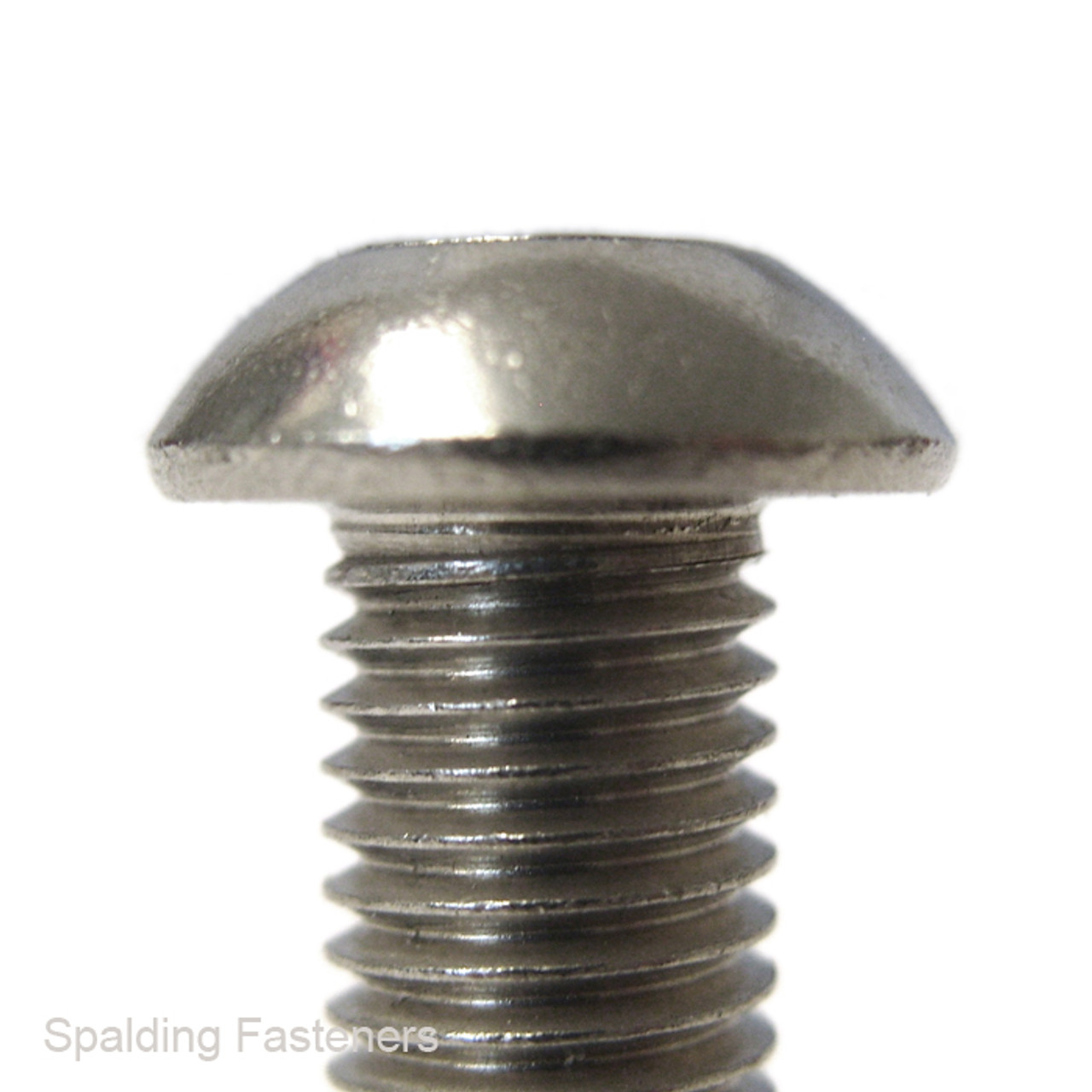

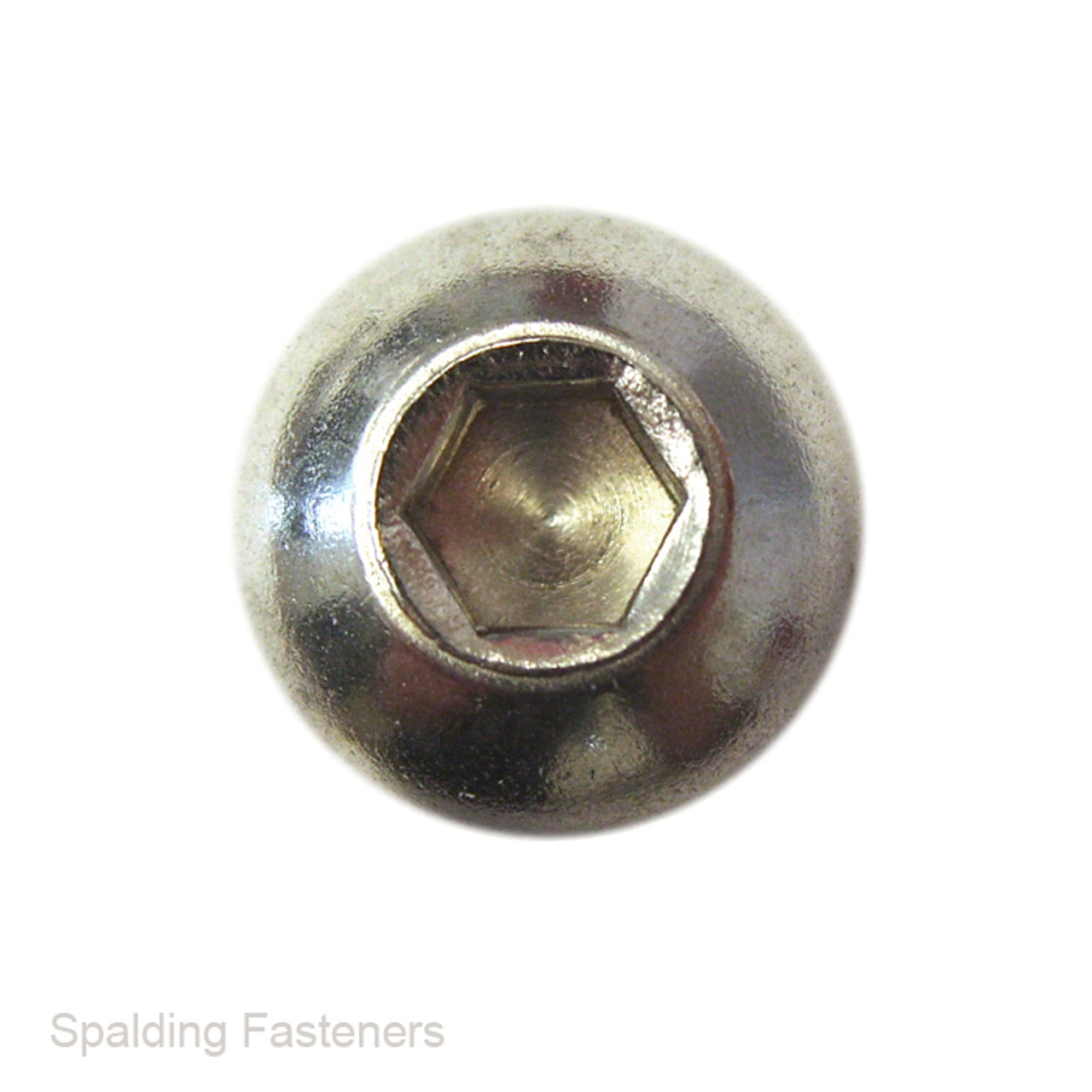

8-32 UNC socket button head machine screws manufactured from A2 stainless steel. The rounded button head provides a low profile above the component surface, while the internal hexagon socket accepts a 3/32 inch Allen key.
Suitable for covers, panels, general assembly and maintenance work requiring a matching UNC thread. Available in five imperial lengths from 3/8 inch to 1 inch.
Technical Specifications
| Product Type | Socket button head machine screws |
|---|---|
| Material | A2 stainless steel |
| Thread Size | 8-32 UNC |
| Thread Type | Unified National Coarse |
| Threads Per Inch | 32 TPI |
| Head Style | Rounded button head |
| Drive Type | Internal hexagon socket |
| Allen Key Size | 3/32 inch |
| Head Diameter | Approximately 0.30 inch |
| Head Height | Approximately 0.10 inch |
Available Lengths
| Thread Size | Length | Threads Per Inch |
|---|---|---|
| 8-32 UNC | 3/8 inch | 32 |
| 8-32 UNC | 1/2 inch | 32 |
| 8-32 UNC | 5/8 inch | 32 |
| 8-32 UNC | 3/4 inch | 32 |
| 8-32 UNC | 1 inch | 32 |
Measuring and Fitting
Measure screw length from underneath the head to the tip. Fit into a matching 8-32 UNC nut or tapped hole, allowing sufficient thread engagement for the assembly.
Fully engage a correctly fitting 3/32 inch Allen key before tightening. Tighten steadily and avoid excessive force to protect the socket and stainless steel threads.
