Product Description

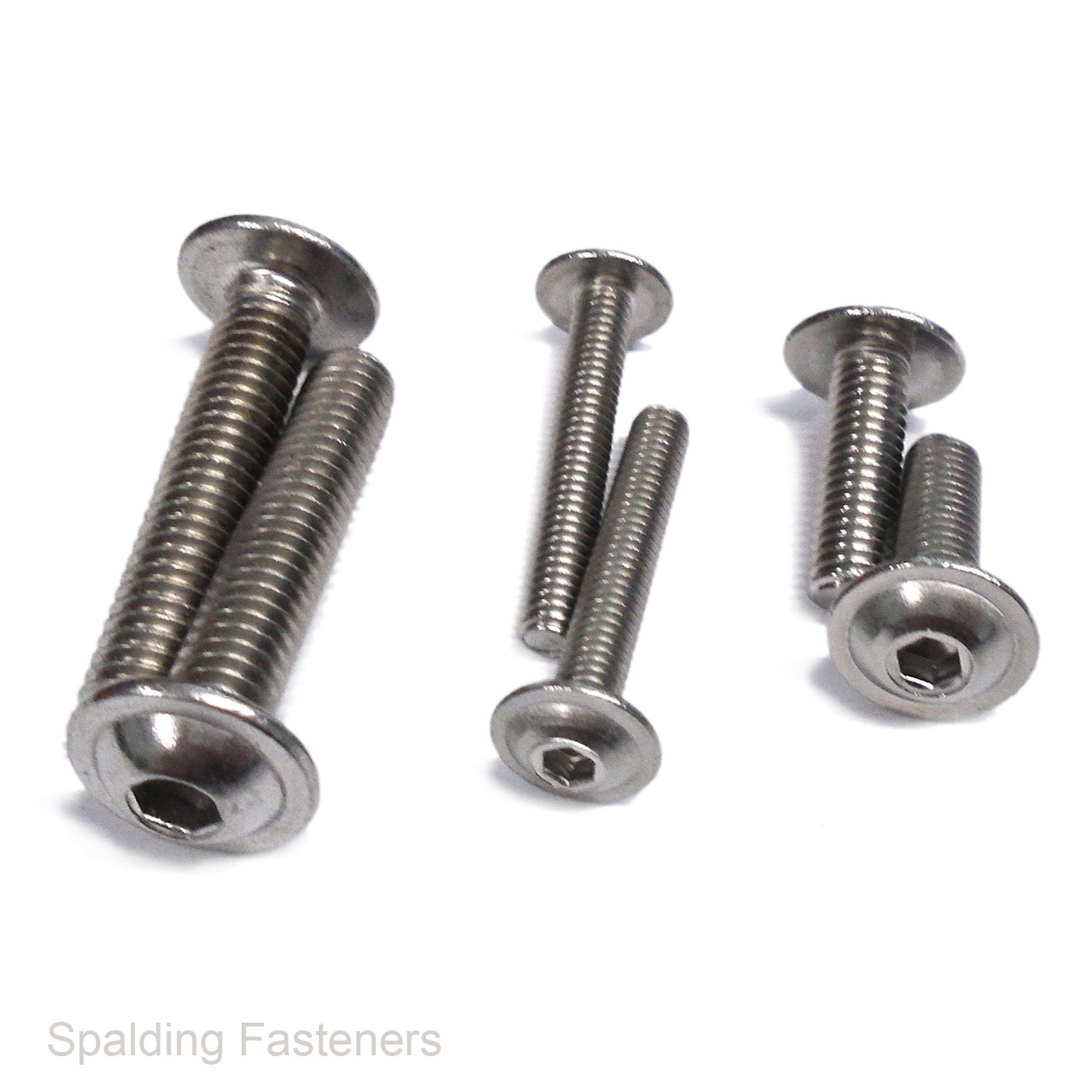

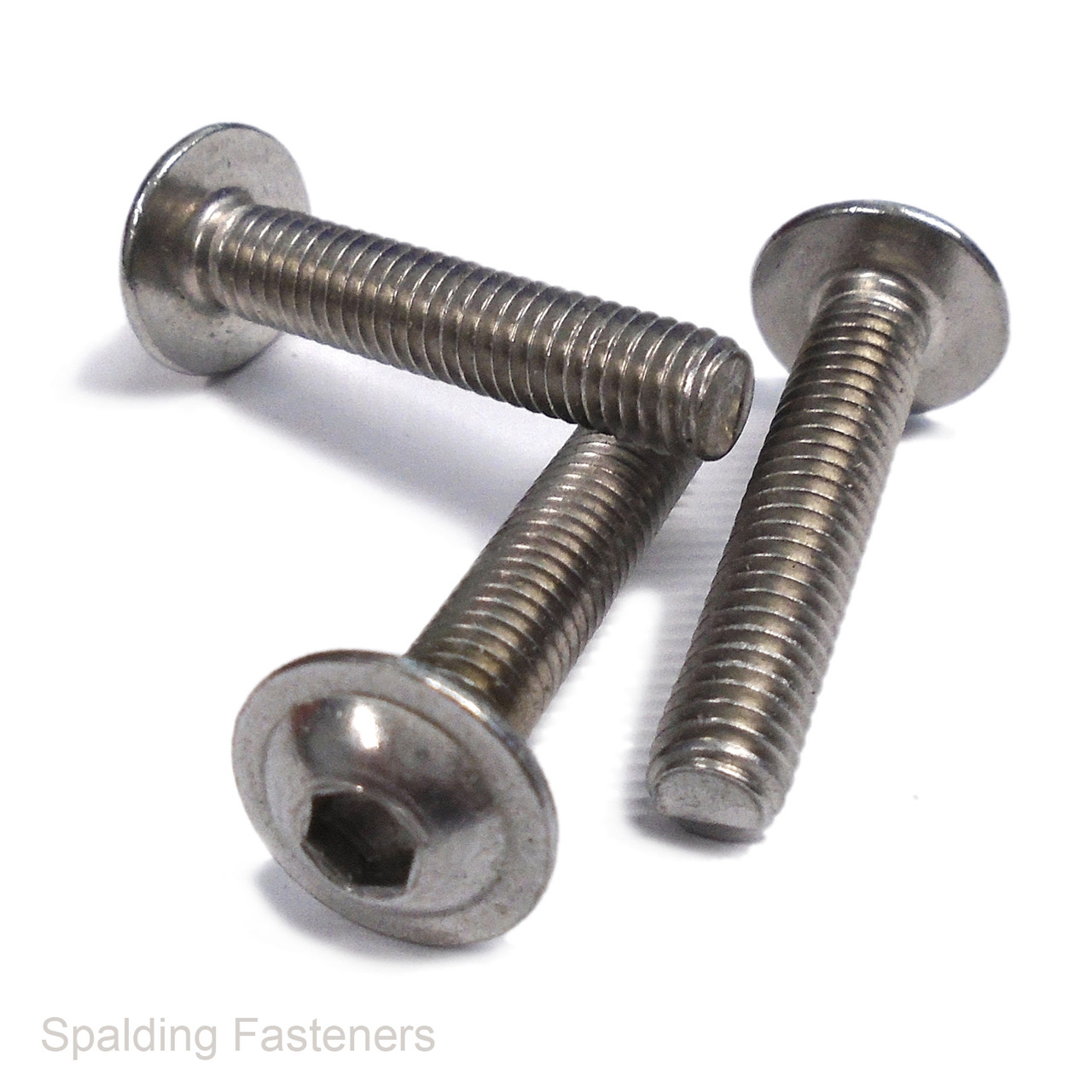

M5 A2 Stainless Steel Socket Flange Button Screws – ISO 7380-2
M5 socket flange button screws manufactured from A2 stainless steel, combining a rounded button head with an integral flange. The wider bearing surface helps spread the clamping load across the mating surface, while the internal hexagon socket provides a neat Allen key drive.
Suitable for general assembly, machinery, panels and maintenance applications requiring corrosion-resistant fasteners. Available in lengths from 6mm to 35mm, with an M5 metric coarse thread.
Technical Specifications
| Thread Size | M5 |
|---|---|
| Thread Type | Metric coarse |
| Thread Pitch | 0.8mm |
| Material | A2 stainless steel |
| Standard | ISO 7380-2 |
| Head Style | Button head with integral flange |
| Drive Type | Internal hexagon socket |
| Allen Key Size | 3mm |
| Maximum Flange Diameter | 11.8mm |
| Maximum Head Height | 2.75mm |
| Length Measurement | Measured from beneath the flange to the end of the screw |
Available Sizes
| Thread Size | Screw Length | Thread Pitch | Allen Key Size |
|---|---|---|---|
| M5 | 6mm | 0.8mm | 3mm |
| M5 | 8mm | 0.8mm | 3mm |
| M5 | 10mm | 0.8mm | 3mm |
| M5 | 12mm | 0.8mm | 3mm |
| M5 | 16mm | 0.8mm | 3mm |
| M5 | 20mm | 0.8mm | 3mm |
| M5 | 25mm | 0.8mm | 3mm |
| M5 | 30mm | 0.8mm | 3mm |
| M5 | 35mm | 0.8mm | 3mm |
Select your required screw length and pack quantity from the options above.
Fitting Information
Use a 3mm Allen key or suitable hexagon driver, ensuring it is fully seated before tightening. Fit into a matching M5 x 0.8mm tapped hole or use with a compatible M5 nut. Choose a length that provides sufficient thread engagement without bottoming out in a blind hole.
Tighten stainless steel fasteners steadily and avoid excessive speed to help reduce the risk of thread galling. Where appropriate, use a suitable anti-seize compound and account for lubrication when determining the tightening torque.
