Product Description

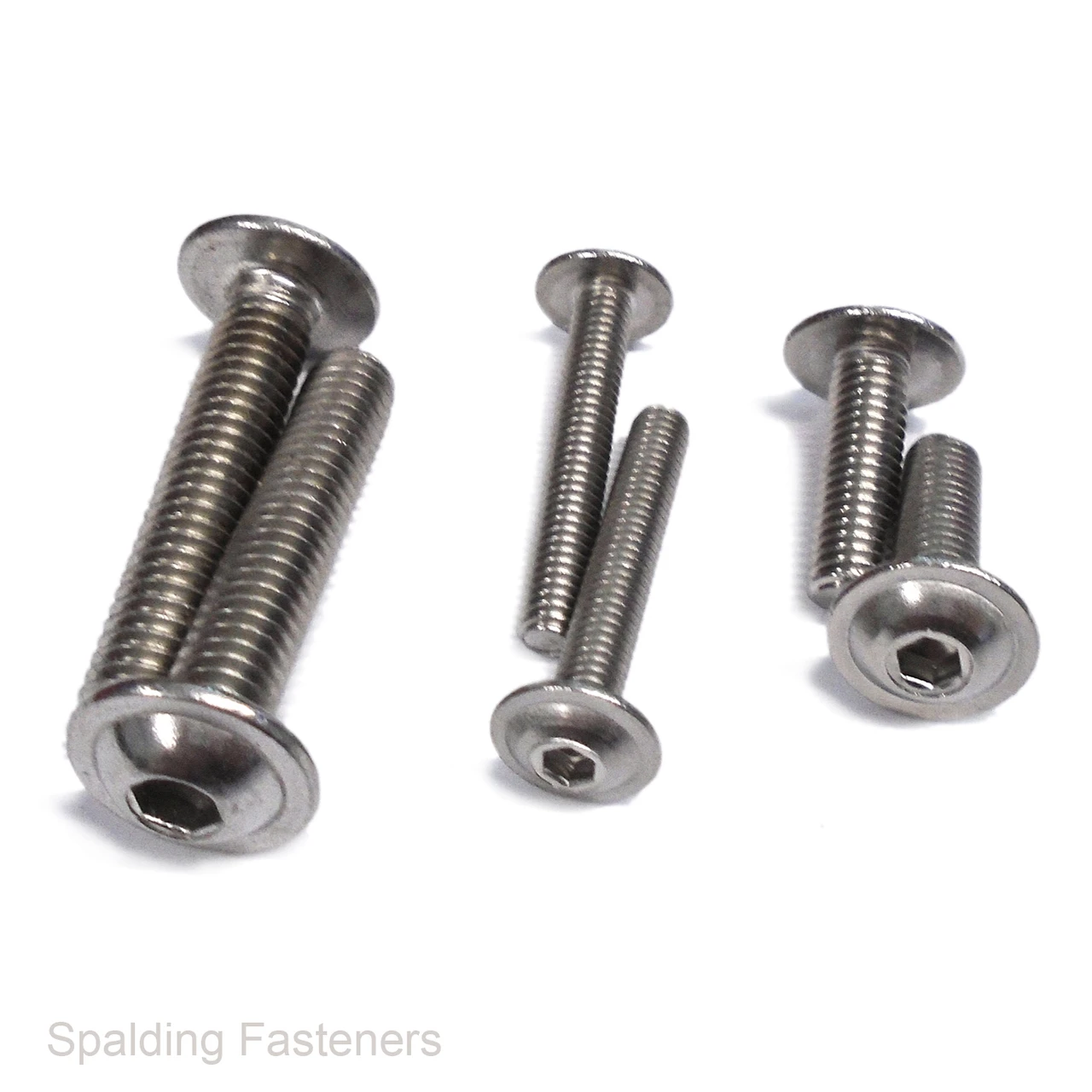

M6 A2 Stainless Steel Socket Flange Button Screws – ISO 7380-2
M6 socket flange button screws manufactured from A2 stainless steel, featuring a rounded button head with an integral flange. The wider bearing surface helps spread the clamping load across the mating surface, while the internal hexagon socket allows tightening with a 4mm Allen key.
Suitable for general assembly, machinery, panels and maintenance applications requiring corrosion-resistant fasteners. Available in lengths from 10mm to 60mm, with an M6 metric coarse thread.
Technical Specifications
| Thread Size | M6 |
|---|---|
| Thread Type | Metric coarse |
| Thread Pitch | 1mm |
| Material | A2 stainless steel |
| Standard | ISO 7380-2 |
| Head Style | Button head with integral flange |
| Drive Type | Internal hexagon socket |
| Allen Key Size | 4mm |
| Maximum Flange Diameter | 13.6mm |
| Maximum Head Height | 3.3mm |
| Length Measurement | Measured from beneath the flange to the end of the screw |
Available Sizes
| Thread Size | Screw Length | Thread Pitch | Allen Key Size |
|---|---|---|---|
| M6 | 10mm | 1mm | 4mm |
| M6 | 12mm | 1mm | 4mm |
| M6 | 16mm | 1mm | 4mm |
| M6 | 20mm | 1mm | 4mm |
| M6 | 25mm | 1mm | 4mm |
| M6 | 30mm | 1mm | 4mm |
| M6 | 40mm | 1mm | 4mm |
| M6 | 50mm | 1mm | 4mm |
| M6 | 60mm | 1mm | 4mm |
Select your required screw length and pack quantity from the options above.
Fitting Information
Use a 4mm Allen key or suitable hexagon driver, ensuring it is fully seated before tightening. Fit into a matching M6 x 1mm tapped hole or use with a compatible M6 nut. Choose a length that provides sufficient thread engagement without bottoming out in a blind hole.
Tighten stainless steel fasteners steadily and avoid excessive speed to help reduce the risk of thread galling. Where appropriate, use a suitable anti-seize compound and account for lubrication when determining the tightening torque.
