Product Description

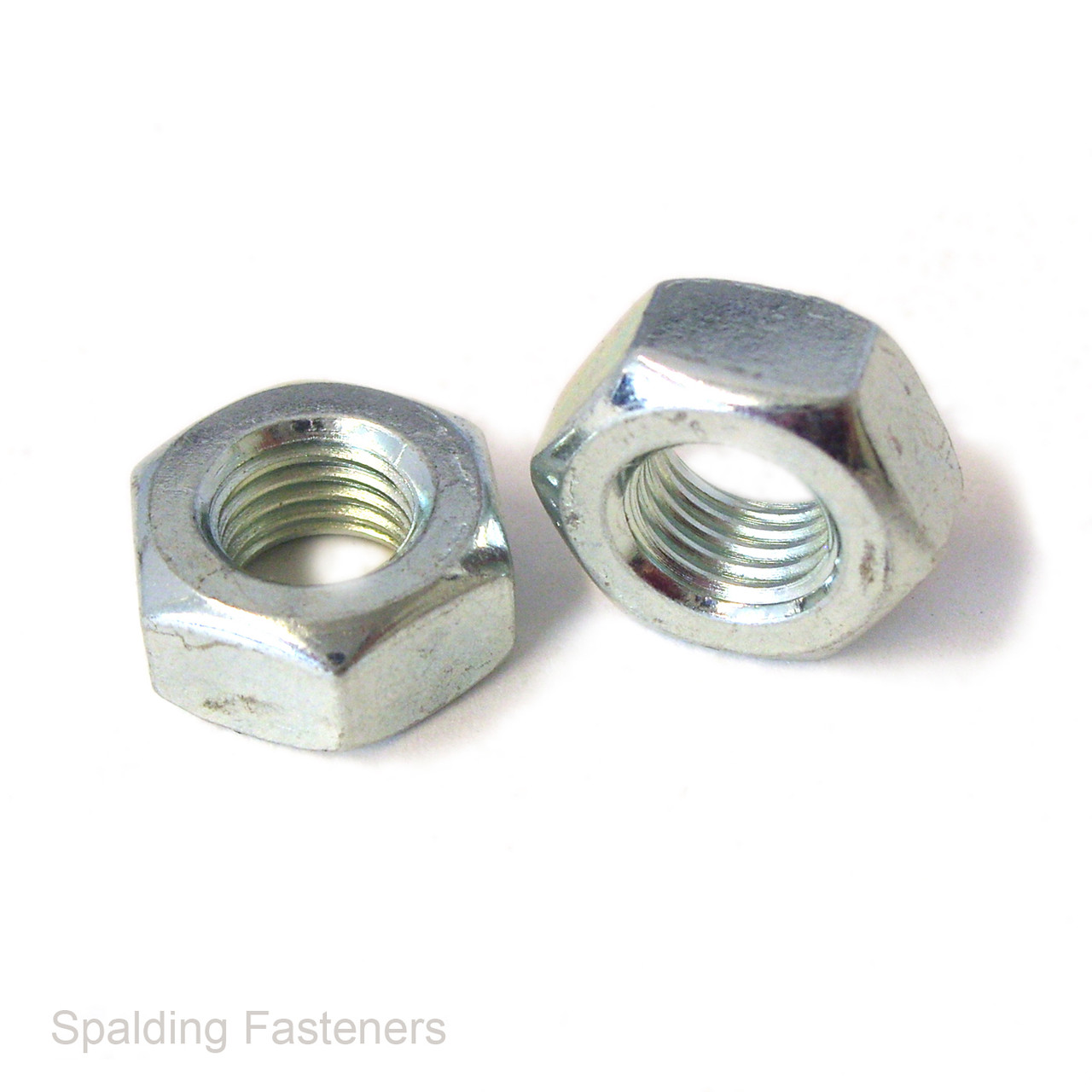

Metric Class 10 Zinc Plated High Tensile Steel Hexagon Full Nuts – DIN 934
Metric hexagon full nuts manufactured from high tensile steel to property class 10, with a zinc plated finish. These DIN 934 nuts feature standard metric coarse threads and are available in sizes from M6 to M30.
The six-sided hexagon profile allows tightening with a matching spanner or socket. Suitable for machinery, maintenance and general engineering assemblies requiring high tensile steel nuts.
Specifications
| Product type | Hexagon full nut |
|---|---|
| Standard | DIN 934 |
| Material | High tensile steel |
| Property class | 10 |
| Finish | Zinc plated |
| Thread type | Metric coarse — standard pitch |
| Drive | External hexagon — spanner or socket |
Available Sizes and Dimensions
| Thread size | Thread pitch | Spanner size | Maximum nut height |
|---|---|---|---|
| M6 | 1.00mm | 10mm | 5mm |
| M8 | 1.25mm | 13mm | 6.5mm |
| M10 | 1.50mm | 17mm | 8mm |
| M12 | 1.75mm | 19mm | 10mm |
| M14 | 2.00mm | 22mm | 11mm |
| M16 | 2.00mm | 24mm | 13mm |
| M18 | 2.50mm | 27mm | 15mm |
| M20 | 2.50mm | 30mm | 16mm |
| M22 | 2.50mm | 32mm | 18mm |
| M24 | 3.00mm | 36mm | 19mm |
| M27 | 3.00mm | 41mm | 22mm |
| M30 | 3.50mm | 46mm | 24mm |
Spanner sizes refer to the nominal width across the flats. Nut heights are DIN 934 maximum dimensions and are subject to manufacturing tolerances.
Pack Quantities
Quantity options include 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 50, 100, 250, 500 and 1000. Select the required thread size and quantity from the options above.
Typical Applications
- Machinery and equipment assembly.
- Mechanical maintenance and repairs.
- Securing brackets, fixtures and components.
- Assemblies requiring Class 10 hexagon full nuts.
Fitting Information
Match the nut diameter and thread pitch to the bolt, set screw or threaded bar. These nuts have standard metric coarse threads and will not fit metric fine threads of the same nominal diameter.
Use the correct spanner or socket size and follow the tightening requirements for the complete assembly. Where washers are required, select a suitable size and hardness for the application.
