Product Description

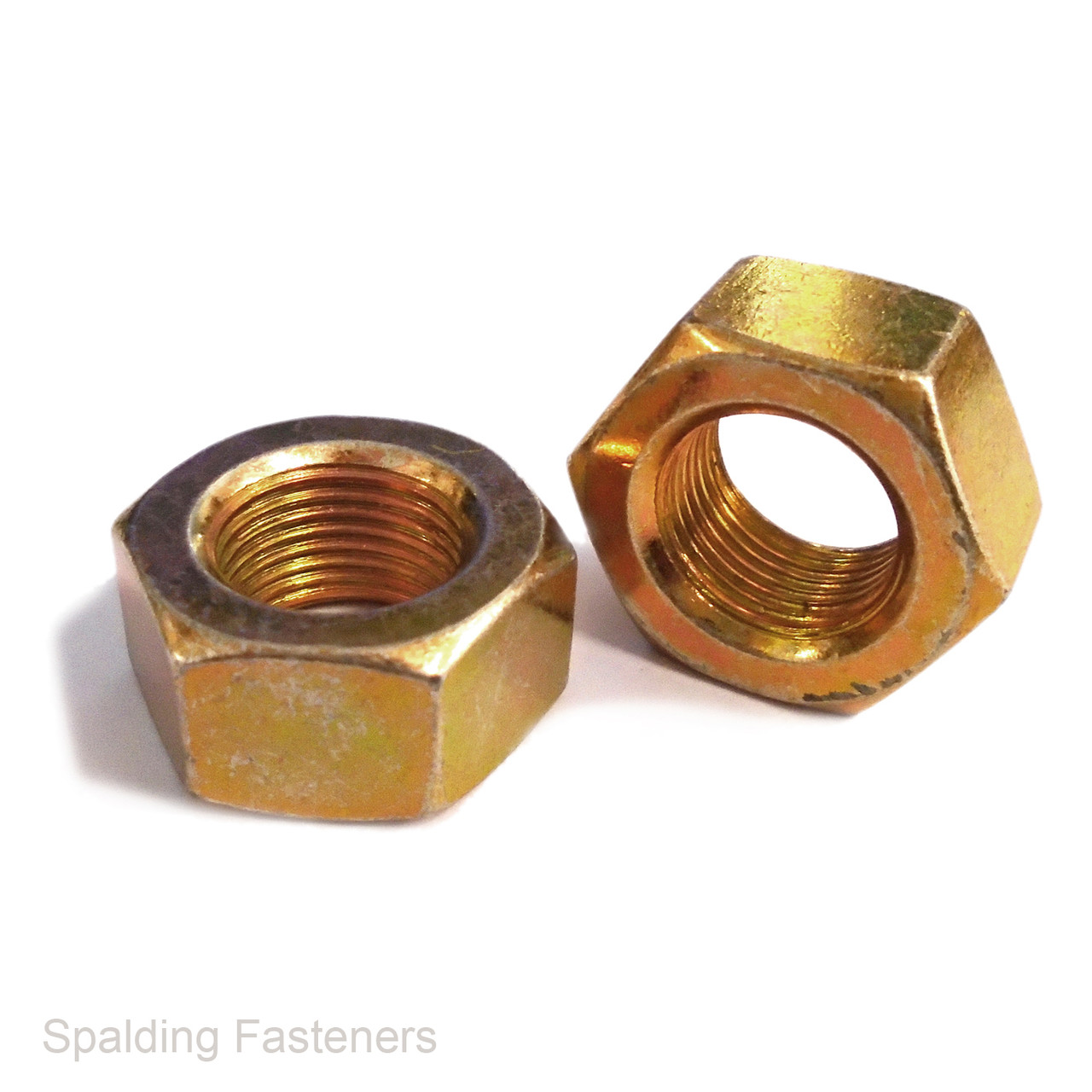

DIN 934 Class 8 Metric Yellow Zinc Plated Hexagon Full Nuts
Metric hexagon full nuts manufactured to DIN 934 in Class 8 steel with a yellow zinc plated finish. Available in M5 to M20 sizes with standard metric coarse threads for use with matching bolts, set screws and threaded studs.
The six-sided hexagon profile allows tightening with a spanner or socket. These full nuts are suitable for maintenance, repairs and engineering assemblies specifying DIN 934 Class 8 fasteners.
Technical Specifications
| Standard | DIN 934 |
|---|---|
| Material | Steel |
| Strength class | Class 8 |
| Finish | Yellow zinc plated |
| Nut type | Hexagon full nut |
| Thread type | Metric coarse |
| Available sizes | M5, M6, M8, M10, M12, M14, M16 and M20 |
| Pack quantities | 2, 5, 10, 20, 50, 100, 250 or 500 |
Sizes and Dimensions
All dimensions are in millimetres. Nut heights are listed guide dimensions and are subject to manufacturing tolerances.
| Thread Size | Thread Pitch | Spanner Size Across Flats | Nut Height |
|---|---|---|---|
| M5 | 0.8 | 8 | 4 |
| M6 | 1.0 | 10 | 5 |
| M8 | 1.25 | 13 | 6.5 |
| M10 | 1.5 | 17 | 8 |
| M12 | 1.75 | 19 | 10 |
| M14 | 2.0 | 22 | 11 |
| M16 | 2.0 | 24 | 13 |
| M20 | 2.5 | 30 | 16 |
Select your required thread size and pack quantity from the product options.
Fitting Advice
Match the nut to the bolt or stud diameter and thread pitch. Start the nut by hand, then tighten with the correct spanner or socket. Follow the assembly manufacturer's requirements for fastener strength, tightening torque and lubrication.
