Product Description
212 Assorted A2 Stainless Steel Pan Pozi Self Tapping Screws – No.10, No.12 & No.14
A selection of A2 stainless steel pan Pozi self tapping screws with AB points, covering 16 sizes for assembly, maintenance and repairs.

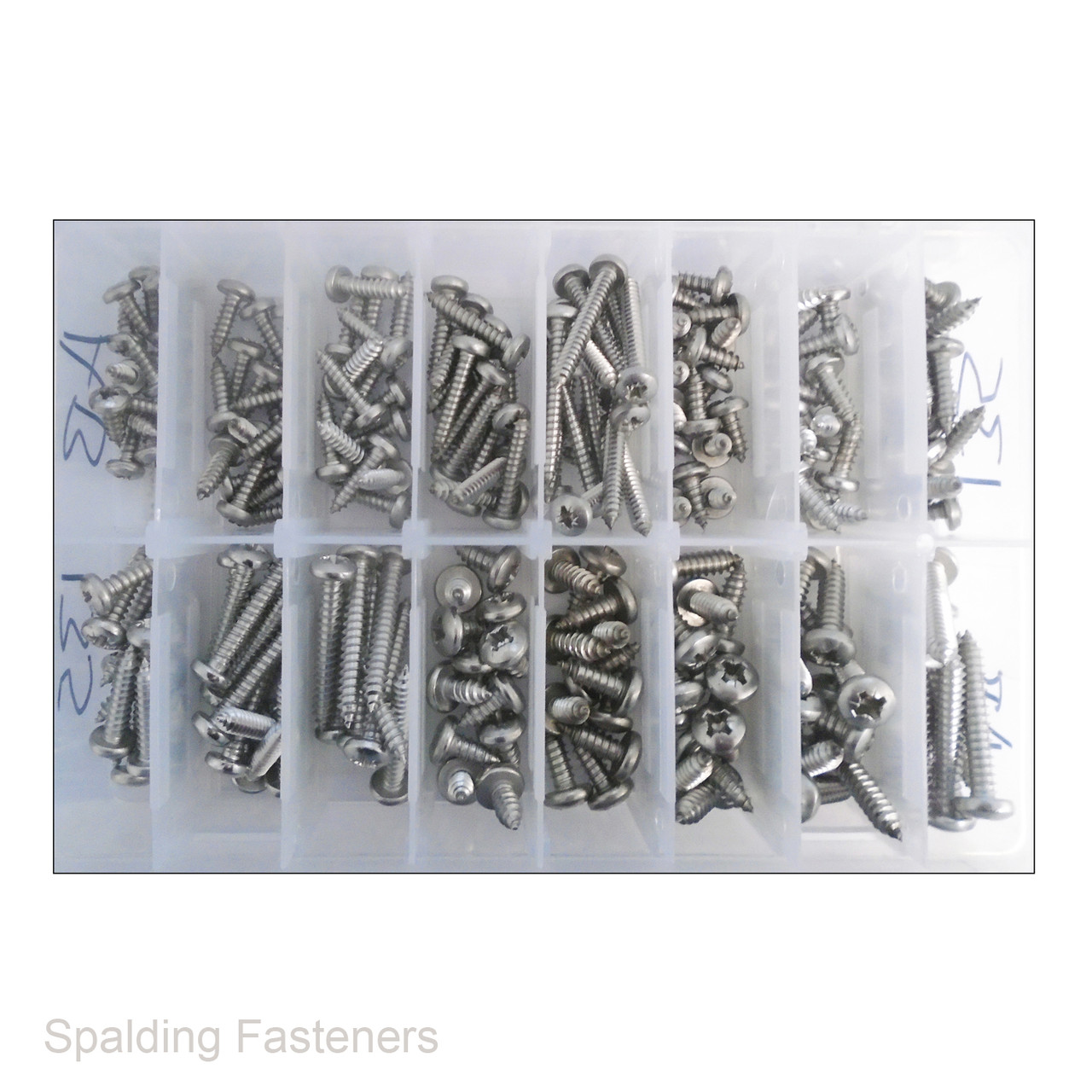

Contents
Metric sizes below show nominal thread diameter × length.
| Gauge | Metric Size | Quantity |
|---|---|---|
| No.10 | 4.8 × 13mm | 15 |
| No.10 | 4.8 × 16mm | 15 |
| No.10 | 4.8 × 19mm | 15 |
| No.10 | 4.8 × 25mm | 15 |
| No.10 | 4.8 × 38mm | 15 |
| No.12 | 5.5 × 13mm | 15 |
| No.12 | 5.5 × 16mm | 15 |
| No.12 | 5.5 × 19mm | 15 |
| No.12 | 5.5 × 25mm | 12 |
| No.12 | 5.5 × 32mm | 12 |
| No.12 | 5.5 × 38mm | 10 |
| No.14 | 6.3 × 13mm | 12 |
| No.14 | 6.3 × 16mm | 12 |
| No.14 | 6.3 × 19mm | 12 |
| No.14 | 6.3 × 25mm | 12 |
| No.14 | 6.3 × 38mm | 10 |
| Total | 212 | |
Head and Drive Dimensions
Reference dimensions for the DIN 7981 C Z pan Pozi AB self tapping pattern. All dimensions are in millimetres.
| Screw Size | Head Diameter | Head Height | Pozi Bit Size |
|---|---|---|---|
| No.10 – 4.8mm | 9.14–9.50 | 3.25–3.55 | PZ2 |
| No.12 – 5.5mm | 10.37–10.80 | 3.65–3.95 | PZ3 |
| No.14 – 6.3mm | 12.07–12.50 | 4.25–4.55 | PZ3 |
Packaging Options

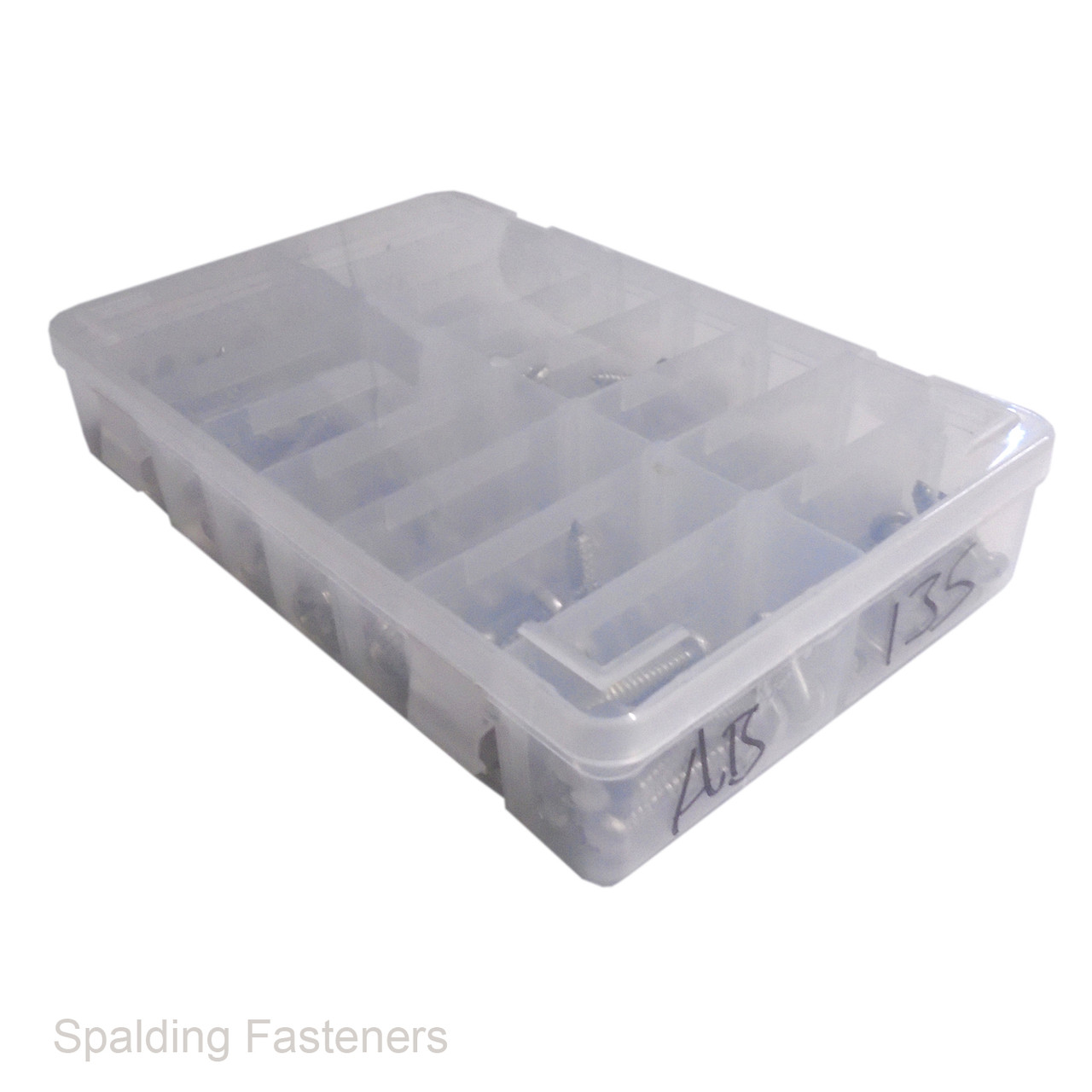

- Boxed set: Clear plastic storage box with a clip-down lid.
- Refill pack: Supplied without a storage box.
Fitting and Measuring
Measure screw length from underneath the pan head to the tip. The head sits above the fixing surface.
Self tapping screws form their mating thread in a suitable pilot hole. Select the pilot hole for the screw diameter, material and thickness, and use the correct Pozi bit to avoid damaging the recess.
