Product Description
Assorted M5, M6 & M8 A2 Stainless Steel Hex Head Set Screws & Full Nuts
A selection of fully threaded hexagon head set screws with matching full nuts, covering ten size and length combinations. Each assortment contains 100 screw-and-nut pairs, giving 200 individual components.
Specifications
- Material: A2 stainless steel.
- Thread: standard metric coarse.
- Screw type: fully threaded hexagon head set screw.
- Nut type: hexagon full nut.
- Thread sizes: M5, M6 and M8.
Thread and Head Dimensions
Reference dimensions for the DIN 933 hexagon head set screw pattern. All measurements are in millimetres.
| Thread Size | Thread Pitch | Spanner Size | Screw Head Height |
|---|---|---|---|
| M5 | 0.80 | 8 | 3.26–3.74 |
| M6 | 1.00 | 10 | 3.76–4.24 |
| M8 | 1.25 | 13 | 5.06–5.54 |

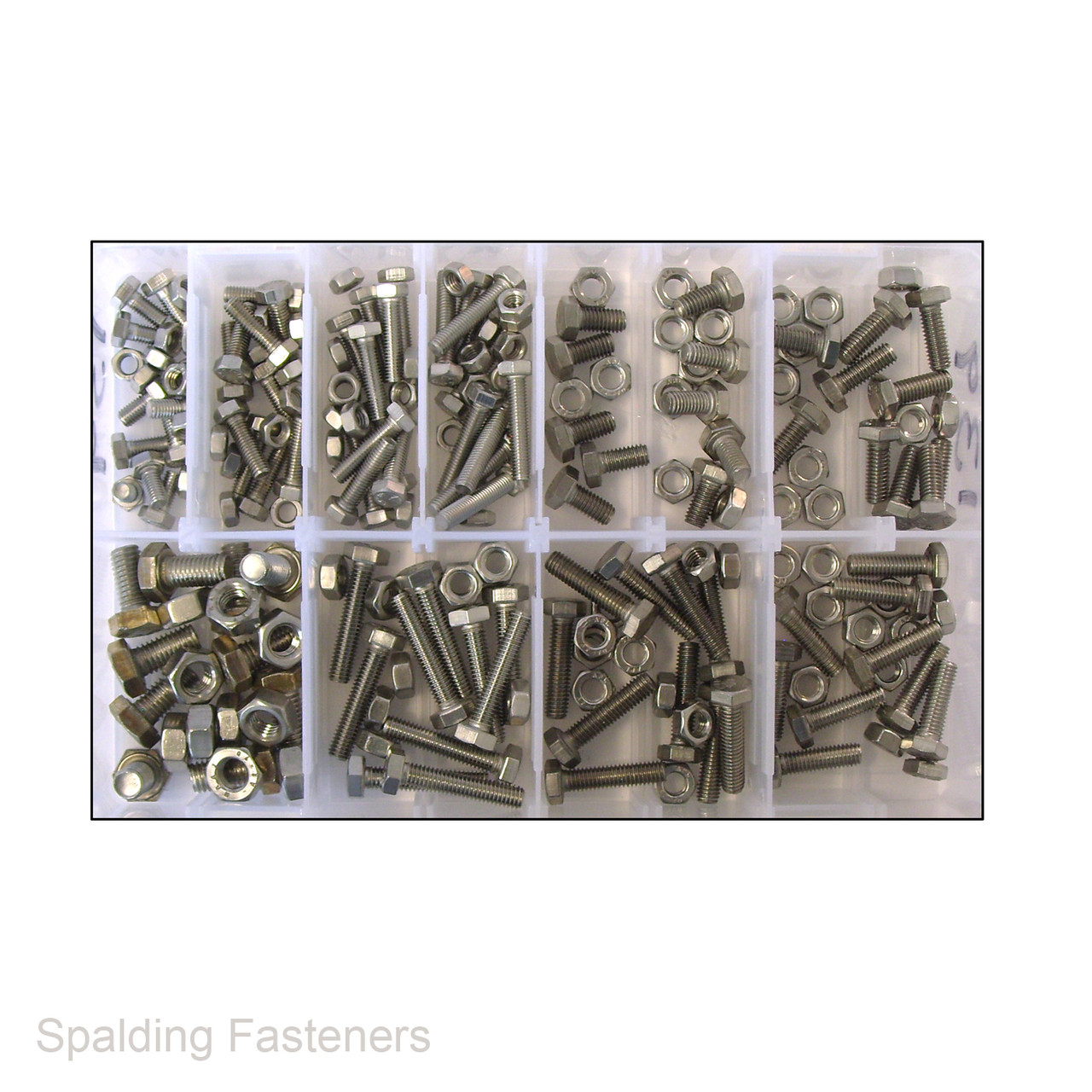

Assortment Contents
| Screw Size | Screw Quantity | Matching Full Nuts |
|---|---|---|
| M5 × 10mm | 10 | 10 × M5 |
| M5 × 16mm | 10 | 10 × M5 |
| M5 × 20mm | 10 | 10 × M5 |
| M5 × 25mm | 10 | 10 × M5 |
| M6 × 12mm | 10 | 10 × M6 |
| M6 × 16mm | 10 | 10 × M6 |
| M6 × 20mm | 10 | 10 × M6 |
| M6 × 25mm | 10 | 10 × M6 |
| M6 × 30mm | 10 | 10 × M6 |
| M8 × 16mm | 10 | 10 × M8 |
| Total | 100 screws | 100 nuts |
Packaging Options

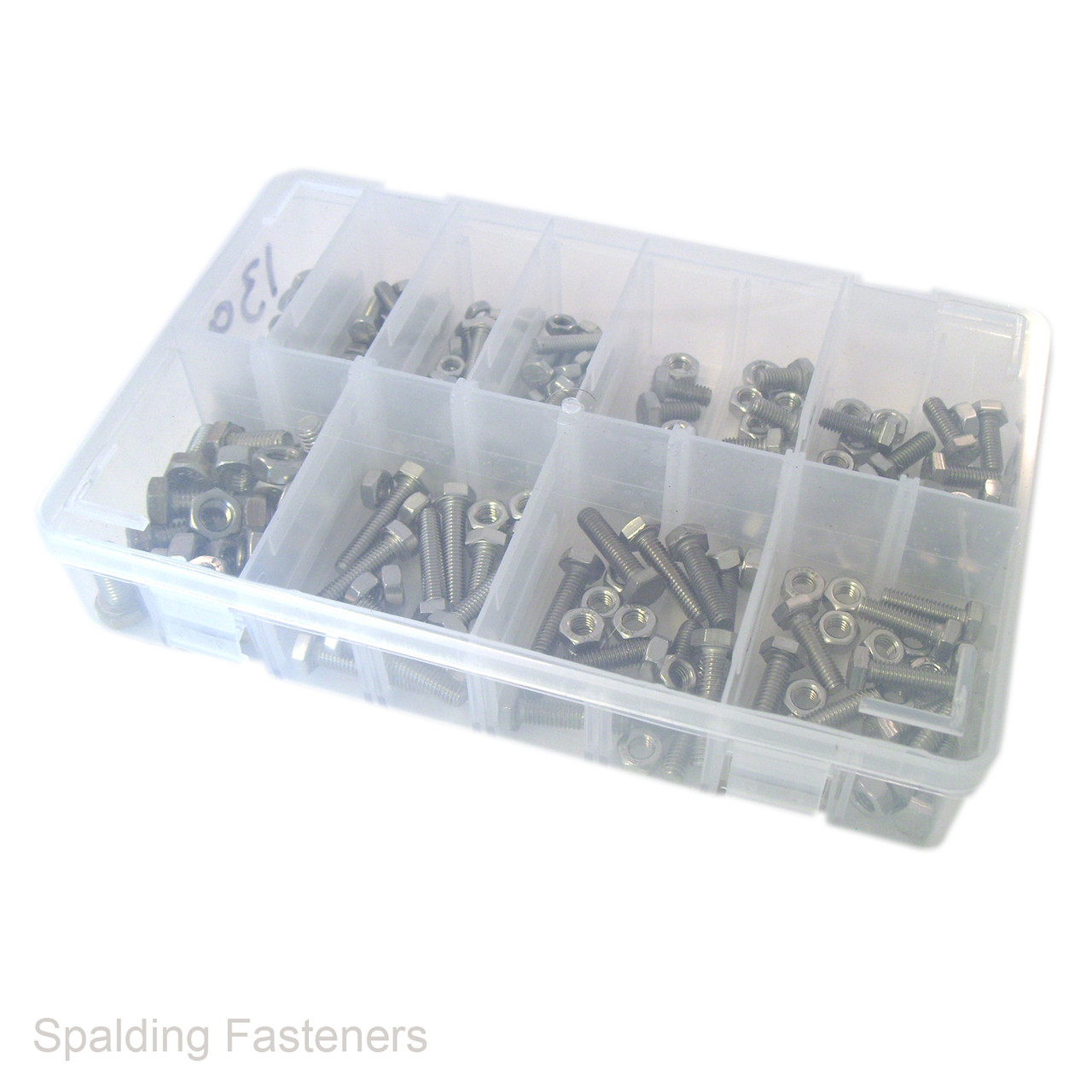

- Boxed assortment: supplied in a divided plastic storage box with a clip-down lid.
- Refill pack: supplied without a storage box.
Selecting and Fitting
Screw length is measured from beneath the head to the end of the screw. Choose a length that allows full engagement through the nut, accounting for the thickness of the joined parts and any washers. Start the nut by hand to check alignment before tightening with the appropriate spanner or socket.
Browse our nuts and washers, or see our thread size guide for help identifying compatible threads.
