Product Description
108 Assorted M8 A2 Stainless Steel Hex Flange Set Screws, Nuts & Washers
An M8 fastener assortment containing four lengths of fully threaded hexagon flange set screws, flange full nuts and repair washers. This 108-piece selection provides components for workshop assembly, maintenance and repairs.
Specifications
- Material: A2 stainless steel.
- Thread size: M8.
- Thread type: standard metric coarse.
- Thread pitch: 1.25mm.

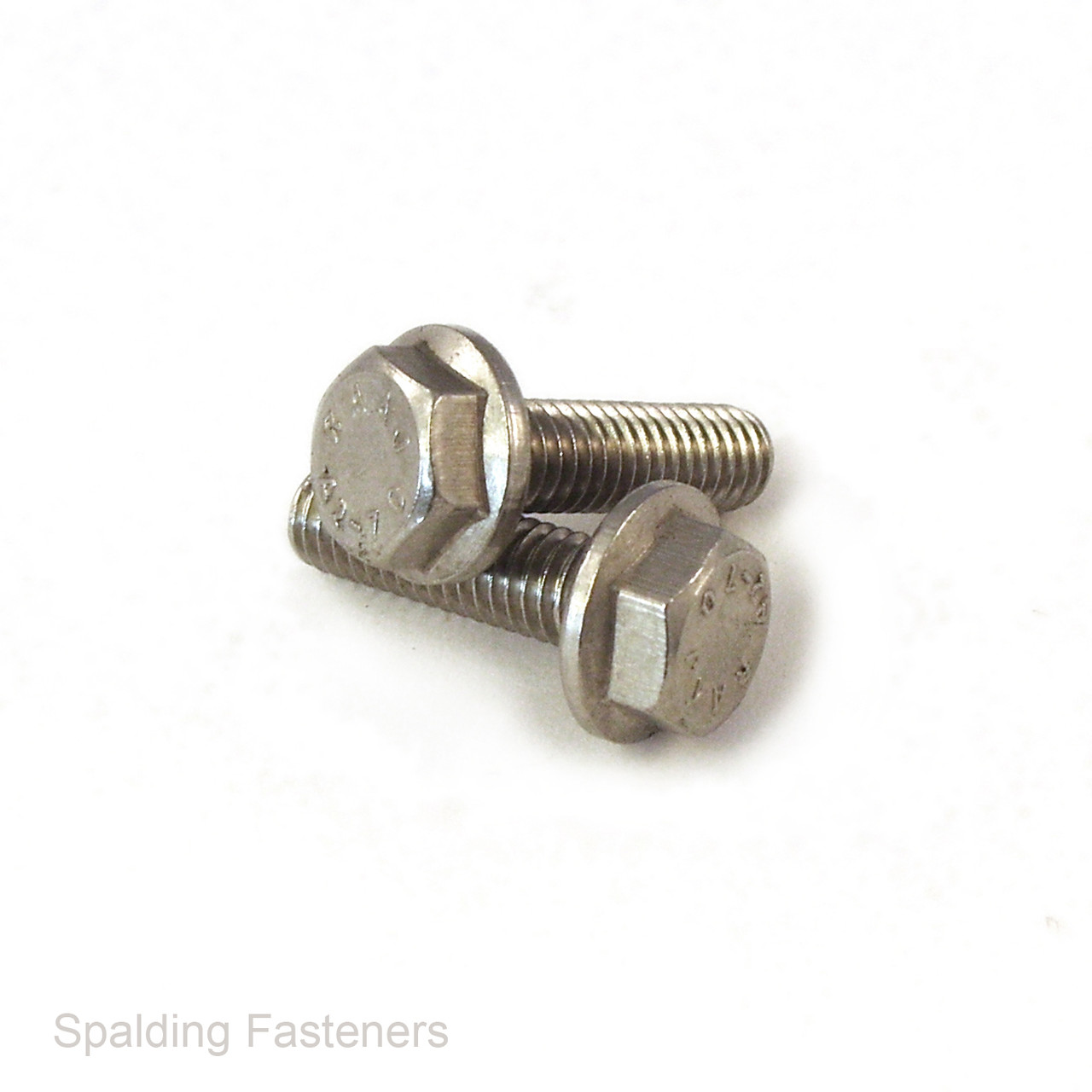

- Screws: fully threaded hexagon flange head.

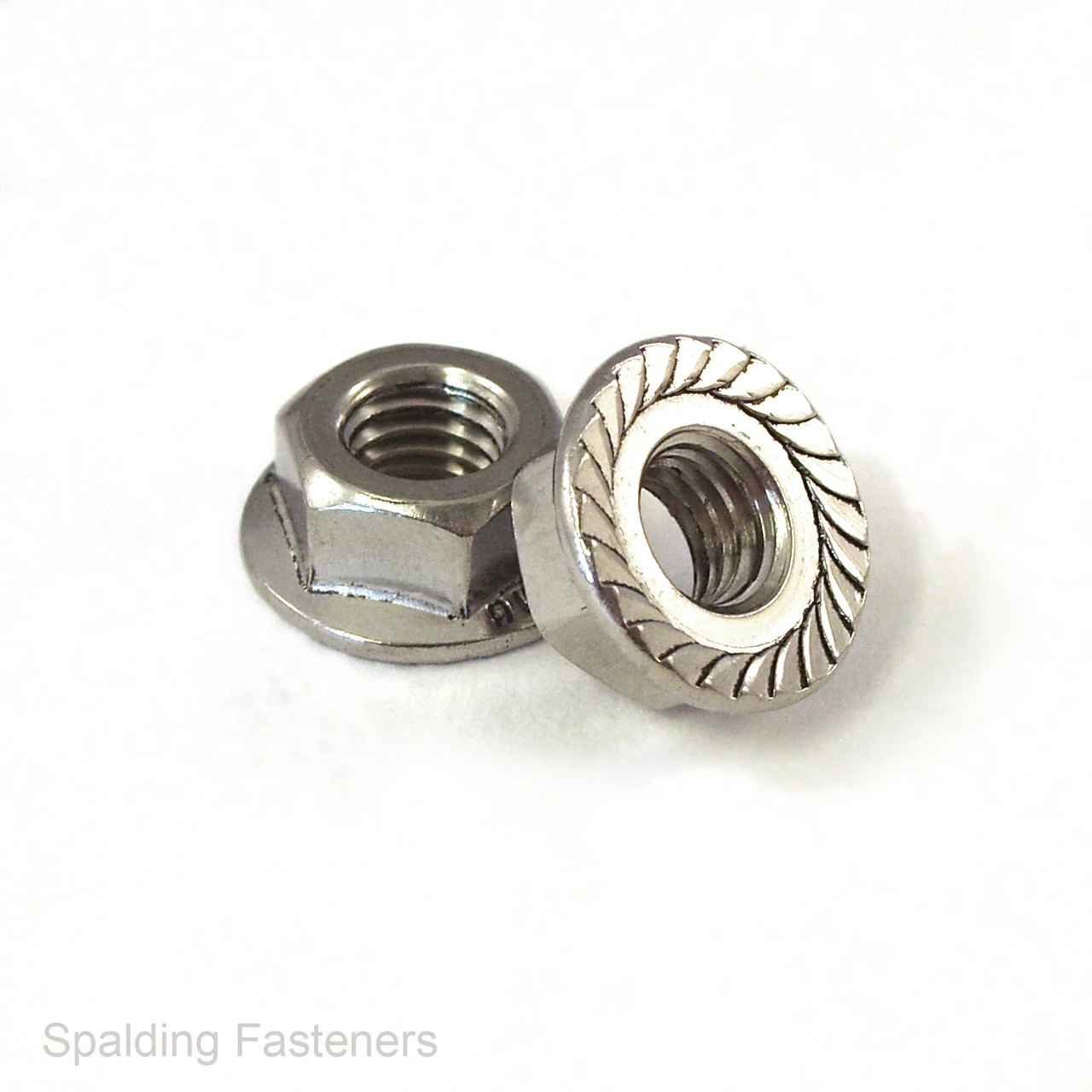

- Nuts: M8 hexagon flange full nuts.

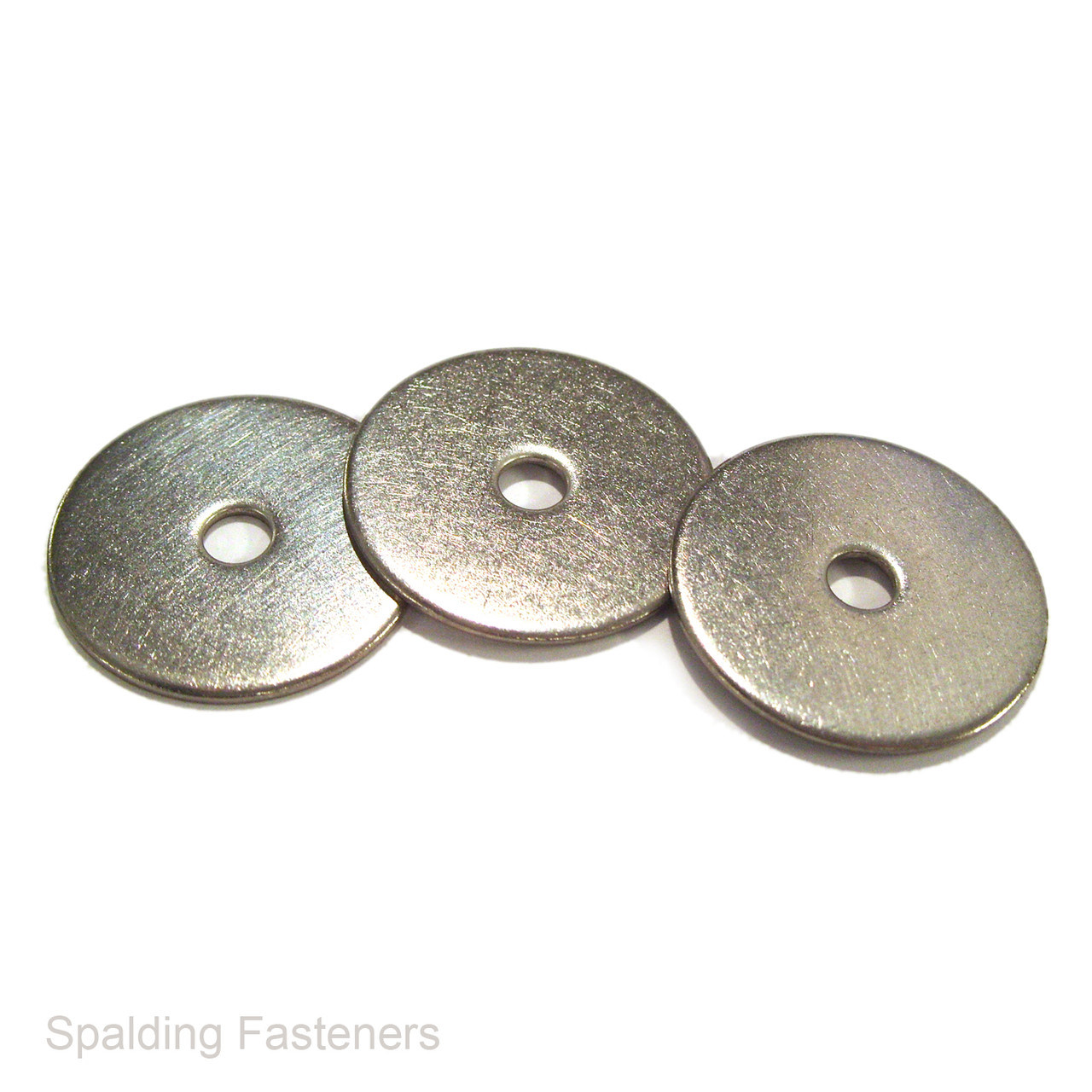

- Washers: M8 repair washers with a 25mm outside diameter.
- Total quantity: 108 components.
Screw Head Dimensions
Reference dimensions for the DIN 6921 hexagon flange head pattern. All measurements are in millimetres.
| Measurement | Size |
|---|---|
| Spanner size | 13 |
| Maximum flange diameter | 18 |
| Maximum overall head height | 8.1 |

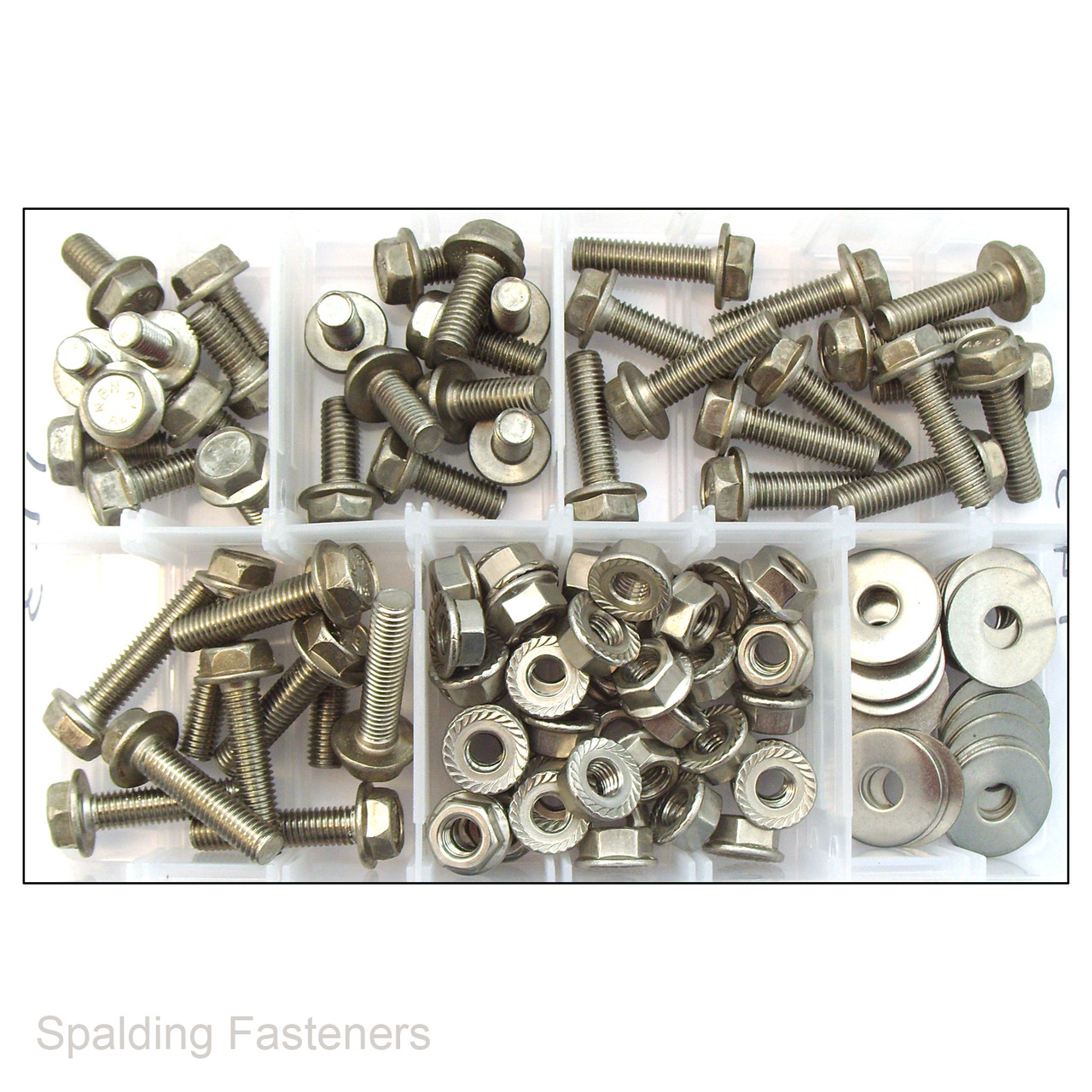

Assortment Contents
| Component | Size | Quantity |
|---|---|---|
| Hex flange set screws | M8 × 16mm | 10 |
| Hex flange set screws | M8 × 20mm | 10 |
| Hex flange set screws | M8 × 30mm | 14 |
| Hex flange set screws | M8 × 35mm | 10 |
| Flange full nuts | M8 | 42 |
| Repair washers | M8 × 25mm outside diameter | 22 |
| Total | 108 | |
Packaging Options

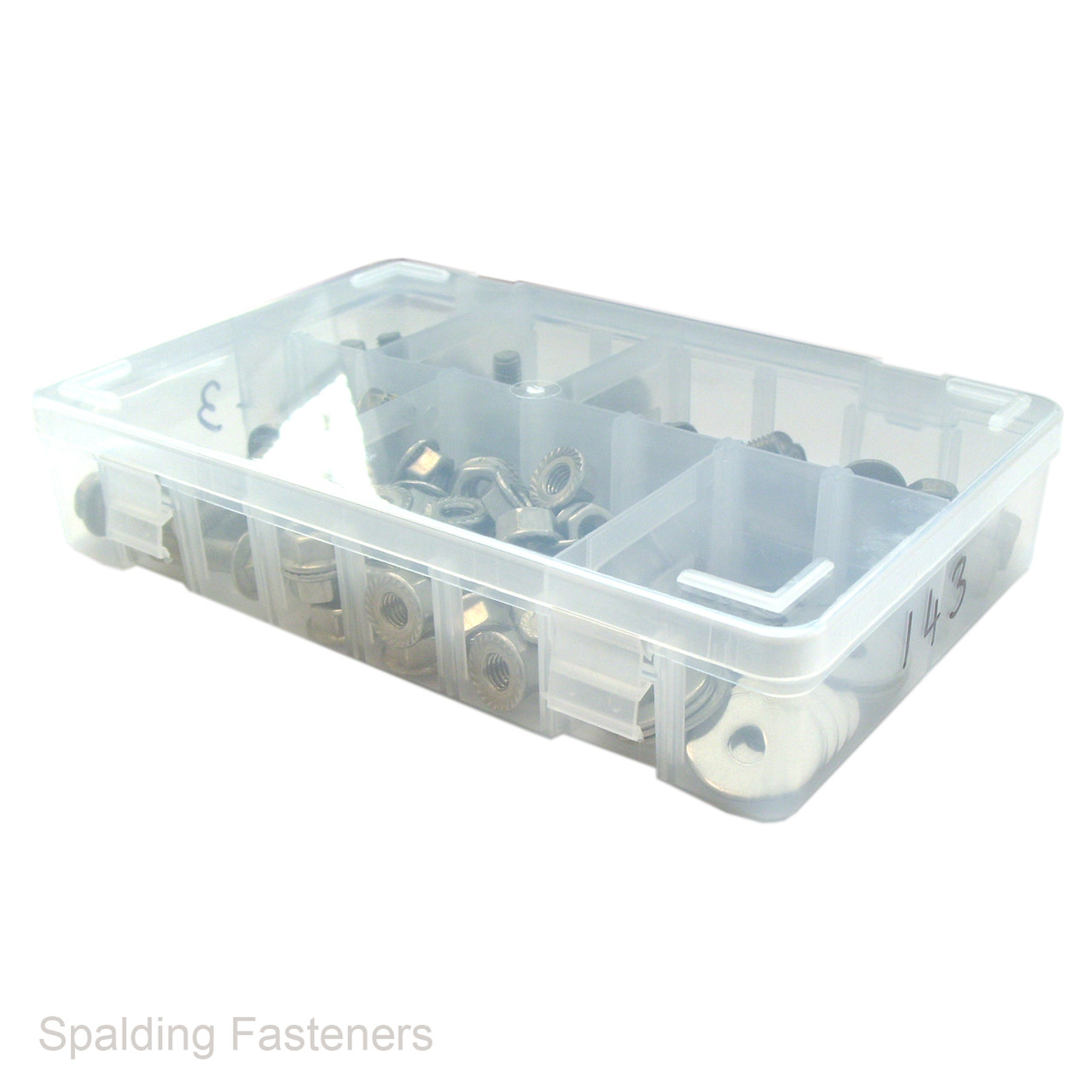

- Boxed set: supplied in a plastic storage case with a clip-down lid.
- Refill pack: supplied without a storage box.
Selecting and Fitting
Screw length is measured from beneath the flange to the end of the screw. Choose a length that accommodates the joined parts and any washer, allowing full engagement through the nut. Start the nut by hand before tightening with a correctly fitting spanner or socket.
