Product Description
160 Assorted M6 A2 Stainless Steel Hex Flange Bolts, Nuts & Washers
An M6 fastener assortment containing five lengths of hexagon flange head bolts, matching flange nuts and repair washers. This 160-piece selection provides a useful range of components for workshop assembly, maintenance and repairs.
Specifications
- Material: A2 stainless steel.
- Thread size: M6.
- Thread type: standard metric coarse.
- Thread pitch: 1.0mm.
- Bolt head: hexagon with integral flange.
- Nuts: M6 flange nuts.
- Washers: M6 repair washers with a 20mm outside diameter.
- Total quantity: 160 components.

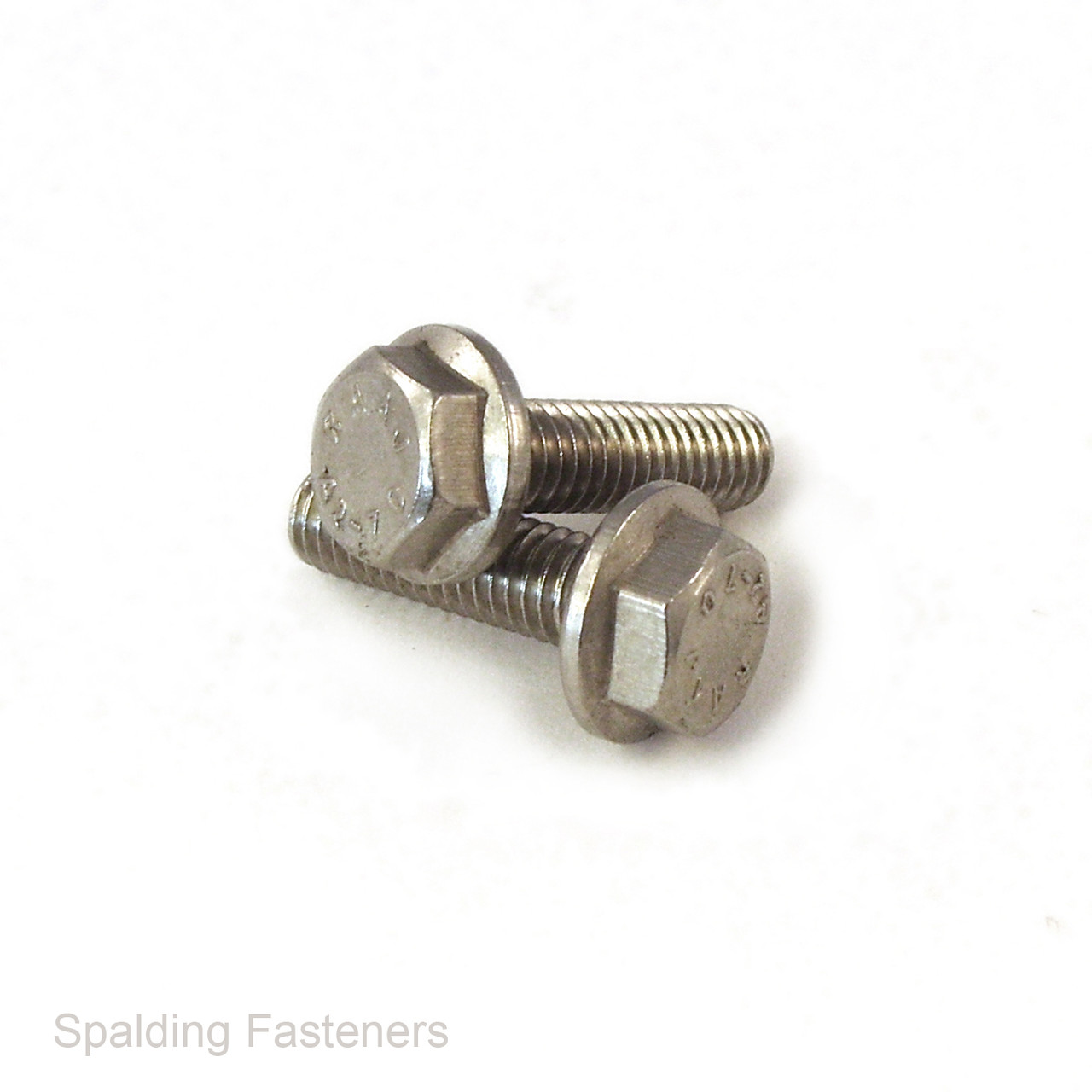

Bolt Head Dimensions
Reference dimensions for the DIN 6921 hexagon flange bolt pattern. All measurements are in millimetres.
| Measurement | Size |
|---|---|
| Spanner size | 10 |
| Maximum flange diameter | 14.2 |
| Maximum overall head height | 6.6 |

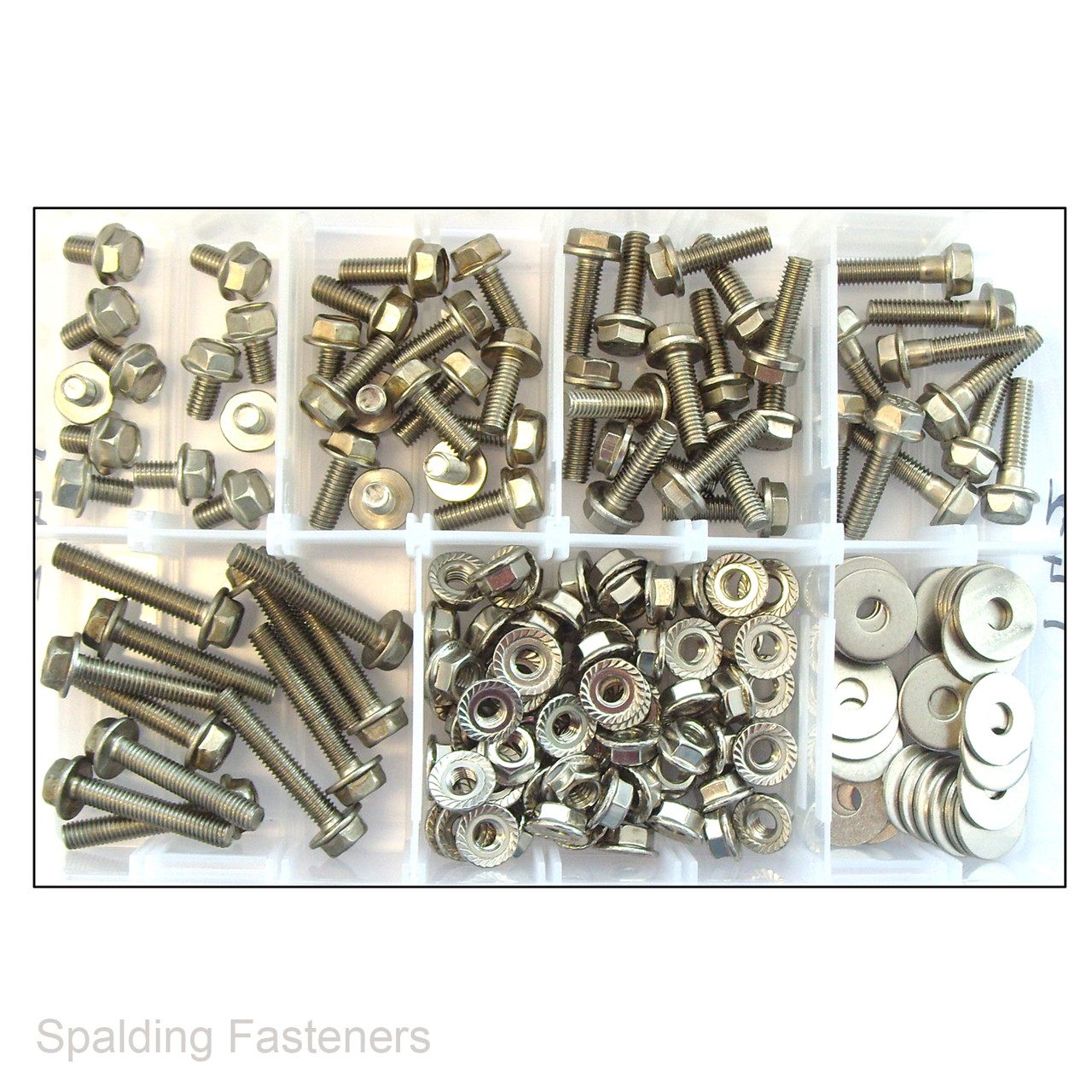

Assortment Contents
| Component | Size | Quantity |
|---|---|---|
| Hex flange bolts | M6 × 10mm | 12 |
| Hex flange bolts | M6 × 16mm | 15 |
| Hex flange bolts | M6 × 20mm | 15 |
| Hex flange bolts | M6 × 25mm | 10 |
| Hex flange bolts | M6 × 35mm | 12 |
| Flange nuts | M6 | 64 |
| Repair washers | M6 × 20mm outside diameter | 32 |
| Total | 160 | |
Packaging Options
- Boxed set: supplied in a plastic storage case with a clip-down lid.
- Refill pack: supplied without a storage box.
Selecting and Fitting
Bolt length is measured from beneath the flange to the end of the bolt. Choose a length that accommodates the joined parts and any washer, allowing full engagement through the nut. Start the nut by hand before tightening with a correctly fitting spanner or socket.
